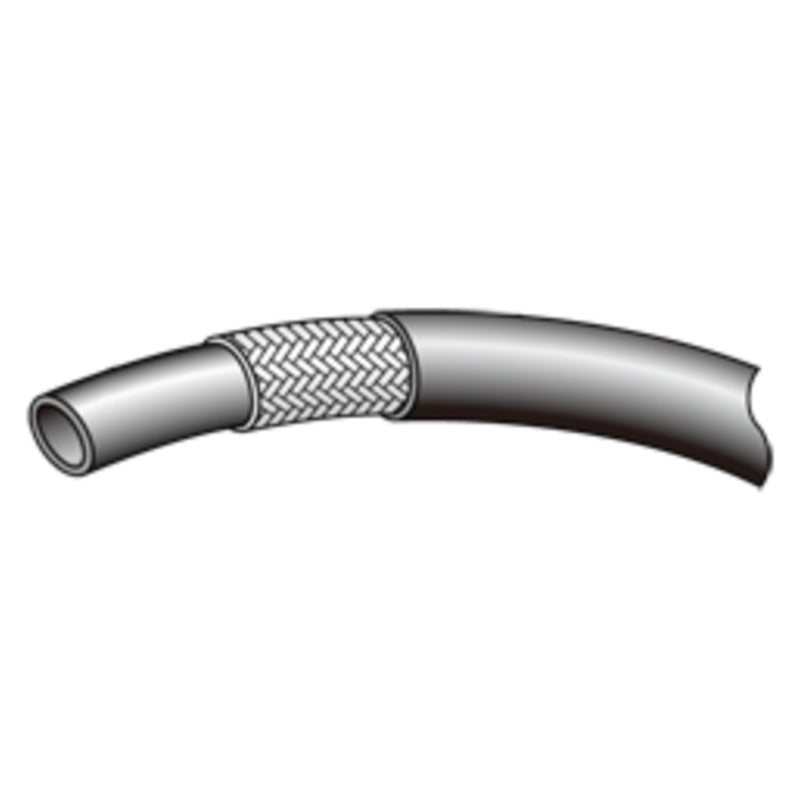

Nitta Hose 3130-02 1/8 inch ID Hydraulic Hose
  • Nitta Hose 3130-02 1/8 inch ID Hydraulic Hose
Hydraulic Hose Assembly : 1/8 inside Diameter, JIS Parallel Pipe 30° Flared Swivel Female X Female, 2900Psi

Hydraulic Hose Assembly : 1/8 inside Diameter, JIS Parallel Pipe 30° Flared Swivel Female X Female, 2900Psi

Brand: Hydraulic Hose
SKU: hose-18-inch-id
Availability: In Stock (ships from Chicago in 1-2 business days)
$0.31
Nitta Hose 3130-02 1/8 inch ID Hydraulic Hose
Hydraulic Hose Assembly : 1/8 inside Diameter, JIS Parallel Pipe 30° Flared Swivel Female X Female, 2900Psi
$0.31

Nitta 3130 Series (3130-02)

Excellent oil and chemical durability

Reusable Coupling can be used


Inner tube

Nylon Core Tube

Reinforcement

Synthetic Fiber ReinForcement Braid

Outer cover

Polyurethane Cover

Appropriate fluid

mineral general operating oil

Range of temperature


-40? ~ +100? (-40? ~ + 212?)

Hose Specification

Part No. Size

Max Operating

(Mpa)

Max Operating

(Psi)

Max Impact

Press (Mpa)

Min Destruction

Press(Mpa)

Min Bending

Radius (mm)

Weight

(g/m)
I.D O.D
inch mm mm
3130-02 1/8 3.6 8.3 20.0 2900 25 72 15 45

Fitting Specification (SSE-PF-02)

Nitta-Fitting

Brand Hydraulic Hose
Availability In Stock
