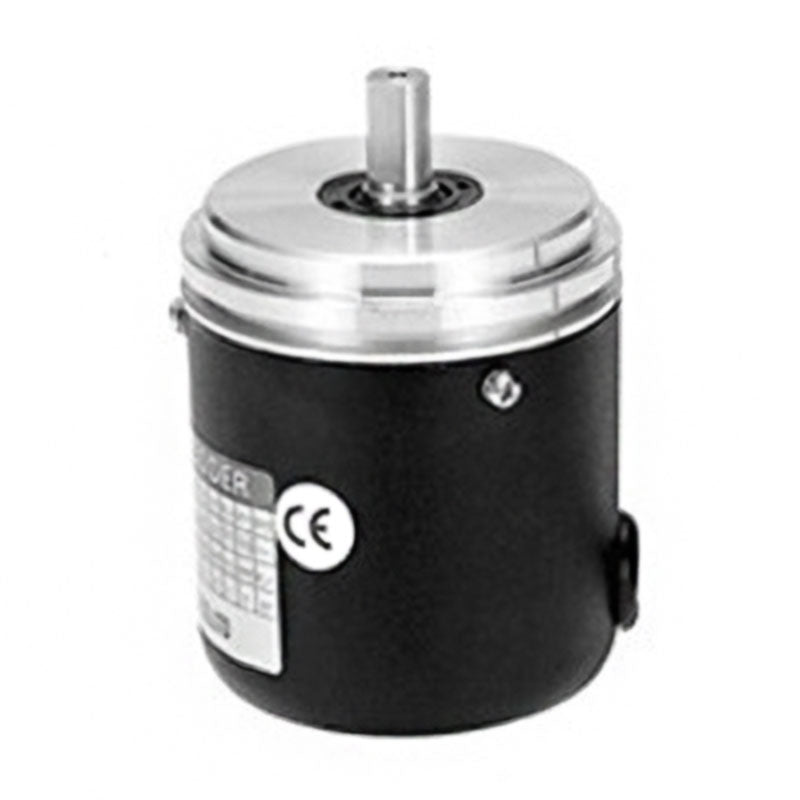

Kwangwoo Rotary Encoder RAA-60-0008PDG
Brand: Kwangwoo
SKU:
702RAA6008KG
Availability:
In Stock (ships from Chicago in 1-2 business days)
$680.00
Kwangwoo Rotary Encoder RAA-60-0008PDG
$680.00
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | |
|---|---|
| Resolution | 8 / 10 /12 P/R |
| Supply Voltage | DC 24V |
| Current Consumption | 80mA Max. |
| Response Frequency | 20 kHz Max. |
| Rising Time | 3 ?s Max. |
| Falling Time | 3 &mug;s Max. |
| Mechanical Specifications | |
|---|---|
| Max. Rotating Speed | 5,000 RPM |
| Starting Torque | 200gf?cm2 Max. at 25?C |
| Moment of Inertia | 30gf?cm Max. |
| Allowable Shaft Load - Radial | 5kg Max. |
| Allowable Shaft Load - Axial | 5kg Max. |
| Vibration Resistance | 10~55Hz / 1.5mm |
| Shock Resistance | 50G/11m sec |
| Operation Temperature Range | -10?C - 60?C |
| Storage Temperature Range | -20?C - 80?C |
Rotary Encoder Kwangwoo 08 Station
Options
Brand
Kwangwoo
Availability
In Stock
Estimated Delivery
21 Days
