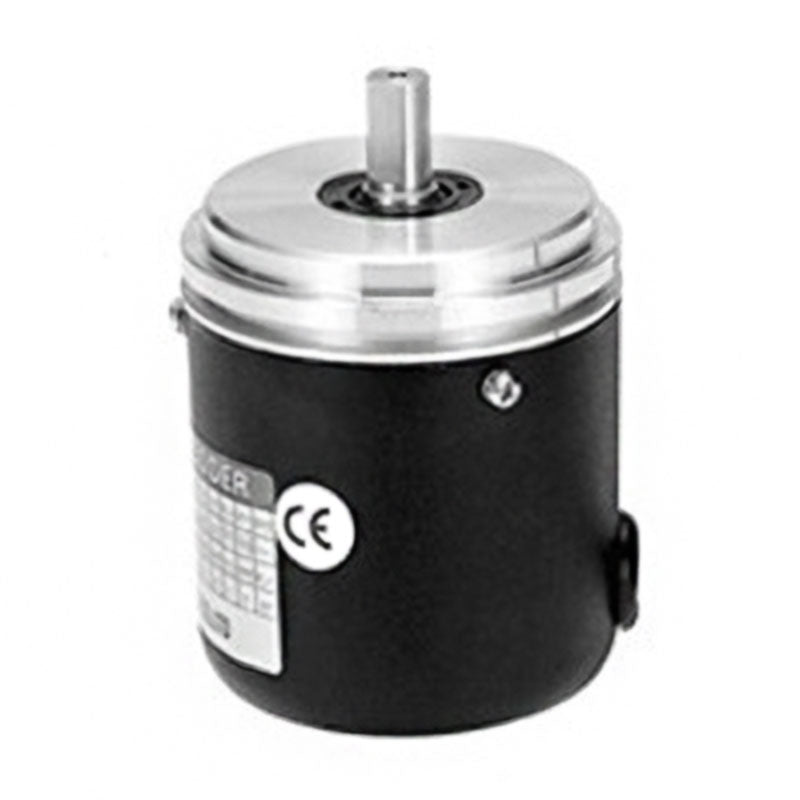

Kwangwoo Rotary Encoder RAA-60-0010PDG
Brand: Kwangwoo
SKU:
702RAA6002KW
Availability:
In Stock (ships from Chicago in 1-2 business days)
$680.00
Kwangwoo Rotary Encoder RAA-60-0010PDG
$680.00
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | |
| Resolution | 8/10/12 P/R |
| Supply Voltage | DC+24V |
| Current Consumption | 80 mA Max. |
| Max. Response Frequency | 20 kHz Max. |
| Rising Time | 3 µs Max. |
| Falling Time | 3 µs Max. |
| Mechanical Specifications | ||
| Maximum Rotating Speed | 5,000 RPM | |
| Starting Torque | 200gf·cm Max. at 25°C | |
| Moment of Inertia | 30gf·sq cm Max. | |
| Allowable Shaft Load | Radial | 5kg Max. |
| Axial | 5kg Max. | |
| Vibration Resistance | 10∼55Hz / 1.5mm | |
| Shock Resistance | 50G/11msec | |
| Operation Temp. Range | -10°C ∼ +60°C | |
| Storage Temp. Range | -20°C ∼ +80°C | |
Rotary Encoder Kwangwoo 12 Station
Options
Brand
Kwangwoo
Availability
In Stock
Estimated Delivery
21 Days
