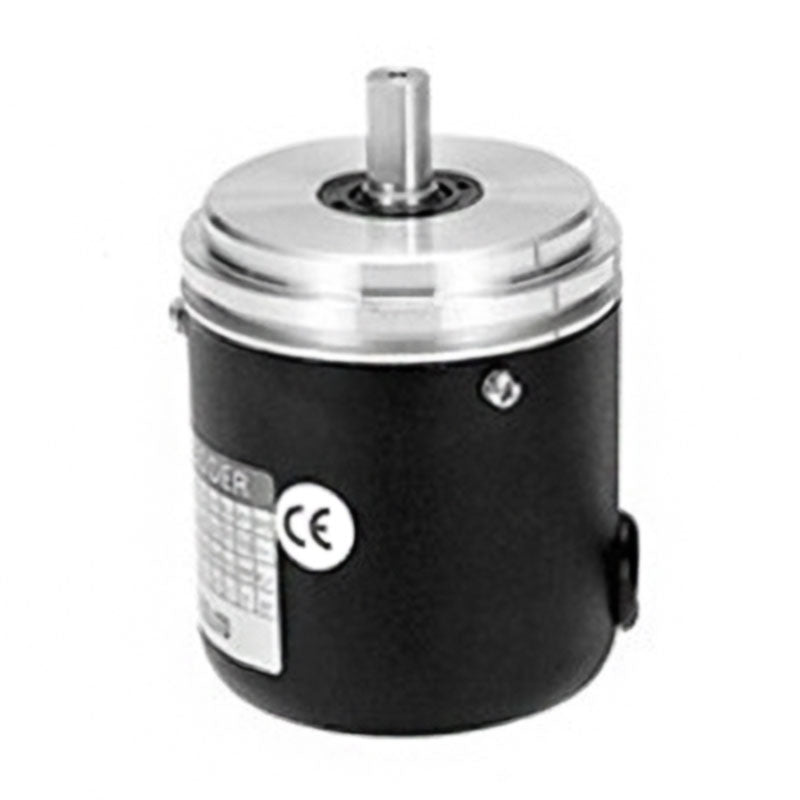

Kwangwoo Rotary Encoder RAA-60-0012NHC
Brand: Kwangwoo
SKU:
RAA-60-0012NHC
Availability:
In Stock (ships from Chicago in 1-2 business days)
$750.00
Kwangwoo Rotary Encoder RAA-60-0012NHC
$750.00
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | ||
| Resolution | 8/10/12 degrees | |
| Supply Voltage | PNP Open Collector | VL = 0.5V, VH = 20V (DC+24V) |
| Current Consumption | PNP NPN | 120 mA Max |
| Max. Response Frequency | 20 kHz Max. | |
| Rising/Falling Time | PNP Open Collector | 3μs |
| Mechanical Specifications | ||
| Maximum Rotating Speed | 5,000 RPM | |
| Starting Torque | 200 gf·cm | |
| Moment of Inertia | 30 gf·cm | |
| Allowable Shaft Load | Radial | 5kg Max |
| Axial | 5kg Max | |
| Vibration Resistance | 10∼55Hz / 1.5mm | |
| Shock Resistance | 50G 11msec | |
| Operation Temp. Range | -10°C ~ +70°C | |
| Storage Temp. Range | -20°C ~ +85°C | |
| Protection | IP64 | |
| Weight | 550g | |
Connection Table
| Color | NPN 8 Degrees | NPN 10 Degrees 1 Type | NPN 12 Degrees 1 Type | NPN 12 Degrees 1 Type |
| CW/BCD, CCW/BCD | CCW/BCD | CW/BIN | CCW/BCD | |
| Violet | Vcc | Vcc | Vcc | Vcc |
| White | GND | GND | GND | GND |
| Black | TP1 | TP1 | TP1 | TP1 |
| Gray | TP2 | /TP1 | TP3 | TP2 |
| Brown | DATA 1 | DATA 1 | DATA 1 | DATA 1 |
| Red | DATA 2 | DATA 2 | DATA 2 | DATA 2 |
| Orange | DATA 4 | DATA 4 | DATA 4 | DATA 4 |
| Yellow | DATA 8 | DATA 8 | DATA 8 | DATA 8 |
| Green | NC | DATA 10 | DATA 10 | |
| Blue | Even Parity | Even Parity | TP2 | Even Parity |
