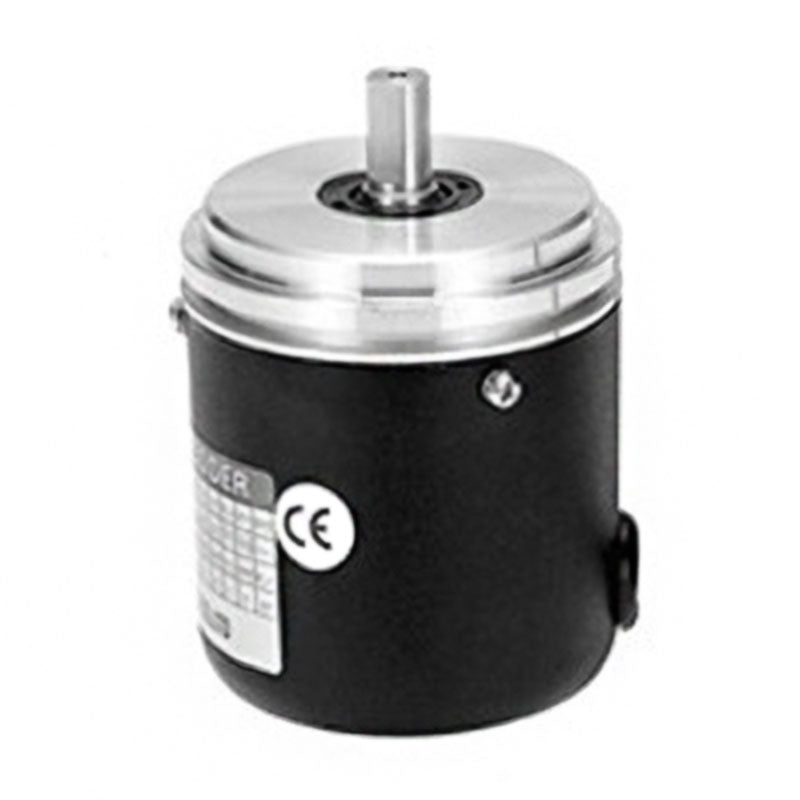

Kwangwoo Rotary Encoder RAA-60-0012PDS
Brand: Kwangwoo
SKU:
RAA-60-0012PDS
Availability:
In Stock (ships from Chicago in 1-2 business days)
$730.00
Kwangwoo Rotary Encoder RAA-60-0012PDS
$730.00
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | ||
| Resolution | 8/10/12 degrees | |
| Supply Voltage | PNP Open Collector | VL = 0.5V, VH = 2.7V (DC +5V) |
| Current Consumption | PNP NPN | 120 mA Max |
| Max. Response Frequency | 20 kHz Max. | |
| Rising/Falling Time | PNP Open Collector | 3μs |
| Mechanical Specifications | ||
| Maximum Rotating Speed | 5,000 RPM | |
| Starting Torque | 200 gf·cm | |
| Moment of Inertia | 30 gf·cm | |
| Allowable Shaft Load | Radial | 5kg Max |
| Axial | 5kg Max | |
| Vibration Resistance | 10∼55Hz / 1.5mm | |
| Shock Resistance | 50G 11msec | |
| Operation Temp. Range | -10°C ~ +70°C | |
| Storage Temp. Range | -20°C ~ +85°C | |
| Protection | IP64 | |
| Weight | 580g | |
Connection Table
|
Color |
PNP (8 Degrees) |
PNP (10 Degrees) |
PNP 12 Degrees |
|
Red |
Vcc |
Vcc |
Vcc |
|
Black |
GND |
GND |
GND |
|
Gray |
TP |
TP1 |
TP1 |
|
White |
STROBE |
TP2 |
STROBE |
|
Brown |
DATA 1 |
DATA 1 |
DATA 1 |
|
Orange |
DATA 2 |
DATA 2 |
DATA 2 |
|
Yellow |
DATA 4 |
DATA 4 |
DATA 4 |
|
Green |
PARITY 8 |
DATA 8 |
DATA 8 |
|
Blue |
NC |
NC |
DATA 10 |
|
Purple |
NC |
NC |
NC |
Product Drawing
Brand
Kwangwoo
Availability
In Stock
Estimated Delivery
21 Days
