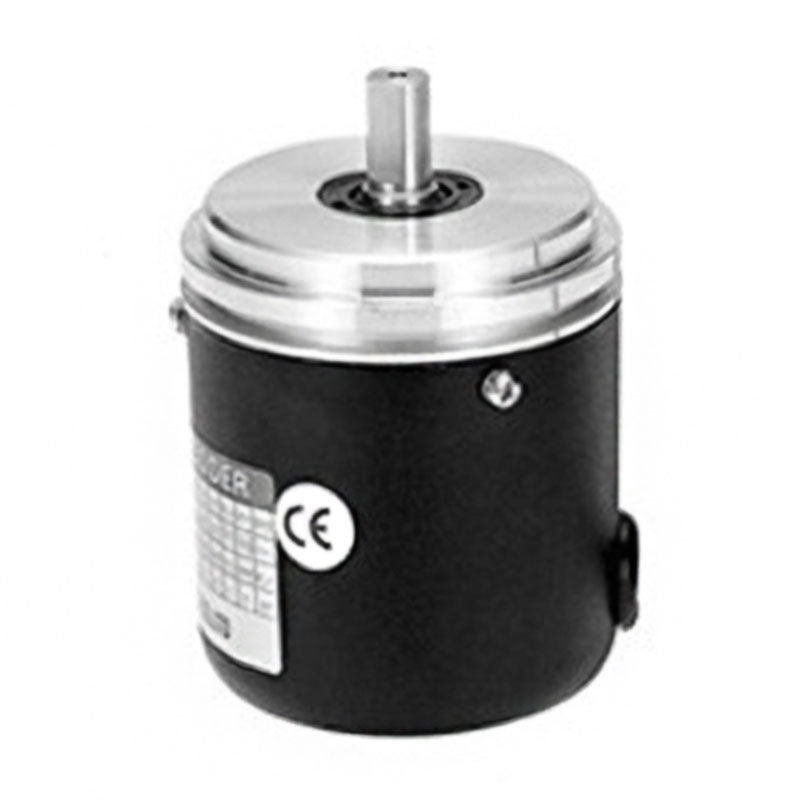

Kwangwoo Rotary Encoder RAA-60-0016PHD
Brand: Kwangwoo
SKU:
RAA-60-0016PHD
Availability:
In Stock (ships from Chicago in 1-2 business days)
$800.00
Kwangwoo Rotary Encoder RAA-60-0016PHD
$800.00
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | ||
| Resolution | 8/10/16 degrees | |
| Supply Voltage | PNP Open Collector | VL = 0.5V, VH = 20V (DC+24V) |
| Current Consumption | PNP NPN | 120 mA Max |
| Max. Response Frequency | 20 kHz Max. | |
| Rising/Falling Time | PNP Open Collector | 3?s |
| Mechanical Specifications | ||
| Maximum Rotating Speed | 5,000 RPM | |
| Starting Torque | 200 gf?cm | |
| Allowable Shaft Load | Radial | 5kg Max |
| Axial | 5kg Max | |
| Vibration Resistance | 10?55Hz / 1.5mm | |
| Shock Resistance | 50G 11msec | |
| Operation Temp. Range | -10?C ~ +70?C | |
| Storage Temp. Range | -20?C ~ +85?C | |
| Protection | IP64 | |
| Weight | 550g | |
Connection Table
| Color | PNP (8 degrees) | PNP (12 degrees) | PNP (16 degrees) |
| VIOLET | Vcc | Vcc | Vcc |
| WHITE | GND | GND | GND |
| BROWN | TP | TP1 | TP1 |
| BLUE | /TP1 | /TP1 | /TP1 |
| GRAY | /TP2 | /TP2 | /TP2 |
| RED | DATA 1 | DATA 1 | DATA 1 |
| ORANGE | DATA 2 | DATA 2 | DATA 2 |
| YELLOW | DATA 4 | DATA 4 | DATA 4 |
| GREEN | DATA 8 | DATA 8 | DATA 8 |
| BLACK | EVEN PARITY | EVEN PARITY | EVEN PARITY |
Product Drawing
