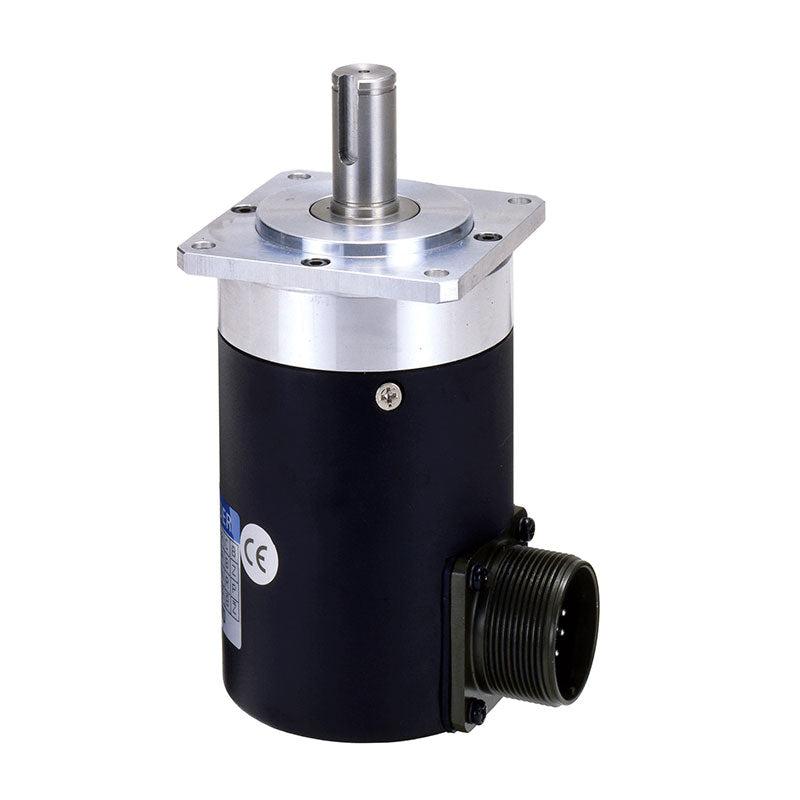

Kwangwoo Rotary Encoder RIB-60-1024VLJ
Brand: Kwangwoo
SKU:
RIB-60-1024VLJ
Availability:
In Stock (ships from Chicago in 1-2 business days)
$1,300.00
Kwangwoo Rotary Encoder RIB-60-1024VLJ
$1,300.00
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | ||
| Resolution | 1024 | |
| Supply Voltage | Line Drive | VL = 0.5V, VH = 2.7V (DC+5V) |
| Current Consumption | 150 mA Max | |
| Max. Response Frequency | 137 kHz Max. | |
| Rising/Falling Time | Line Drive | 0.2?s |
| Mechanical Specifications | ||
| Maximum Rotating Speed | 8,000 RPM | |
| Starting Torque | 200 gf?cm | |
| Moment of Inertia | 250 gf?cm | |
| Allowable Shaft Load | Radial | 5kg Max |
| Axial | 5kg Max | |
| Vibration Resistance | 10?55Hz / 1.5mm | |
| Shock Resistance | 50G / 11msec | |
| Operation Temp. Range | -10?C ~ +70?C | |
| Storage Temp. Range | -20?C ~ +85?C | |
| Protection | IP50 | |
| Weight | 750g | |
Connection Table
| Color | Connector Pin | Line Drive |
| Red | H | Vcc |
| Black | K, M | GND |
| Green | A | A |
| White | C | B |
| Yellow | B | Z |
| Blue | N | /A |
| Pink | R | /B |
| Orange | P | /Z |
| Shield | E, L , T | F/G |
Product Drawing
