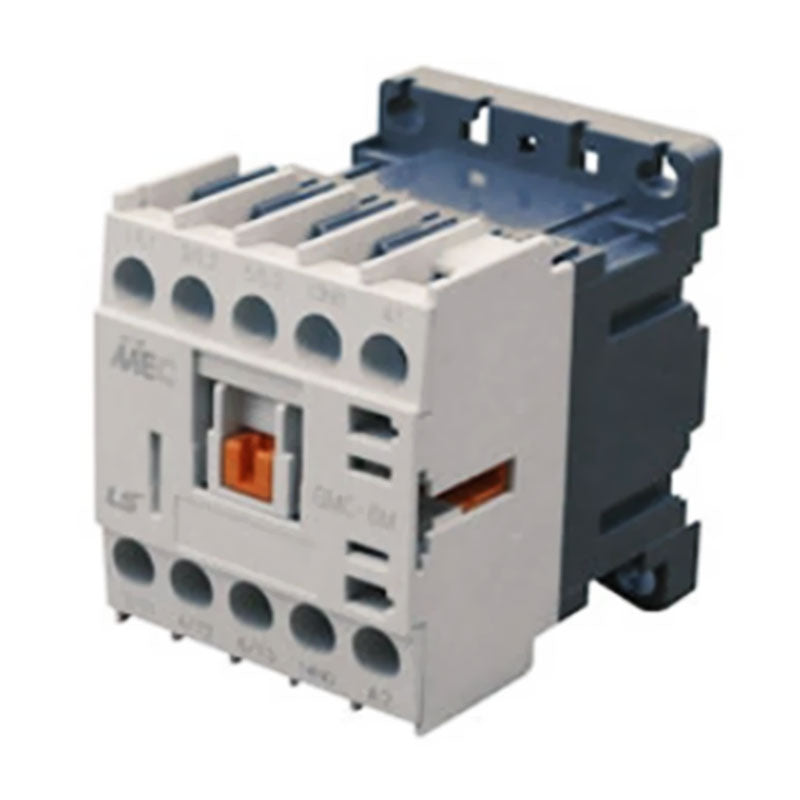

LS Mini Circuit GMD-16M-DC24V
Brand: LS Electric
SKU:
C54318-1
Availability:
In Stock (ships from Chicago in 1-2 business days)
$90.00
LS Mini Circuit GMD-16M-DC24V
$90.00
Product Description
- ? Due to a low coil VA, it can be driven directly from a PLC.
- ? This CE Marking compliant product has passed certification testing.
- ? Terminal cover is standard equipment.
- ? This is a UL-compliant product for your peace of mind.
- ? Enables both screw mounting and DIN rail mounting.
Product Specifications
| Specifications | ||
|---|---|---|
| Motor Capacity / Thermal Nominal 220 VAC | 1.5 kW/7 A | |
| Auxiliary Contact | 1a | |
| Dimension Length | 58 mm | |
| Dimension Thickness | 69 mm | |
| Coil Voltage | 24 VDC | |
| Coil Current | 0.05 A | |
| Representative Standards | CE | |
| Dimension Width | 45 mm | |
| RoHS | 6 | |
| Frame Size | 16 AF | |
| Motor Capacity AC3 | 200~240V | 4 kW 15 A |
| 380~440V | 7.5 kW 16 A | |
| 500~550V | 5.5 kW 9 A | |
| 690V | 4 kW 5 A | |
| Model | GMD-16M-DC24V | |
Product Drawing
