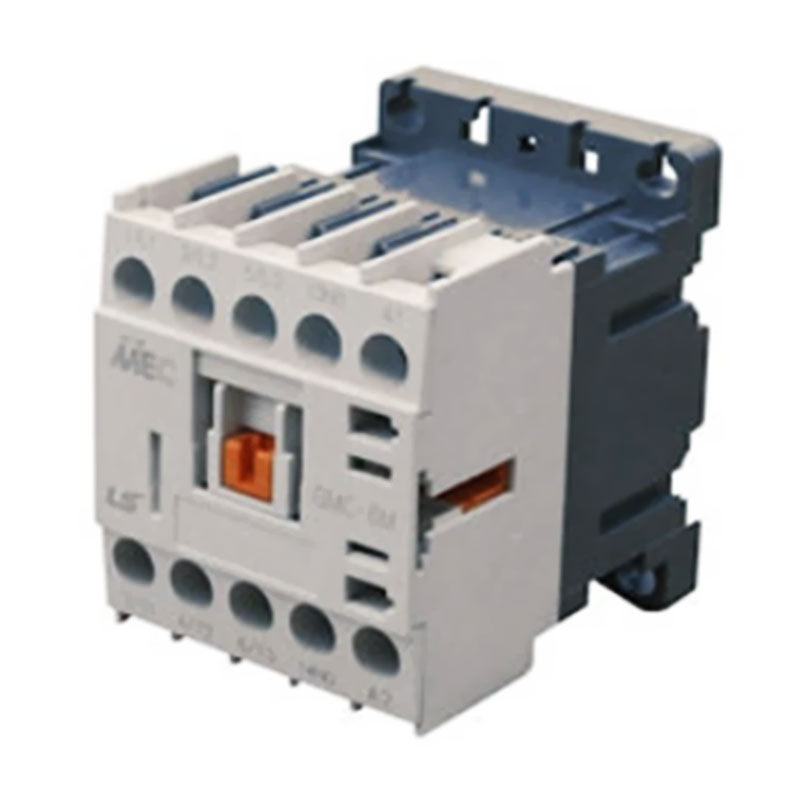

LS Mini Circuit GMD-6M-DC24V
Brand: LS Electric
SKU:
C54320-1
Availability:
In Stock (ships from Chicago in 1-2 business days)
$80.00
LS Mini Circuit GMD-6M-DC24V
$80.00
Product Description
- • Due to a low coil VA, it can be driven directly from a PLC.
- • This CE Marking compliant product has passed certification testing.
- • Terminal cover is standard equipment.
- • This is a UL-compliant product for your peace of mind.
- • Enables both screw mounting and DIN rail mounting.
Product Specifications
| Specifications | ||
|---|---|---|
| Motor Capacity | 1.5 | |
| Thermal Nominal 220 vAC (kW/a) | 7 | |
| Auxiliary Contact | 1a | |
| Dimension Length | 58 mm | |
| Dimension Thickness | 69 mm | |
| Coil Rated Voltage | DC24 V | |
| Representative Standards | CE | |
| Dimension Width | 45 mm | |
| RoHS | 6 | |
| Frame Size | 6 AF | |
| Coil Voltage | 24 VDC | |
| Coil Current | 0.05 A | |
| Motor Capacity | 200~240V | 1.5kW 7A |
| 380~440V | 2.2kW 6A | |
| 500~550V | 3kW 5A | |
| 690V | 3kW 4A | |
| Model | GMD-6M-DC24V | |
Product Drawing
Brand
LS Electric
Availability
In Stock
