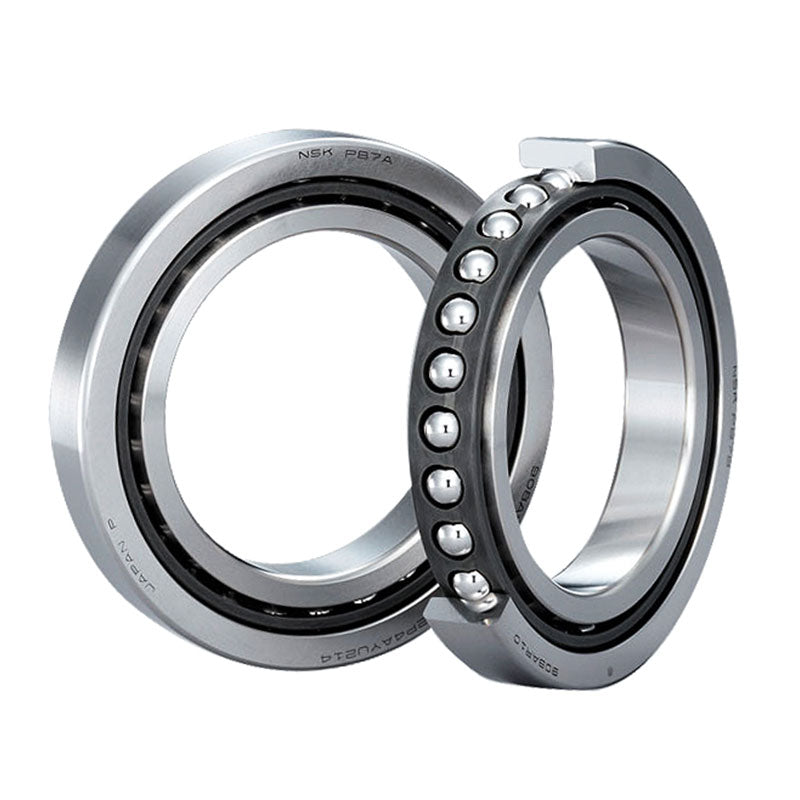

NSK Angular Contact Ball Bearing 180BAR10SDBLP4A
Brand: IndustryNest
SKU:
591180BA1001NS
Availability:
In Stock (ships from Chicago in 1-2 business days)
Parts : Angular Contact Ball Bearing
Part Number : 180BAR10SDBLP4A (591180BA1001NS)
Dimensions : 180 mm x 280 mm x 90 mm
Manufacturer : NSK
Product Description
The NSK range of angular contact ball bearings has been designed to meet the increasingly demanding requirements of original equipment manufacturers.
These bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads.
Furthermore, since an axial component is generated when a radial load is applied, these bearings are generally used in pairs, triple sets, quadruple sets, or multiple sets.
NSK offers one of the most comprehensive ranges of angular contact ball bearings.
Product Specifications
| Specifications | ||
| Boundary Dimensions | d | 180 mm |
| D | 280 mm | |
| 2B | 90 mm | |
| r min | 2.1 mm | |
| r1 min | 1.1 mm | |
| Basic Load Ratings | Cr Dynamic | 151 kN |
| Cor Static | 385 kN | |
| Permissible Axial Load | 262 kN | |
| Contact Angle | 30 ? | |
| Effective Load Center | 88.8 | |
| Mass | 10.2 kg | |
| Limiting Speeds | Grease | 3,300 |
| Oil | 4,200 | |
| Specifications | ||
| Abutment and Fillet Dimensions | da min | 192 mm |
| Db max | 273 mm | |
| ra max | 2 mm | |
| rb max | 1 mm | |
| Preload (DB and DF Arrangement) | EL | 606 |
| L | 5,259 | |
| Axial Rigidity (DB and DF Arrangement) | EL | 385 |
| L | 814 | |

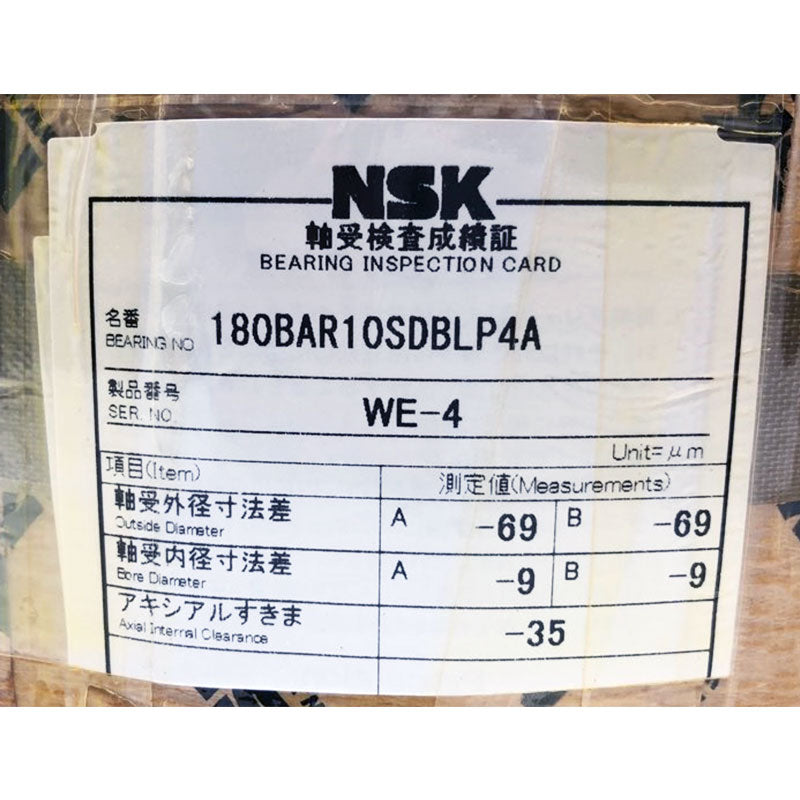

| Measured Axial Clearance | EL | -5 |
| L | -35 | |
