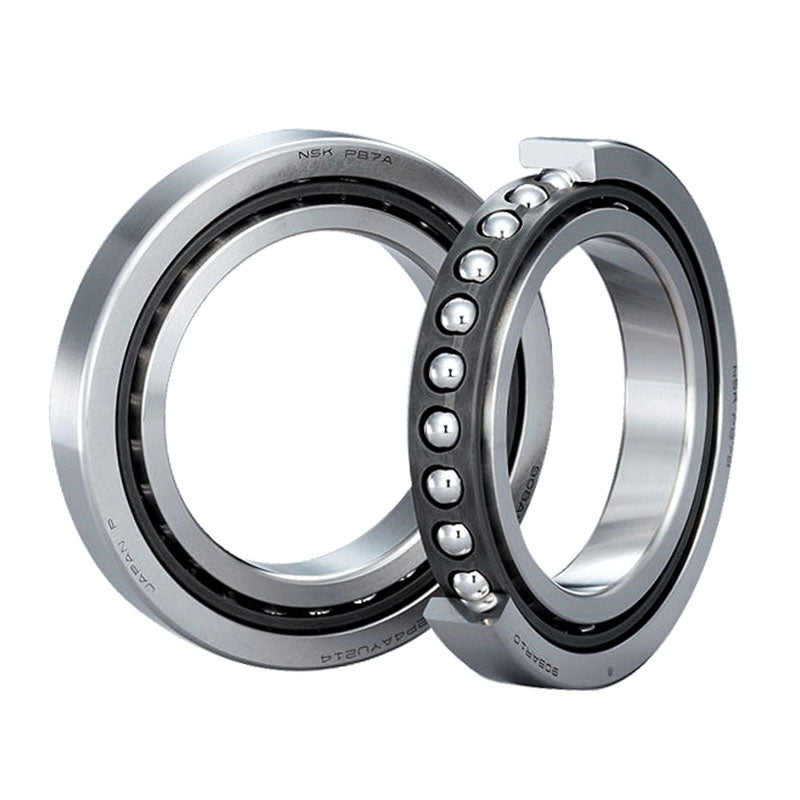

NSK Angular Contact Ball Bearing 7080AE2DBCP35P4BU214
Brand: IndustryNest
SKU:
1212T007
Availability:
In Stock (ships from Chicago in 1-2 business days)
Parts : Angular Contact Ball Bearing
Part Number : 7080AE2DBCP35P4BU214 (1212T007)
Dimensions : 400 mm x 600 mm x 90 mm
Manufacturer : NSK
Product Description
If the load on angular contact ball bearings becomes too small, or if the ratio of the axial and radial loads for matched bearings exceeds during operation slippage between the?ball and raceways occurs,
which may result in smearing. Especially with large bearings since the weight of the rollers and cafe is high. If very small bearing loads are expected please consult with NSK for selection of the bearings.
Product Specifications
| Specifications | ||
| Boundary Dimensions | d | 400 mm |
| D | 600 mm | |
| B | 90 mm | |
| r min | 5 mm | |
| r1 min | 2 mm | |
| Basic Load Ratings (Single) | Cr | 555 kN |
| Cor | 1,010 kN | |
| Cr | 57,000 kgf | |
| Cor | 103,000 kgf | |
| Eff Load Centers | 189.3 mm | |
| Abutment and Fillet Dimensions | da | 429 |
| Da | 566 | |
| Ra | 4 | |
| Specifications | ||
| Basic Load Ratings (Matched) | Cr | 950 kN |
| Cor | 2,030 kN | |
| Cr | 92,000 kgf | |
| Cor | 207,000 kgf | |
| Load Center Spacings | DB | 378.7 mm |
| DF | 198.7 | |
| Abutment and Fillet Dimensions | db(3) | - |
| Db | 578 mm | |
| rb(3) max | 2 mm | |
| Mass (Approx.) | 85.9 kg | |
