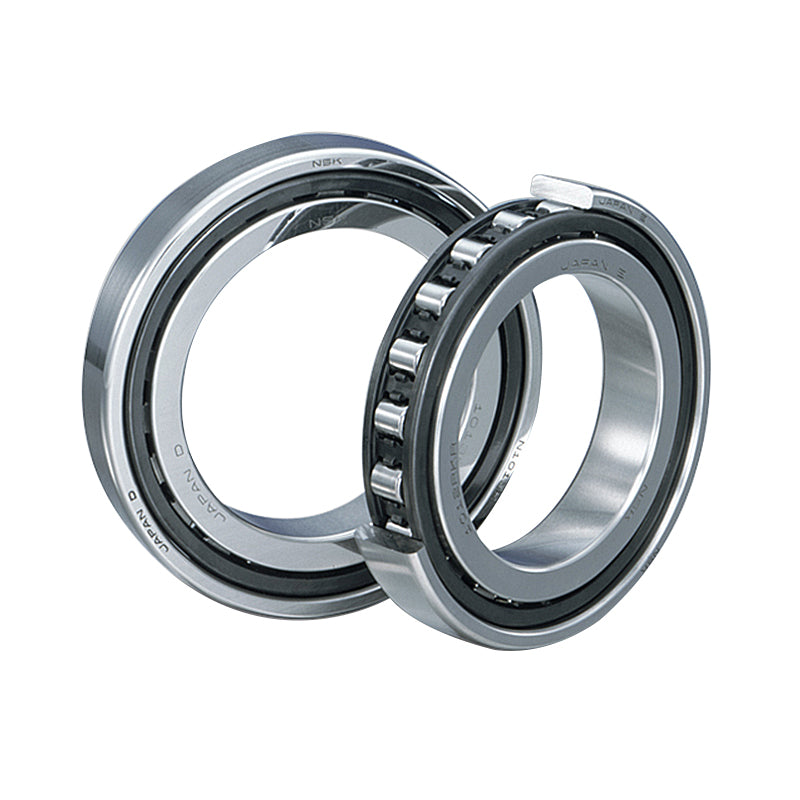

NSK Cylindrical Roller Bearing NN1009BTKRCC0P4
Brand: IndustryNest
SKU:
593N1009BT01NS
Availability:
In Stock (ships from Chicago in 1-2 business days)
$220.00
NSK Cylindrical Roller Bearing NN1009BTKRCC0P4
$220.00
Product Description
Bearings to support the rear portion of the head spindle in machining centers and NC lathes are exposed to the belt tension and transmission gear reaction.
Accordingly. double-row cylindrical roller bearings with large load capacity are used.
The number of applications are increasing for a drive system with a motor directly coupled or a motor built-in system with a motor arranged directly inside the spindle to meet the demand for faster spindle speeds.
In this case,the single-row cylindrical roller bearing has come to be increasingly used because it can reduce the load acting on the rear support bearing.
Product Specifications
| Dimension Specifications | ||
| Boundary Dimensions | d | 45 mm |
| D | 75 mm | |
| B | 16 mm | |
| r (min) | 1 mm | |
| r1 (min) | 0.6 mm | |
| Basic Load Ratings | Ew | 67.5 |
| Cr | 30,000 N | |
| Car | 34,500 N | |
| Cr | 3,100 kgf | |
| Car | 3,500 kgf | |
