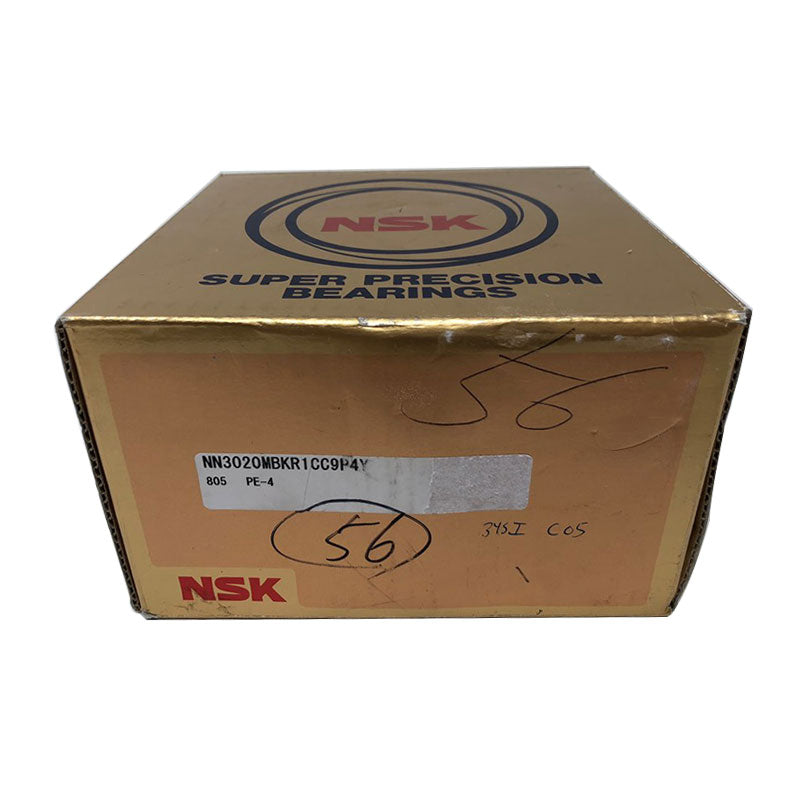

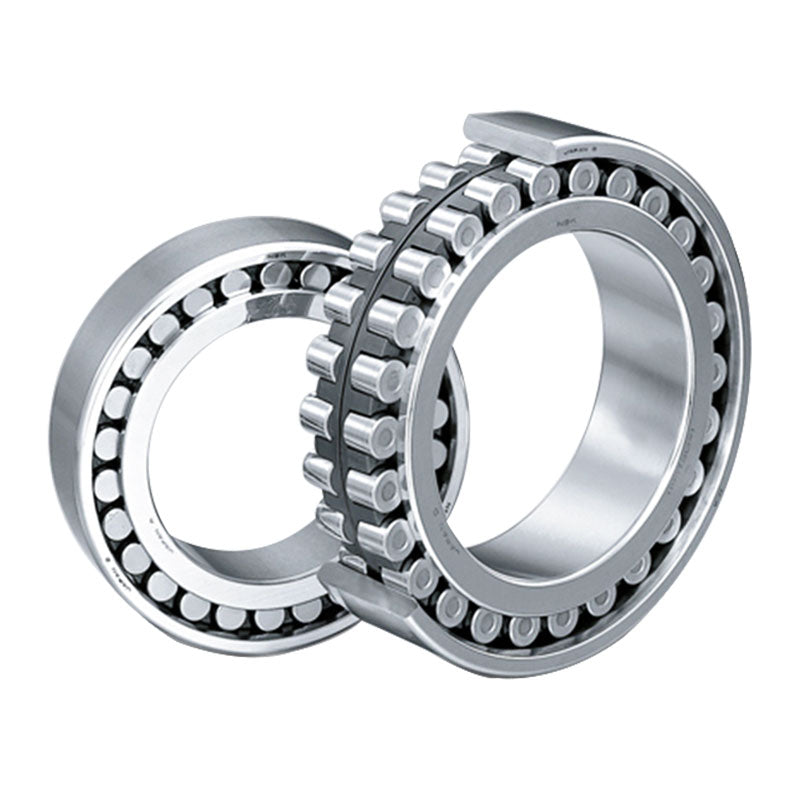

NSK Cylindrical Roller Bearing NN3020KMBCC9P4
Brand: IndustryNest
SKU:
593NN3020K0ISK
Availability:
In Stock (ships from Chicago in 1-2 business days)
$529.00
NSK Cylindrical Roller Bearing NN3020KMBCC9P4
$529.00
Product Description
If the load on cylindrical roller bearings becomes too small during ioeration, slippage between the rollers and raceways occurs, which may result in smearing.
This is common with large bearings since the weight of the rollers and cafe is high.
If very small bearing loads are expected please consult with us for selection of the bearings.
Product Specifications
| Specifications | ||
| Boundary Dimensions | d | 100 mm |
| D | 140 mm | |
| B | 37 mm | |
| r min | 1.5 | |
| Fw | - | |
| Ew | 137 mm | |
| Basic Load Ratings | Cr | 157 kN |
| Cor | 265 kN | |
| Cr | 16,000 kgf | |
| Cor | 27,000 kgf | |
| Specifications | ||
| Abutment and Fillet Dimensions | da | 111 mm |
| d1a | 114 mm | |
| dc mic | - | |
| Da | 139 mm | |
| Ra max | 1.5 mm | |
| Mass (Approx.) | 2.28 kg | |
Brand
IndustryNest
Availability
In Stock
