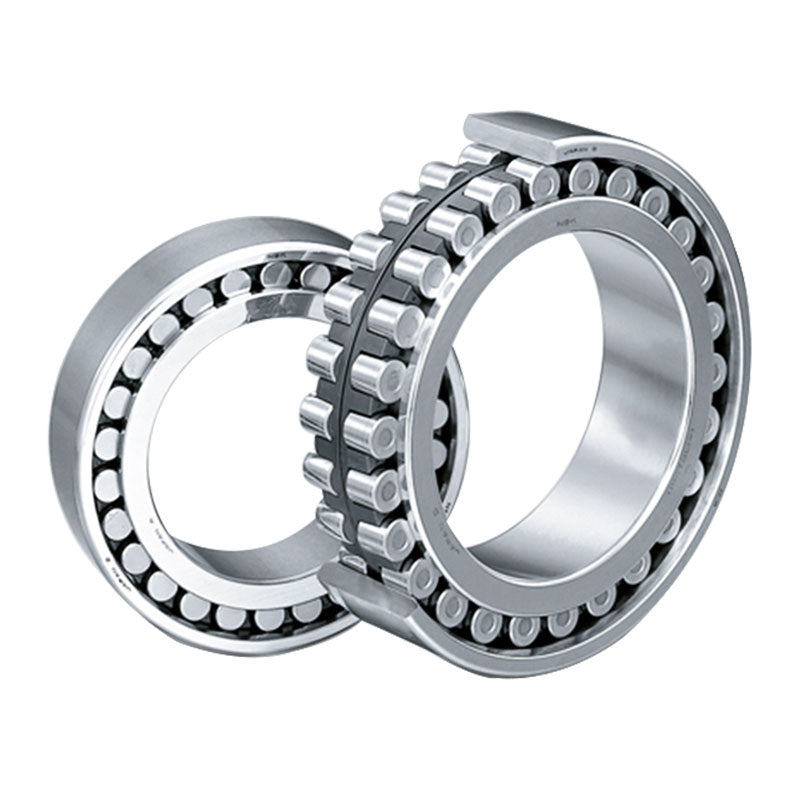

NSK Cylindrical Roller Bearing NN3072KE7CC9P4U214
Brand: IndustryNest
SKU:
1680
Availability:
In Stock (ships from Chicago in 1-2 business days)
Product Description
If the load on cylindrical roller bearings becomes too small during ioeration, slippage between the rollers and raceways occurs,
which may result in smearing. Especially with large bearings since the weight of the rollers and cafe is high.
If very small bearing loads are expected please consult with us for selection of the bearings.
Product Specifications
| Specifications | ||
| Boundary Dimensions | d | 360 mm |
| D | 540 mm | |
| B | 134 mm | |
| r min | 5 mm | |
| Fw | - | |
| Ew | 493 mm | |
| Basic Load Ratings | Cr | 1,700 kN |
| Cor | 3,450 kN | |
| Cr | 173,000 kgf | |
| Cor | 350,000 kgf | |
| Specifications | ||
| Abutment and Fillet Dimensions | da | 388 mm |
| d1a | 399 mm | |
| dc min | - | |
| Da | 509 mm | |
| Ra max | 4 mm | |
| Mass | Approx. | 106 kg |
