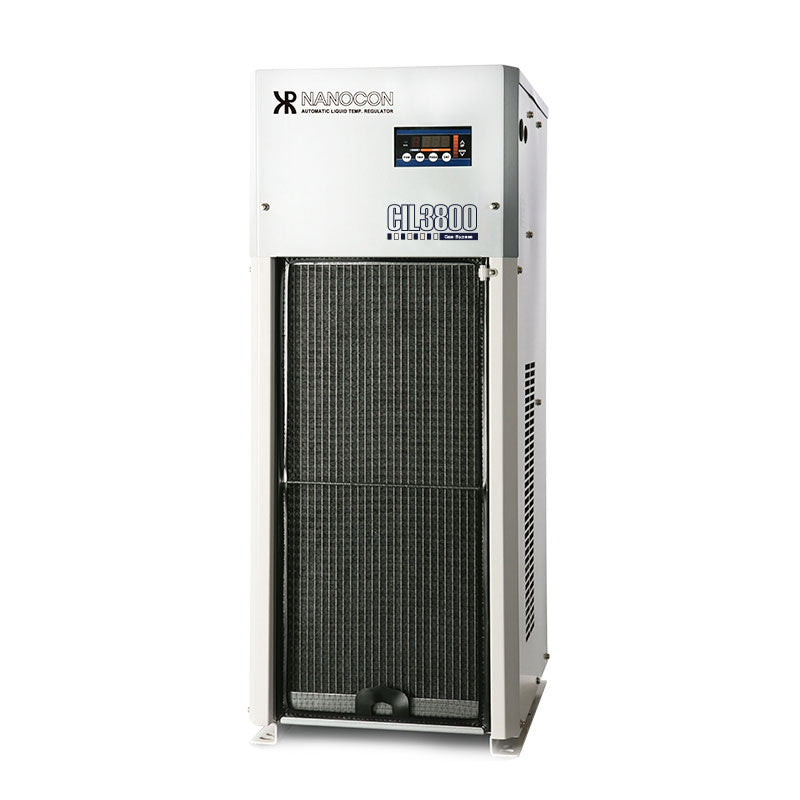

Kwangrim NANOCON Oil Chiller CIL 3800A
  • Kwangrim NANOCON Oil Chiller CIL 3800A
Kwangrim NANOCON Oil Chiller CIL 3800A

Kwangrim NANOCON Oil Chiller CIL 3800A

Brand: Kwangrim
SKU: CIL-3800A-C
Availability: In Stock (ships from Chicago in 1-2 business days)
Request for Quote
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.

Kwangrim Oil Chiller CIL 3801A-C

Manufacturer: Kwangrim

Cooling Capacity: 13,700/16,500 (W) (50/60 Hz)

Compatible Machine Models: Doosan, WIA, DN Solutions WIA, FFGDMC

Cross-Compatible Brands & Models

Airmajor AO1500P Mastertech MSOC-5000F Samick SIOC-3800CT SamwhaPMI KITS-500AT

Product Description

Kwangrim Oil Chiller CIL 3800A-C is The high accuracy liquid temperature controlling CIL Series oil chiller covers light to heavy loads.

With a gas-by-pass control, CIL oil chillers can be used for various cutting purposes including high-precision machining and finishing touches. The CIL A-type oil chiller is equipped with a dual valve/gas-by-pass PID control with +-0.1 C of continuous minute control, resulting in great machining quality and longer machine life. We also offer E-type, a CIW type and an economical model with a water pump for customers.

CIL 380a0A-C Oil Chiller Series Options

STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and constant temperature control is possible with one setting.

Heater: With heater attached, warning-up time for a machine is reduced.

Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.

Tank: Tank can be attached with various volume selection.

CIL

NANOCON Drawings

CIL

Product Specifications

Specifications

Kwangrim Oil Chiller CIL 3800A-C
Dimension 730 x 870 x 1455 (W x D x H)
External Color BLACK
Cooling Capacity

13600/16300 (W) (50/60 Hz)
Impressed Power Source

AC200V 50 / 60Hz, AC220V / 60Hz
Power Capacity 27.0A / 10.4KVA
Compressor Capacity 5460W
Condenser Air cooling (ALUMINUM CONDENSER)
FAN MOTOR 200W x 2
Heat Exchanger Plate Cooler
Circulating Oil 78 / 93.6 L/min (50/60 Hz)
Max.Pressure 0.7 / 0.5 Mpa

Connecting Piping

1 x 1 (In x out) (RC,PT)
Usage Temperature 5 ~ 45 ℃
Temp. Control

A type : ±0.1 ℃ ~ 0.2 ℃ (Does not include transient deviation)
Refrigerant R407C
Temp. Controller DIGITAL PID Controlled Controller

Chiller Dimension Drawings

CIL3800A-C-dwg
