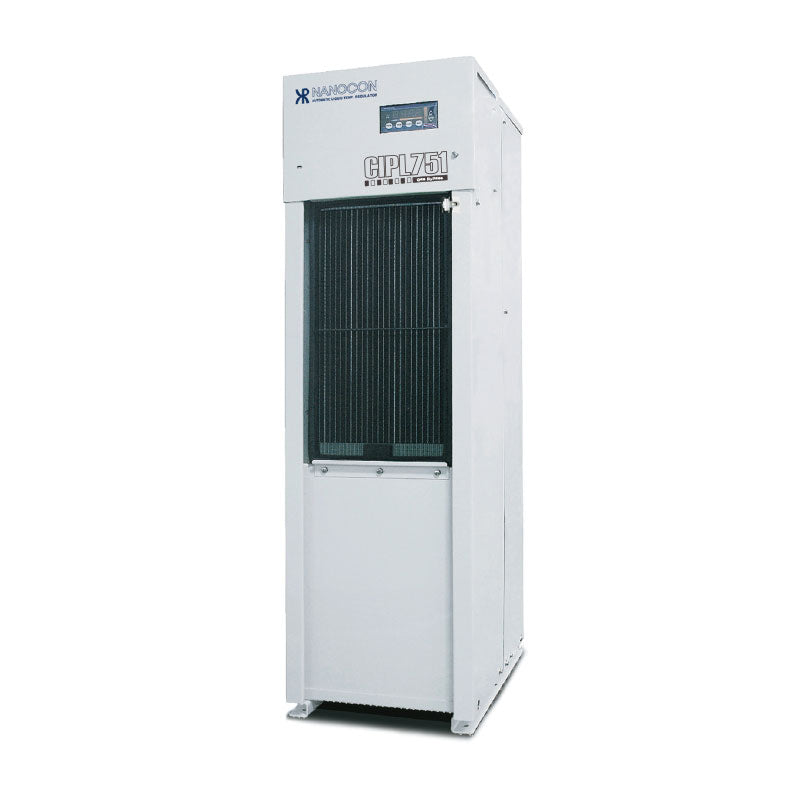

Kwangrim Oil & Coolant Chiller CIPL 751A

Manufacturer: Kwangrim

Cooling Capacity: 2,900/3,480 (W) (50/60 Hz)

Compatible Machine Models : Doosan,DN Solutions, WIA, FFGDMC, Makino

Cross-Compatible Brands & Models

Daikin Harbor Kantoseiki KauKan MAC Mastertech

Product Description

Kwangrim Oil & Coolant Chiller CIPL 751A is the? High Precision Oil and Coolant Cooler

The world's smallest high-pressure circulation type cooler. Even when minimally loaded, the CIPL series coolers still allow +-0.1 C high precision temperature control with 0.5 Mpa internal pressure for higher efficiency and better precision. Conventional models only have 0.3 Mpa internal pressure. Additionally, CIPL coolers operate by chilling coolant liquid during circulation enabling a more compact design. As an option, you can attach a pump to supply coolant to the machine, saving space and enhancing durability.

? No need for tank with circulation-type cooler

? Easy tank cleaning

? Selection between the on-off distribution model type and high-precision control PID type

CIPL 751A Series Option

Heater: With heater attached, warm-up time is reduced.

Tuned Mass Sensor: The target temperature is based on the machine temperature, not the room temperature for more accurate temperature control.

Tank: Tank can be attached with various volume selections.

CIPL

NANOCON Drawings

CIPL

Product Specifications

Specifications

Kwangrim Oil & Coolant Chiller CIPL 751A (H,P,HP)
Dimension 345 x 487 x 1331 (W x D x H)
Rated Power Source (W) (50/60 Hz) 2,900/3,480
Impressed Power Source 3? 200V 50 / 60Hz, 220V / 60Hz
Rated Power Capacity? (kVA) 4.5
Operation Circuit DC 24V, 5V
Rated Load Current (A) 11.8
Compressor Rotary Type
Condenser ALL Aluminum Type
Evaporator Coil Type (Stainless)
Heater 3Ph 220V 2kW
Type Coolant Pump
Flow rate (L/min) 85 / 120
HEAD 4
Rated Motor Output (kW) 0.25
Connecting Piping 3/4 * 3/4
Weight (without option) 70
Ambient Temperature 5 ~ 45 ? (Option 0 ~ 50 ?)
Oil Temperature 5 ~ 45 ?
Target Temperature Control Accuracy E : ? 1.0 ? A : ? 0.1 ?
Refrigerant R410A
Available Used Oil Lubricating Oil, Hydraulic, Fluid etc.

Chiller Dimension Drawings
