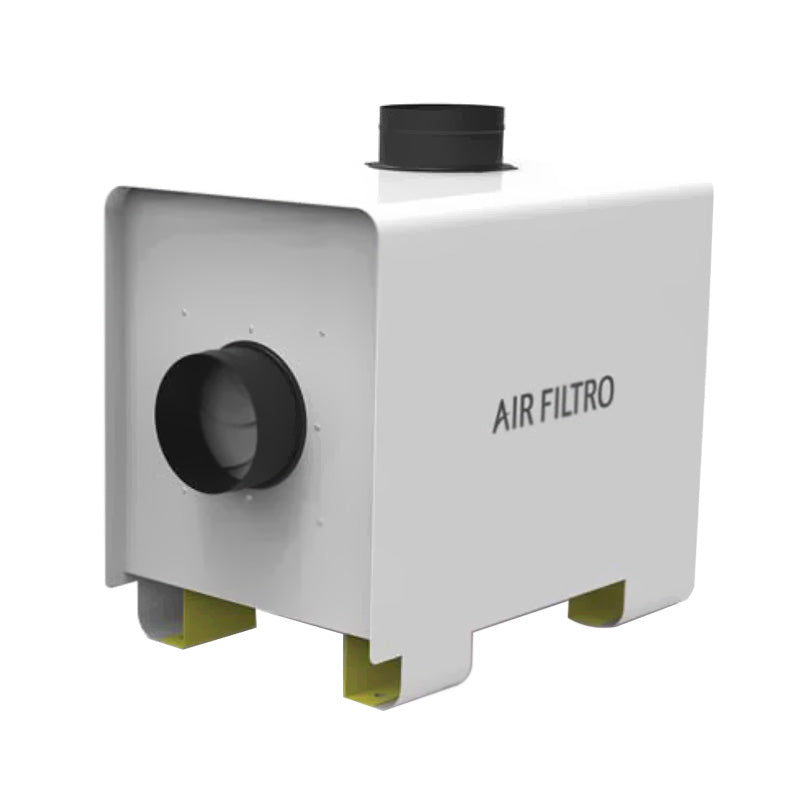

Air Filtro AF 2X by Seyang showing front view with primary filter and side view installed in a factory setting
  • Air Filtro AF 2X by Seyang showing front view with primary filter and side view installed in a factory setting
Seyang Air Filtro AF 2X

Seyang Air Filtro AF 2X

Brand: Seyang
SKU: SEYANG-AF-2X
Availability: In Stock (ships from Chicago in 1-2 business days)
$2,470.00
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.
Air Filtro AF 2X by Seyang showing front view with primary filter and side view installed in a factory setting
Seyang Air Filtro AF 2X
$2,470.00

Product Description

AIR FILTRO captures more than 98% of oil mist in the following way.

The oil-containing fume passes through the inside of the device and forms turbulence inside through the primary filter on the front to come into contact with the filter.

More than 98% of the fine oil separated from the filtrate through the chip separator is captured through the filter developed by our company.

The oil-filtered fume is discharged to the outside through the closed impeller to provide a pleasant working environment in the factory.

Perfomance Property

Compatible Machine Models

Doosan
PUMA 1000A PUMA 2100SY Ⅱ PUMA 2600Y PUMA 5100MB PUMA 700XL T4000 PUMA V8300M/2SP
PUMA 1000B PUMA 2100Y PUMA 2600Y Ⅱ PUMA 5100XLYA PUMA 700XLM T3600D PUMA V8300ML
PUMA 1000MA PUMA 2100Y Ⅱ PUMA 2600YB Ⅱ PUMA 5100XLYB PUMA 700XLY PUMA GT2600L PUMA V8300MR
PUMA 2100 PUMA 2600 PUMA 4100A PUMA 600 PUMA 800 PUMA GT2600LM PUMA V8300R
PUMA 2100L PUMA 2600/500 PUMA 4100MB PUMA 600L PUMA 800B PUMA MX 1600/735 PUMA AW560 2
PUMA 2100LM PUMA 2600B PUMA 4100MC PUMA 600LM PUMA 800L PUMA MX 1600S PUMA AW560-MF 2
PUMA 2100LMS PUMA 2600M PUMA 4100B PUMA 600LY PUMA 800LB PUMA MX1600S/735 PUMA AW660 2
PUMA 2100LS PUMA 2600M/500 PUMA 4100C PUMA 600M PUMA 800LM PUMA MX 1600ST PUMA 800XL
PUMA 2100LSY PUMA 2600S PUMA 4100MA PUMA 600XL PUMA 800XLM PUMA MX1600ST/735 PUMA 800XLM
PUMA 2100LSY Ⅱ PUMA 2600SB PUMA 5100A PUMA 600XLM PUMA 800XLY PUMA MX1600T PUMA 800XLY
PUMA 2100LY PUMA 2600MB PUMA 5100B PUMA 600XLY PUMA 800LY PUMA MX1600T/735
PUMA 2100LY Ⅱ PUMA 2600MS PUMA 5100C PUMA 700 PUMA 800M PUMA GT31000
PUMA 2100SY PUMA 2600MSB PUMA 5100LYA PUMA 700L PUMA 800XL PUMA GT3100M
PUMA 2100M PUMA 2600SY PUMA 5100LYB PUMA 700LM PUMA TT2500MS PUMA MX 1600
PUMA 2100MS PUMA 2600SY Ⅱ PUMA 5100LYC PUMA 700LY PUMA TT2100SYY PUMA V8300-2SP
PUMA 2100S PUMA 2600SYB Ⅱ PUMA 5100MA PUMA 700M DNM 6700 PUMA V8300L

Product Specifications

MODEL

Power(V)

Motor(W)

 Revolution per minunt (rpm)  Air volume (m3/min) Noise (db) Weight (kg)
AF 2X

AC220V (50/60Hz)

Three Phase

 750w 3450 20 72 Ø2 40

External Dimensions



FORM SIZE BOLTING SIZE DUCT
Dimensions A B C D E F G H
AF 2X 600 380 515 293 490(M12) 280 150 69

Installation Photo

Brand Seyang
Availability In Stock
Estimated Delivery 21 Days
