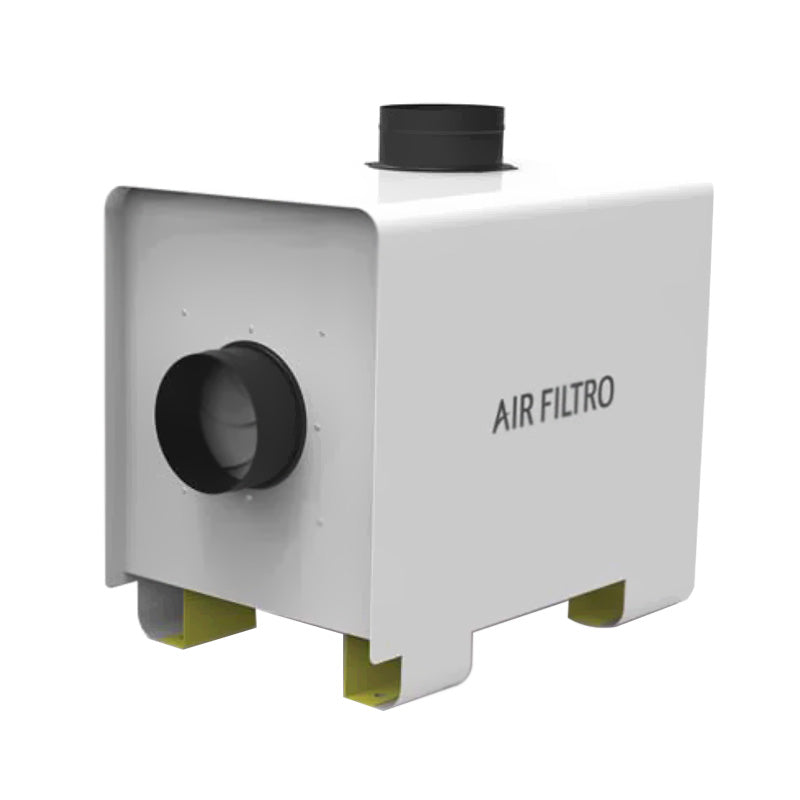

Air Filtro AF 3X by Seyang showing front view with primary filter and side view installed in a factory setting
  • Air Filtro AF 3X by Seyang showing front view with primary filter and side view installed in a factory setting
Seyang Air Filtro AF 3X

Seyang Air Filtro AF 3X

Brand: Seyang
SKU: SEYANG-AF-3X
Availability: In Stock (ships from Chicago in 1-2 business days)
$2,730.00
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.
Air Filtro AF 3X by Seyang showing front view with primary filter and side view installed in a factory setting
Seyang Air Filtro AF 3X
$2,730.00

Product Description

AIR FILTRO captures more than 98% of oil mist in the following way.

The oil-containing fume passes through the inside of the device and forms turbulence inside through the primary filter on the front to come into contact with the filter.

More than 98% of the fine oil separated from the filtrate through the chip separator is captured through the filter developed by our company.

The oil-filtered fume is discharged to the outside through the closed impeller to provide a pleasant working environment in the factory.

Perfomance Property

Compatible Machine Models

Doosan
PUMA 1000A PUMA 3100XLM PUMA 5100LYB PUMA 700M PUMA MX2100L PUMS SMX2600S
PUMA 1000B PUMA 3100XLY PUMA 5100LYC PUMA 700XL PUMA V8300L PUMA SMX2600ST
PUMA 1000MA PUMA 3100Y PUMA 5100XLA PUMA 700XLM PUMA V8300L PUMA TT2500MS
PUMA 2600L PUMA 4100LA PUMA 5100XLB PUMA 700XLY PUMA V8300L PUMA TT2500S
PUMA 2600LB PUMA 4100LB PUMA 5100XLC PUMA 800 PUMA VTR1620M PUMA TT2500SY
PUMA 2600LM PUMA 4100LC PUMA 5100XLMA PUMA 800B PUMA VTR1620M PUMA V8300-2SP
PUMA 2600LMB PUMA 4100LMA PUMA 5100XLMB PUMA 800L PUMA MX2100LS PUMA V8300L
PUMA 2600LMS PUMA 4100LMB PUMA 5100XLYA PUMA 800LB PUMA MX2100LST PUMA V8300M-2SP
PUMA 2600LS PUMA 4100LMC PUMA 5100XLYB PUMA 800LM PUMA MX2100LST-GL PUMA V8300ML
PUMA 2600LSY PUMA 4100XLA PUMA 600 PUMA 800LY PUMA MX2100LT PUMA V8300MR
PUMA 2600LSY Ⅱ PUMA 4100XLB PUMA600L PUMA 800M PUMA MX2100S PUMA V8300R
PUMA 2600LSYB Ⅱ PUMA 4100XLC PUMA 600LM PUMA 800XL PUMA MX2100ST PUMA VAW700
PUMA 3100 PUMA 4100XLMA PUMA 600LY PUMA 800XLM PUMA MX2100T PUMA VAW7500
PUMA 3100L PUMA 4100XLMB PUMA 00M PUMA 800XLY PUMA MX2600 PUMA VAW800
PUMA 3100LM PUMA 4100XLMC PUMA 600XL PUMA GT2600XLA PUMA MX2600S PUMA SMX3100
PUMA 3100LY PUMA 5100LA PUMA 600XLM PUMA GT2600XLB PUMA MX2600S PUMA SMX3100L
PUMA 3100M PUMA5100LB PUMA 600XLY PUMA GT2600XLMA PUMA MX2600ST PUMA SMX3100LS
PUMA 3100UL PUMA 5100LC PUMA 700 PUMA GT2600XLMB PUMA MX2600T PUMA SMX3100S
PUMA 3100ULM PUMA 5100LMA PUMA 700L PUMA GT3100L PUMA MX23100 PUMA SMX3100ST
PUMA 3100ULY PUMA 5100LMB PUMA 700LM PUMA GT3100LM PUMA MX3100S
PUMA 3100XL PUMA 5100LYA PUMA 700LY PUMA MX2100 PUMA SMX2600

Product Specifications

MODEL

Power(V)

Motor(W)

 Revolution per minunt (rpm)  Air volume (m3/min) Noise (db) Weight (kg)
AF 3X

AC220V (50/60Hz)

Three Phase

 1500w 3450 30 75 Ø2 55

External Dimensions



FORM SIZE BOLTING SIZE DUCT
Dimensions A B C D E F G H
AF 3X 600 430 555 295 490(M12) 330 200 69

Installation Photo
