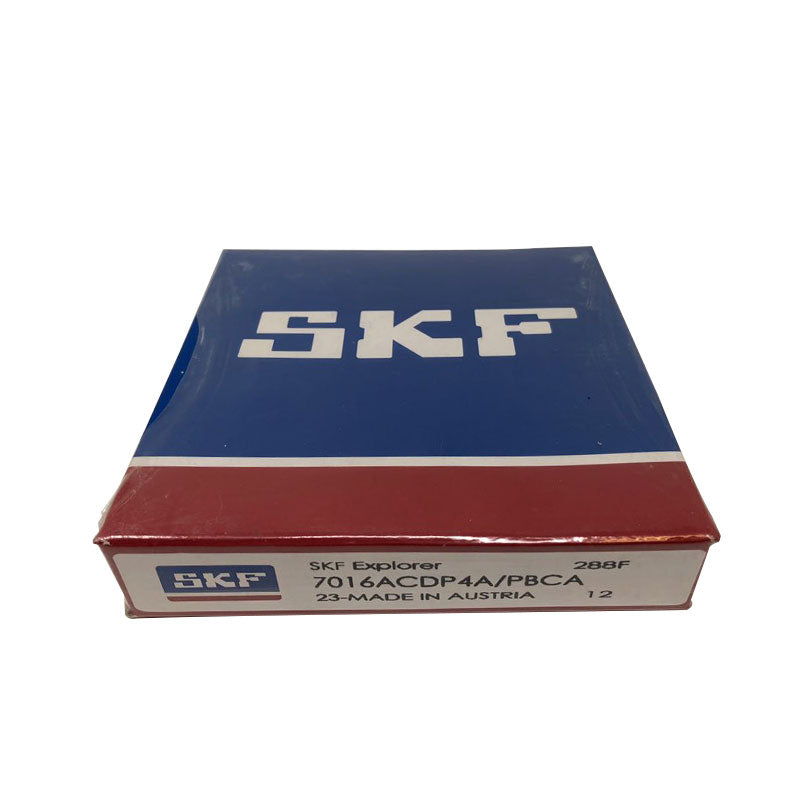

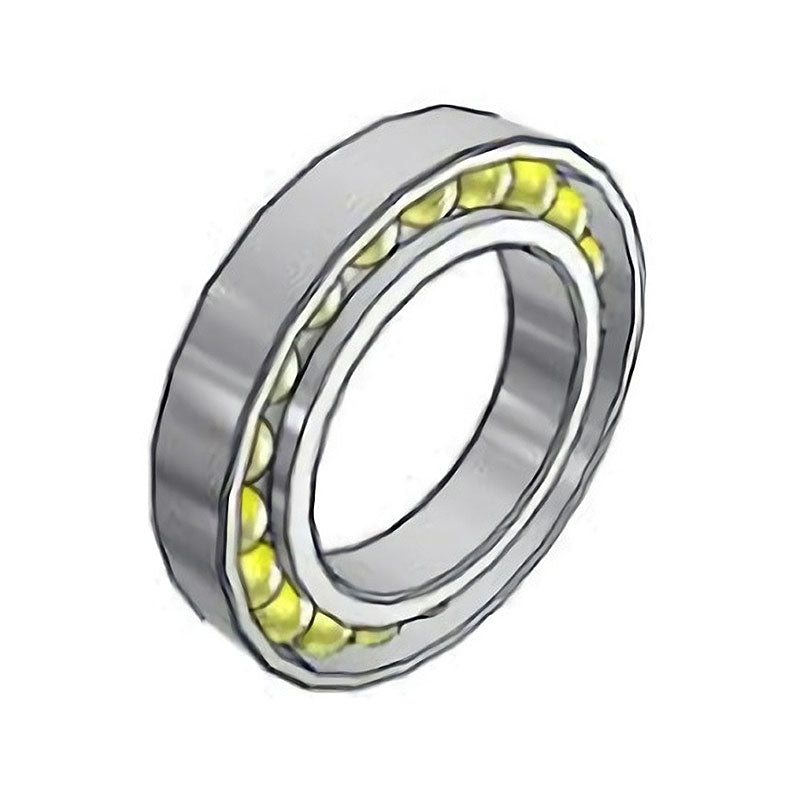

SKF Angular Contact Thrust Ball Bearing 7016ACDP4A/PBCA
Brand: IndustryNest
SKU:
5917016ACD03KF
Availability:
Pre-order
$620.00
SKF Angular Contact Thrust Ball Bearing 7016ACDP4A/PBCA
$620.00
Product Description
Hybrid angular contact thrust ball bearings (designation suffix HC) have rings made of bearing steel and rolling elements made of bearing grade silicon nitride (ceramic).
As ceramic balls are lighter and have a higher modulus of elasticity and lower coefficient of thermal expansion than steel balls, hybrid bearings can provide the following advantages
Product Specifications
| d? | D | H | d1 | d2 | D1 | r1,2 | r3,4 | a |
| 80 mm | 125 mm | 22 mm | 93.9 mm | 93.9 mm | 111.1 mm | 1.1 mm | 0.6 mm | 35 mm |
| da | db | Da | Db | ra | rb | dn |
| 86 mm | 86 mm | 119 mm | 121 mm | 1 mm | 0.6 mm | 96.9 mm |
| Calculation Data | |
| Basic Dynamic Load Rating | 62.4 kN |
| Basic Static Load Rating | 58.5 kN |
| Fatigue Load Limit | 2.45 kN |
| Attainable Speed for Grease Lubrication | 9,500 r/min |
| Attainable Speed for Oil-air Lubrication | 15,000 r/min |
| Ball Diameter | 14.288 mm |
| Number of Balls | 20 |
| Reference Grease Quantity | 11.1 cm? |
