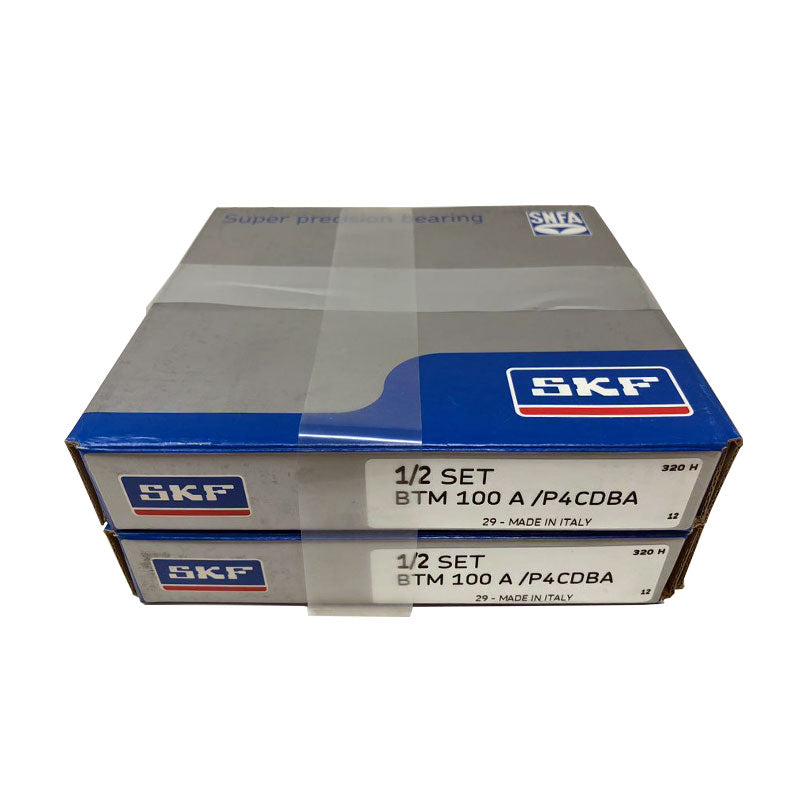

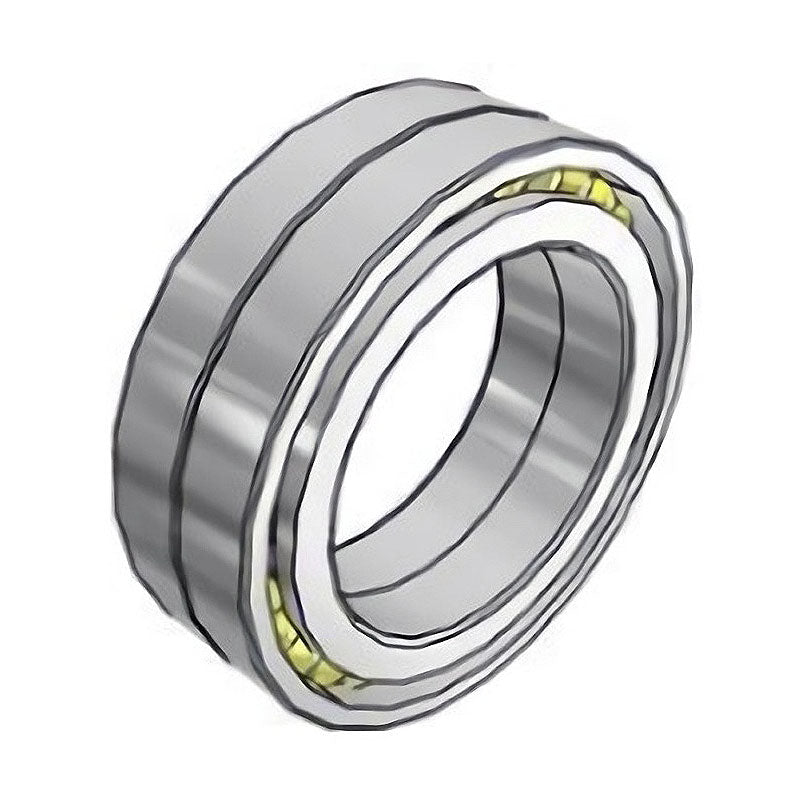

SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA
$910.00
Product Description
Bearings in the BTM series consist of two non-separable single row angular contact ball bearings arranged back-to-back.
They are designed to accommodate axial loads in both directions. When the inner rings are pressed together, preload within a predetermined range will result.
Product Specifications
| d | D | H | d1 | D1 | r1,2 | r3,4 |
| 100 mm | 150 mm | 45 mm | 123 mm | 137.1 mm | 1.5 mm | 1 mm |
| da | Da | ra | rb | dn |
| 107 mm | 145 mm | 1.5 mm | 1 mm | 119.7 mm |
| Calculation Data | |
| Basic Dynamic Load Rating | 41.5 kN |
| Basic Static Load Rating | 102 kN |
| Fatigue Load Limit | 3.8 kN |
| Attainable Speed for Grease Lubrication | 7,900 r/min |
| Attainable Speed for Oil-air Lubrication | 9,400 r/min |
| Preload Class A | 400 N |
| Preload Class B | 1,200 N |
| Static Axial Stiffness for Preload A | 350 N/?m |
| Static Axial Stiffness for Preload B | 529 N/?m |
| Reference Grease Quantity | 22 cm? |
