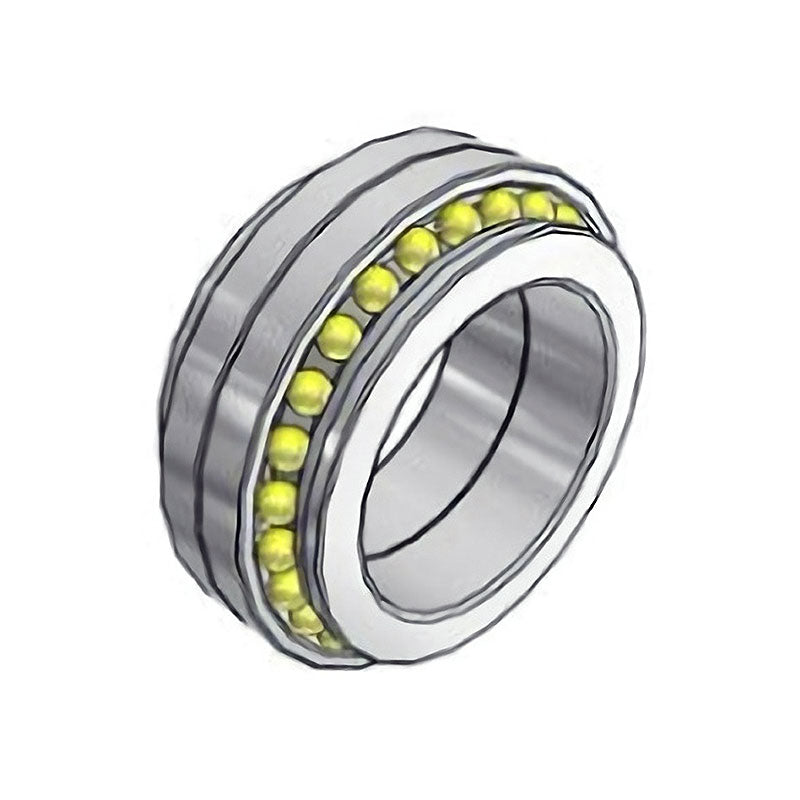

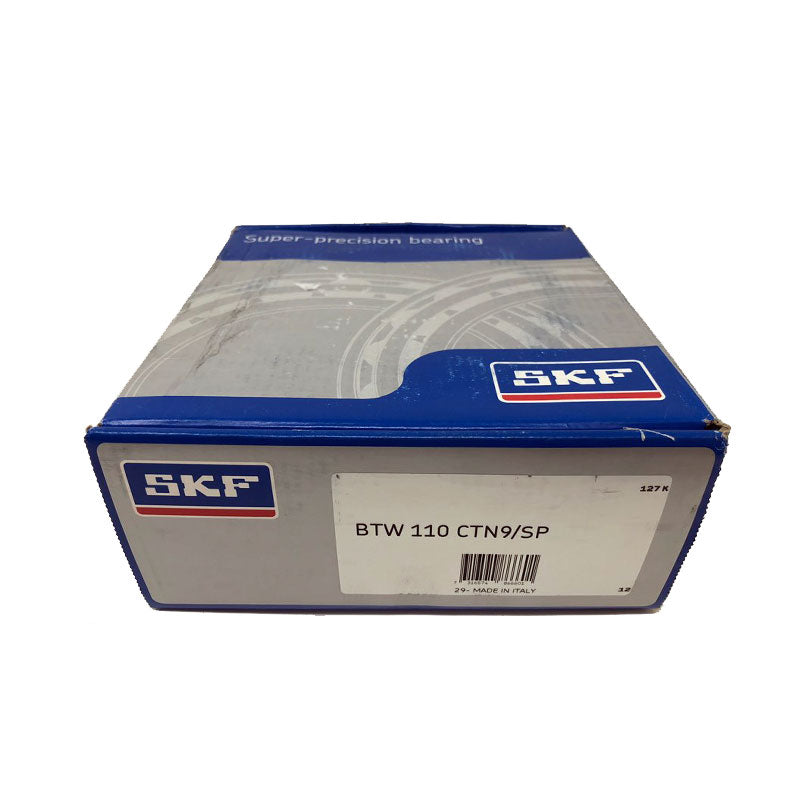

SKF Angular Contact Thrust Ball Bearing BTW 110 CTN9/SP
Brand: IndustryNest
SKU:
591BTW11001SK
Availability:
In Stock (ships from Chicago in 1-2 business days)
$1,652.00
SKF Angular Contact Thrust Ball Bearing BTW 110 CTN9/SP
$1,652.00
Product Description
Bearings in the BTW series consist of two single row angular contact thrust ball bearings with a 60° contact angle, arranged back-to-back.
This configuration, combined with the large number of balls, enables these bearings to accommodate high axial loads in both directions and provides a high degree of system rigidity.
Bearings in the BTW series are separable. When the shaft washers are pressed together, preload within a predetermined range will result.
Product Specifications
| d | D | H | d1 | 2C | r1,2 | r3,4 |
| 110 mm | 170 mm | 72 mm | 145 mm | 35 mm | 2 mm | 1 mm |
| da | Da | Da | ra | rb |
| 132 mm | 159.8 mm | 161 mm | 2 mm | 1 mm |
| Calculation Data | |
| Basic Dynamic Load Rating | 81.9 kN |
| Basic Static Load Rating | 260 kN |
| Fatigue Load Limit | 10.4 kN |
| Attainable Speed for Grease Lubrication | 4,300 r/min |
| Attainable Speed for Oil-air Lubrication | 5,000 r/min |
| Preload | 735 N |
| Static Axial Stiffness | 893 N/μm |
| Reference Grease Quantity | 26.5 cm³ |
