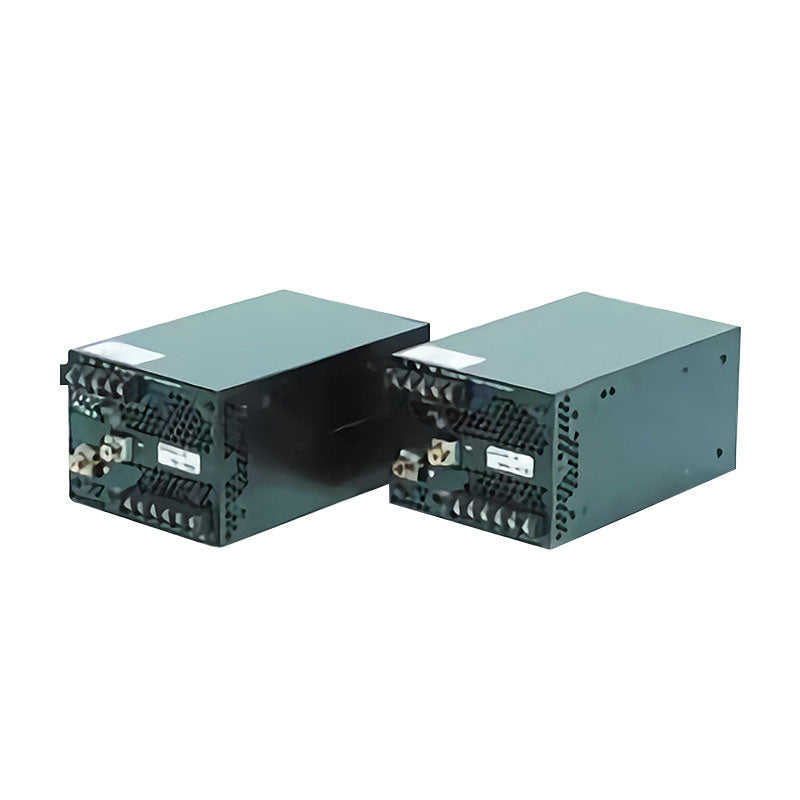

Fine Suntronix / Orient Electronics Switching Mode Power Supply MSF300-36
  • Fine Suntronix / Orient Electronics Switching Mode Power Supply MSF300-36
Switching Mode Power Supply MSF300-36

Switching Mode Power Supply MSF300-36

Brand: Orient Electronics
SKU: 702MSF30036
Availability: In Stock (ships from Chicago in 1-2 business days)
$780.00
Fine Suntronix / Orient Electronics Switching Mode Power Supply MSF300-36
Switching Mode Power Supply MSF300-36
$780.00

Product Description

? Over current protection

? Over voltage protection

? Complies with FCC Part 15 and EN 5022

? Class A Limits

? Remote Sensing

Product Specifications

Electrical Specifications
? MODEL MSF300-24 MSF300-28 MSF300-36 MSF300-48
INPUT VOLTAGE, FREQUENCY AC100-120V / 200-240V (AC 90~ 132V / 180 ~ 264V or AC 225 ~ 370V), 50/60Hz (47 ~ 440Hz) User Selectable
CURRENT [A] 110V 7.0 ( I?=100%)
220V 3.5 (I?=100%)
EFFICIENCY [%] 110V 81 typ 82 typ 82 typ 83 typ
220V
INRUSH CURRENT 30A typ (ACIN 110V, I?=100%), 60A typ (ACIN 220V, I?=100%) at cold start.
OUTPUT VOLTAGE [V] 24 28 36 48
CURRENT [A] 13 11 8.5 6.5
REGULATION, LINE [mV] 120 Max 140 Max 180 Max 240 Max
REGULATION, LOAD [mV] 240 Max 280 Max 360 Max 480 Max
RIPPLE [mVp-p] 240 Max 280 Max 360 Max 480 Max
RIPPLE, NOISE [mVp-p] 290 Max 330 Max 410 Max 530 Max
TEMPERATURE DRIFT 0~+50? [mV] 360 Max 420 Max 540 Max 720 Max
RISE TIME [ms] 500 max (AC IN 110V, I?=100%)
HOLDING TIME [ms] 20 typ (AC IN 110V, I?=100%)
PROTECTION CIRCUIT OVER CURRENT PROTECTION Works at over 110% of rating and recovers automatically
OVER VOLTAGE PROTECTION Works at 115 ~ 140% of rating
ELECTRICALLY ISOLATED INPUT-OUTPUT AC 3,000V 1 minute current 20mA, DC 500V 100M? (At room temperature & humidity)
INPUT-CASE, FG AC 2,000V 1 minute current 20mA, DC 500V 100M? (At room temperature & humidity)
OUTPUT-CASE, FG AC 500V 1 minute current 100mA, DC 500V 100M? (At room temperature & humidity)
ENVIRONMENT OPERATING TEMP AND HUMID -10 ~ +50?, 20 ~ 90% RH(Non condensing)
STORAGE TEMP AND HUMID -20 ~ +75?, 20 ~ 90% RH(Non condensing)
VIBRATION 10 ~ 55Hz at 1G, 3 minutes period, 30 minutes along ? X, Y and Z axis
IMPACT 10G for 20ms once on each X, Y and Z axis
SAFETY SAFETY REGULATION UL, C-UL, CE UL, C-UL, CE UL, C-UL, CE UL, C-UL, CE
LINE CONDUCTED RF VOLTAGE Complies with FCC Part15 and EN55022 Class A Limits

Product Drawing

Switching

Brand Orient Electronics
Availability In Stock
Estimated Delivery 14 Days
