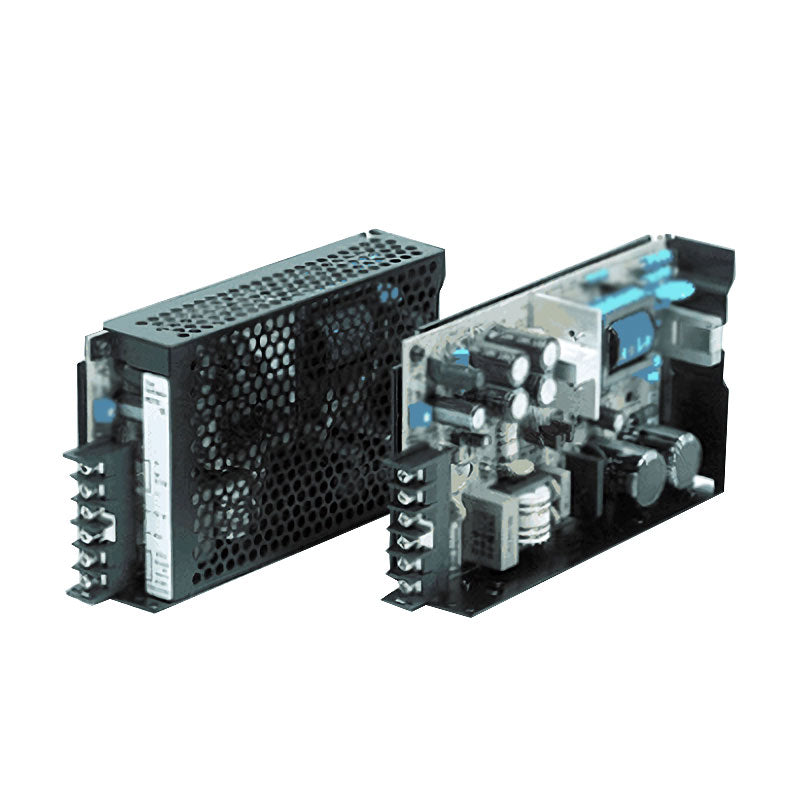

Switching Mode Power Supply MSF80-12
Brand: Orient Electronics
SKU:
702MSF8012
Availability:
In Stock (ships from Chicago in 1-2 business days)
$480.00
Switching Mode Power Supply MSF80-12
$480.00
Product Description
? Over current protection
? Over voltage protection
? Complies with FCC Part 15 and EN 5022
? Class A Limits
? Remote Sensing
Product Specifications
| Electrical Specifications | |||||||
|---|---|---|---|---|---|---|---|
| ? | MODEL | MSF80-3R3 | MSF80-05 | MSF80-09 | MSF80-12 | MSF80-15 | |
| INPUT | VOLTAGE, FREQUENCY | AC100-120V / 200-240V (AC 90 ~ 132V / 180 ~ 264V or AC 225 ~ 370V), 50/60Hz (47 ~ 440Hz) User Selectable | |||||
| CURRENT [A] | 110V | 2.5 (I?=100%) | |||||
| 220V | 1.4 (I?=100%) | ||||||
| EFFICIENCY [%] | 110V | 70 typ | 80 typ | 81 typ | 81 typ | 81 typ | |
| 220V | |||||||
| INRUSH CURRENT | 15A typ (ACIN 110V, I?=100%), 30A typ (ACIN 220V, I?=100%) at cold start. | ||||||
| OUTPUT | VOLTAGE [V] | 3.3 | 5 | 9 | 12 | 15 | |
| CURRENT [A] | 20 | 20 | 11.1 | 8.3 | 6.7 | ||
| REGULATION, LINE [mV] | 25 Max | 25 Max | 45 Max | 60 Max | 70 Max | ||
| REGULATION, LOAD [mV] | 50 Max | 50 Max | 90 Max | 120 Max | 150 Max | ||
| RIPPLE [mVp-p] | 50 Max | 50 Max | 90 Max | 120 Max | 150 Max | ||
| RIPPLE, NOISE [mVp-p] | 100 Max | 100 Max | 140 Max | 170 Max | 200 Max | ||
| TEMPERATURE DRIFT 0~+50? [mV] | 50 Max | 75 Max | 135 Max | 180 Max | 225 Max | ||
| RISE TIME [ms] | 500 max (AC IN 110V, I?=100%) | ||||||
| HOLDING TIME [ms] | 16 typ (AC IN 110V, I?=100%) | ||||||
| PROTECTION CIRCUIT | OVER CURRENT PROTECTION | Works at over 110% of rating and recovers automatically | |||||
| OVER VOLTAGE PROTECTION | Works at 115 ~ 140% of rating (In the case of 3.3V, it is 115 ~ 160%) | ||||||
| ELECTRICALLY ISOLATED | INPUT-OUTPUT | AC 3,000V 1 minute current 20mA, DC 500V 100M? (At room temperature & humidity) | |||||
| INPUT-CASE, FG | AC 2,000V 1 minute current 20mA, DC 500V 100M? (At room temperature & humidity) | ||||||
| OUTPUT-CASE, FG | AC 500V 1 minute current 100mA, DC 500V 100M? (At room temperature & humidity) | ||||||
| ENVIRONMENT | OPERATING TEMP AND HUMID | -10 ~ +50?, 20 ~ 90% RH(Non condensing) | |||||
| STORAGE TEMP AND HUMID | -20 ~ +75?, 20 ~ 90% RH(Non condensing) | ||||||
| VIBRATION | 10 ~ 55Hz at 1G, 3 minutes period, 30 minutes along ? X, Y and Z axis | ||||||
| IMPACT | 10G for 20ms once on each X, Y and Z axis | ||||||
| SAFETY | SAFETY REGULATION | UL, C-UL, CE | UL, C-UL, CE | UL, C-UL, CE | UL, C-UL, CE | UL, C-UL, CE | |
| LINE CONDUCTED RF VOLTAGE | Complied with FCC Part15 and EN55022 Class A Limits | ||||||
