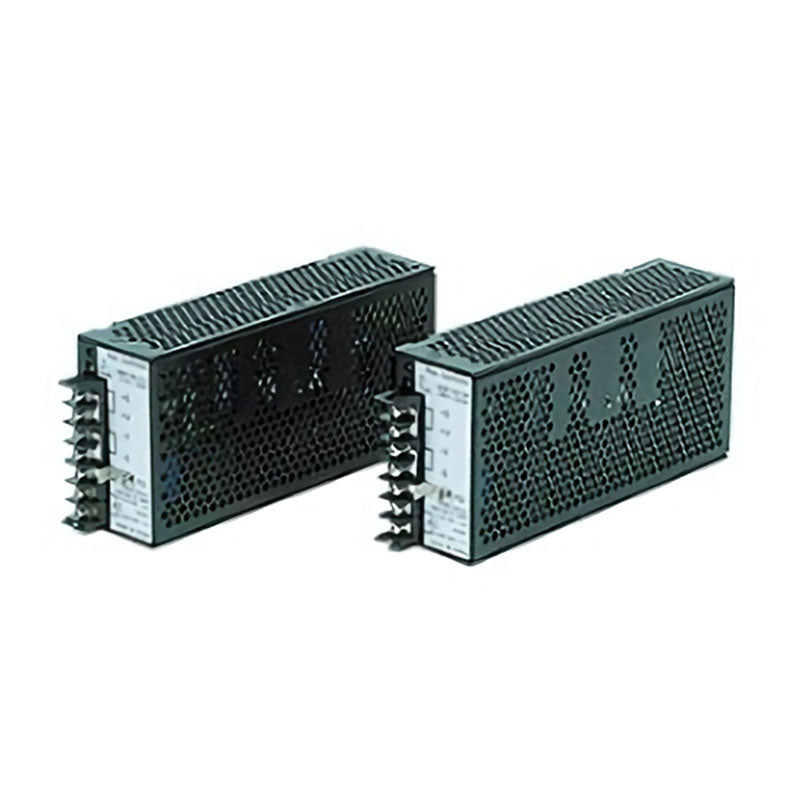

Switching Mode Power Supply MSF150-05

?

MODEL

MSF200-24

MSF200-28

MSF200-36

MSF200-48

INPUT

VOLTAGE, FREQUENCY

AC100-120V / 200-240V (AC 90~ 132V / 180 ~ 264V or AC 225 ~ 370V), 50/60Hz (47 ~ 440Hz) User Selectable

CURRENT [A]

110V

4.1 ( I?=100%)

220V

2.0 (I?=100%)

EFFICIENCY [%]

110V

80 typ

80 typ

82 typ

82 typ

220V

INRUSH CURRENT

15A typ(ACIN 110V, I?=100%), 30A typ(ACIN 220V, I?=100%) at cold start.

OUTPUT

VOLTAGE [V]

24

28

36

48

CURRENT [A]

8.3

7.1

5.5

4.1

REGULATION, LINE [mV]

120 Max

140 Max

180 Max

240 Max

REGULATION, LOAD [mV]

240 Max

280 Max

360 Max

480 Max

RIPPLE [mVp-p]

240 Max

280 Max

360 Max

480 Max

RIPPLE, NOISE [mVp-p]

290 Max

330 Max

410 Max

530 Max

TEMPERATURE DRIFT 0~+50? [mV]

360 Max

420 Max

540 Max

720 Max

RISE TIME [ms]

800 max (AC IN 110V, I?=100%)

HOLDING TIME [ms]

15 typ (AC IN 110V, I?=100%)

PROTECTION CIRCUIT

OVER CURRENT PROTECTION

Works at over 110% of rating and recovers automatically

OVER VOLTAGE PROTECTION

Works at 115 ~ 140% of rating

ELECTRICALLY ISOLATED

INPUT-OUTPUT

AC 3,000V 1 minute current 20mA, DC 500V 100M? (At room temperature & humidity)

INPUT-CASE, FG

AC 2,000V 1 minute current 20mA, DC 500V 100M? (At room temperature & humidity)

OUTPUT-CASE, FG

AC 500V 1 minute current 100mA, DC 500V 100M? (At room temperature & humidity)

ENVIRONMENT

OPERATING TEMP AND HUMID

-10 ~ +50?, 20 ~ 90% RH(Non condensing)

STORAGE TEMP AND HUMID

-20 ~ +75?, 20 ~ 90% RH(Non condensing)

VIBRATION

10 ~ 55Hz at 1G, 3 minutes period, 30 minutes along ? X, Y and Z axis

IMPACT

10G for 20ms once on each X, Y and Z axis

SAFETY

SAFETY REGULATION

UL, C-UL, CE

UL, C-UL, CE

UL, C-UL, CE

UL, C-UL, CE

LINE CONDUCTED RF VOLTAGE

Complied with FCC Part15 and EN55022 Class A Limits
