Geared Motor TGM-0475 for Chip Conveyors
Brand: IndustryNest
SKU:
YR66064
Availability:
In Stock (ships from Chicago in 1-2 business days)
$1,035.00
Geared Motor TGM-0475 for Chip Conveyors
$1,035.00
Product Specifications

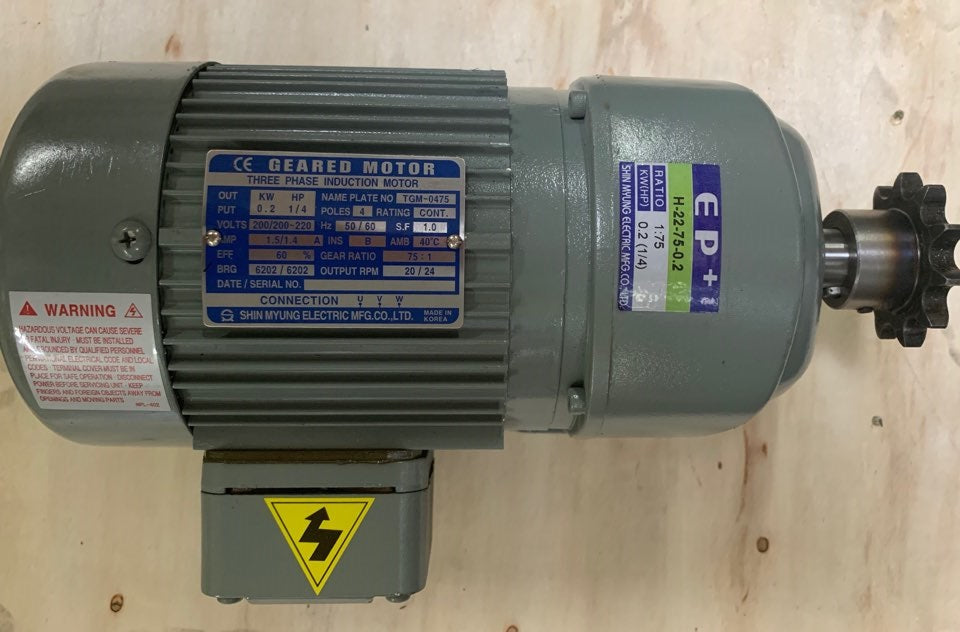

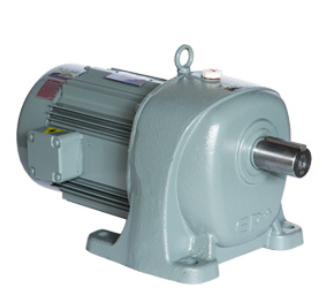

The Geared Motor TGM-0475 is designed specifically for chip conveyors in machine tools. Its robust construction and reliable performance make it ideal for ensuring efficient operation. Manufactured by Shin Myung Electric Mfg Co., Ltd., this motor provides a high torque output at low speeds, perfect for the demanding conditions of chip conveying.
| Specifications | |
|---|---|
| Type | 3 Phase Induction Motor |
| Out-Put | 0.2 kW, 1/4 HP |
| Voltage | 200V/200~200V |
| Hz | 50/60 |
| S.F. | 1.0 |
| Amperage | 1.5/1.4 A |
| Ins | B |
| Ambient Temperature | 40?C |
| Eff. | 50% |
| Geared Ratio | 75 : 1 |
| GRG | 6202/6202 |
| Out-Put RPM | 20/24 rpm |
