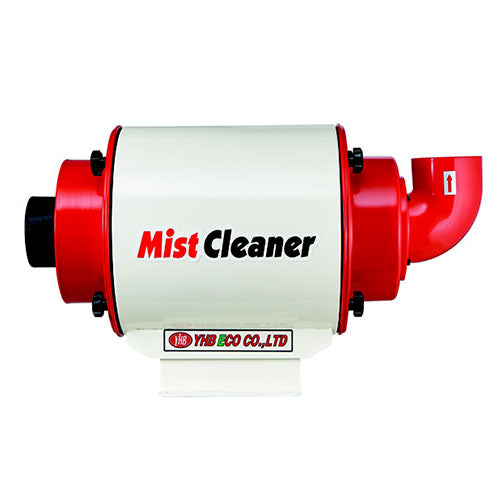

YHB Mist Cleaner YMC-300
  • YHB Mist Cleaner YMC-300
YHB Mist Cleaner YMC-300

YHB Mist Cleaner YMC-300

Brand: YHB Eco
SKU: YMC300
Availability: In Stock (ships from Chicago in 1-2 business days)
$2,100.00
Freight Item (150+ lbs): This item ships via LTL Freight. Shipping will be coordinated after checkout, or contact us for a direct freight quote.
YHB Mist Cleaner YMC-300
YHB Mist Cleaner YMC-300
$2,100.00

Product Description

YHB ECO’s oil mist cleaner holds the number one market share in South Korea and is widely used by leading machine tool manufacturers in Japan and South Korea.

These mist cleaners are designed for easy installation on existing machine tools, utilizing advanced centrifugal force and filter technology to achieve 99.8% dust collection efficiency.

  • YMC Type : Water-Soluble Cutting Oil
    - Optimized for water-soluble cutting oil
    - Standard model
    - Easy to install and ideal for on-site machine tools

Product Specifications

MODEL YMC-300
POWER 3Phase 220V/ 380V / 440V (50/60Hz)
Motor(Kw) 0.4
Ampere(A) 1.7/1.0/0.8
RPM 3450
Wind Flow Rate(㎥/min) 7
Static Pressure(mmAq) 90
Noise(dB) 65±2
Collection Rate(%) 99.8%
Inlet, Outlet(Ø) 100
Weight(kg) 25
Filter Material Polyester

*Installation of filter decreases the air flow by about 8%.

**The above specification is based on 60Hz. When 50Hz is applied, the air flow volume decreases by about 20%.

External Dimensions
YMC-300

 MODEL A B C D E F G H I J
 YMC-300 320 409 180 220 210 240 Ø100 322 680 188

Installation Applications

YMC300-Application

Application for YMC 300

  with After filter

YMC300-Application

Application for YMC 300

Application for YMC 300

Brand YHB Eco
Availability In Stock
Estimated Delivery 21 Days
