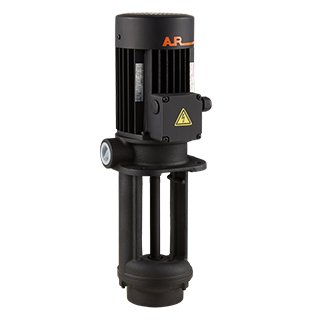

Aryung ACP-EF coolant pump with air bubble removal
  • Aryung ACP-EF coolant pump with air bubble removal
  • Aryung ACP-EF dimension drawing
  • Aryung ACP-EF dimension table
  • Aryung ACP-EF performance curve
Aryung Coolant Pump ACP-600EF (50/60 Hz)

Aryung Coolant Pump ACP-600EF (50/60 Hz)

Brand: Aryung
SKU: ACP600EF
Availability: Backorder (estimated delivery: 30 Days)
Request for Quote

The Aryung ACP-600EF is a 600 W submerged coolant pump that removes air bubbles from the fluid as it pumps. It is built for grinding oil, cutting oil and coolant where entrained air causes trouble. Removing the air helps with oil temperature rise, pump noise, oil oxidation and breakdown, and lost discharge efficiency.

Runs on 50 Hz or 60 Hz. Performance differs by frequency, as shown in the table.

Built to order: this model is made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

50 Hz 60 Hz
Discharge volume 70 L/min 104 L/min
Head 6 m 7.5 m
Voltage 200 / 380 / 415 V 220 / 380 / 440 V
Current 3.3 / 1.9 / 1.8 A 3.8 / 2.2 / 1.9 A
Outlet PS 1"
Immersion depth 250 mm
Motor output 600 W, 3-phase
Weight 21 kg
Protection class IP54
Insulation class F

Use

  • Fluids: water, water-soluble coolant, cutting oil, grinding oil
  • Viscosity: 12 to 32 cSt
  • Fluid temperature: 80°C or below
  • Motor frame: aluminum die cast (ALDC). Pump body and casing: cast iron. Shaft: steel.

Dimensions

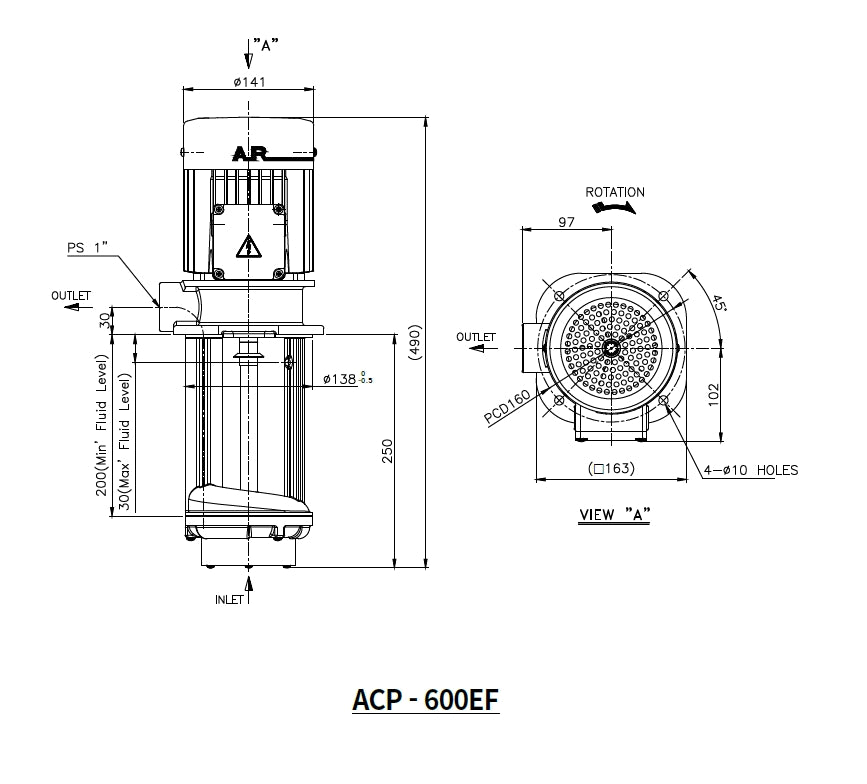

Aryung ACP-EF dimension drawing

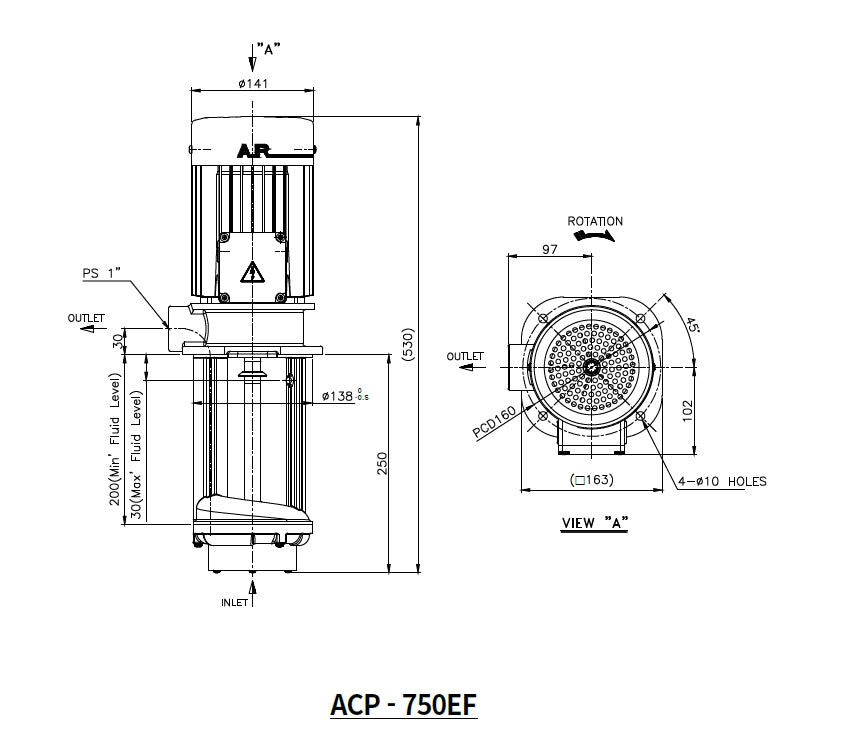

Aryung ACP-EF dimension table

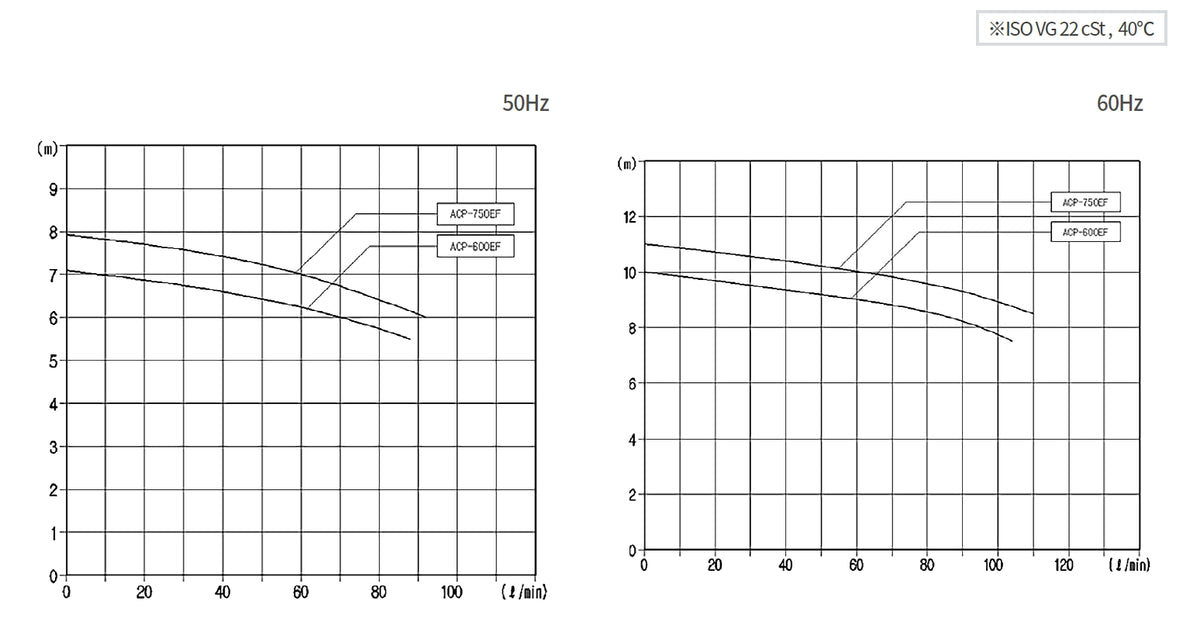

Performance curve

Aryung ACP-EF performance curve

Model number guide

ACP = Aryung coolant pump, 600 = motor output in watts, EF = pump type. A voltage code is added when ordering: 2/2 = 200/220 V, 2/3 = 220/380 V, 4/4 = 415/440 V.

Downloads

Specifications from Aryung's 2026 coolant pump catalog. Confirm voltage and dimensions with us before ordering.
