Aryung Coolant Pump ACPQ-300HSP 200 (50/60 Hz)

Aryung Coolant Pump ACPQ-300HSP 200 (50/60 Hz)

Brand: Aryung
SKU: ACPQ300HSP200
Availability: Backorder (estimated delivery: 30 Days)
Request for Quote

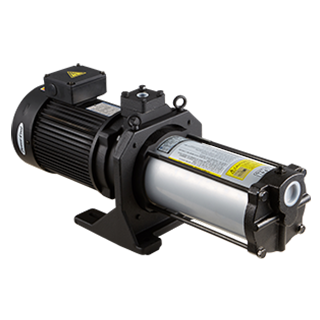

The Aryung ACPQ-300HSP 200 is a 2.9 kW horizontal multistage centrifugal coolant pump for high-precision, high-speed machine tools that need high coolant pressure. The motor is set apart from the pump so its heat does not pass into the oil, and the impellers are stainless steel for efficiency and corrosion resistance. It is not self-priming.

Runs on 50 Hz or 60 Hz. Performance differs by frequency, as shown in the table.

Built to order: this model is made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

50 Hz 60 Hz
Discharge volume 20 L/min 20 L/min
Head 140 m 200 m
Voltage 200 / 380 / 415 V 220 / 380 / 440 V
Current 10.1 / 5.8 / 5.4 A 11.0 / 6.4 / 6.0 A
Inlet / outlet PS 1/2" / PS 1/2"
Motor output 2900 W, 3-phase
Weight 64 kg
Protection class IP54
Insulation class F

Use

  • Fluids: water, water-soluble coolant, cutting oil, grinding oil
  • Viscosity: 1 to 2 cSt
  • Fluid temperature: 80°C or below

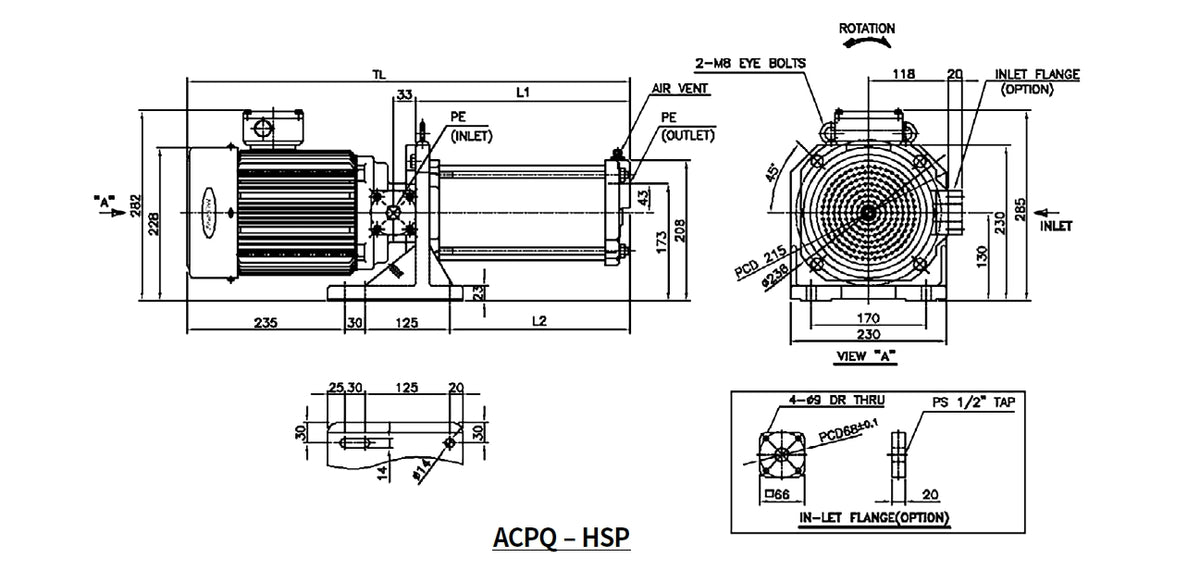

Dimensions

Aryung ACPQ-HSP dimension drawing

Model L1 L2 L3 TL H1 Inlet Outlet
ACPQ-300HSP 200 358 308 227 690 271 PS 1/2" PS 1/2"

Dimensions in mm.

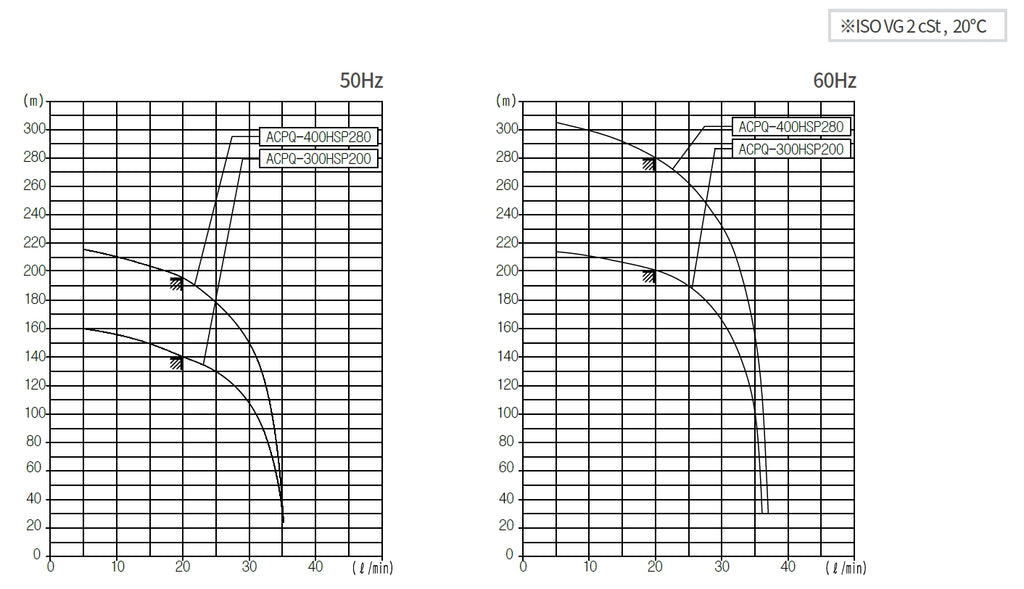

Performance curve

Aryung ACPQ-HSP performance curve

Model number guide

ACPQ = Aryung coolant pump, 300 = motor size (300 = 2900 W), HSP = pump type, 200 = head in meters. A voltage code is added when ordering: 2/2 = 200/220 V, 2/3 = 220/380 V, 4/4 = 415/440 V.

Downloads

Specifications from Aryung's 2026 coolant pump catalog. Confirm voltage and dimensions with us before ordering.
