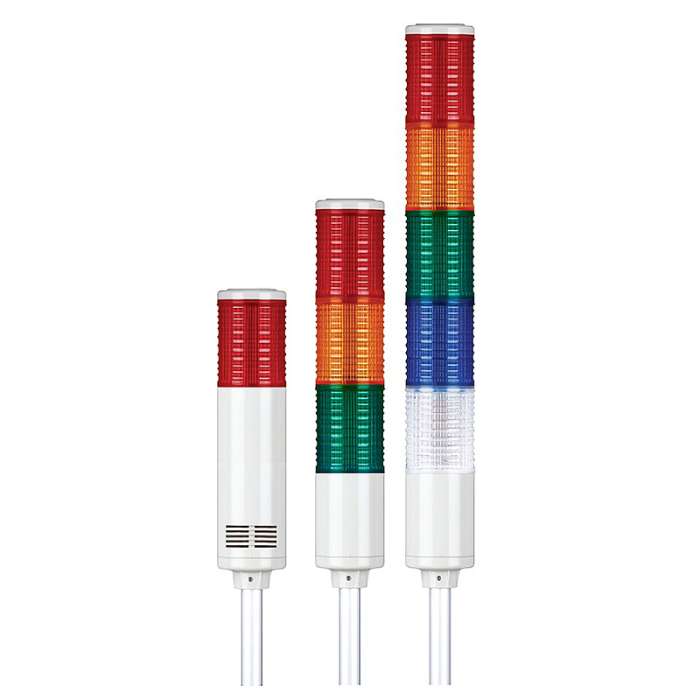

Part : 3 Step LED Tower Lights
Specifications : Ø56mm pole mount, bulb steady/flashing tower lights
Manufacturer Part Number : ST56B-3 DC24V
Manufacturer : QLight
Categories:
Product Description
• Can select from a variety of mount bracket for the pole mount style
• Features a light bulb with excellent durability and longevity
• Built-in buzzer available (Volume: Max. 90dB at 1m)
• Flashing rate: 60-80 flashes/min
• Available in customized color arrangements
• Materials: Lens-AS, Housing-ABS, Pole-Al
• Ambient operating temperature: -25°C to +50°C
• Protection rating: Standard type-IP44, Built-in buzzer type-IP23
•Certificates: CE Compliant
Product Specifications
| Product Specifications | |||||
| Model Number | ST56B Steady | ||||
| Layer | 3 | ||||
| Voltage | AC/DC12V | AC/DC24V | AC110V | AC220V | |
| Current | 2.776A | 1.543A | 0.286A | 0.140A | |
| Bulb | Spec | 12V10W | 24V10W | 110V10W | 220V10W |
| Standard | T16x35 15S | T16x35 15S | T16x35 15S | T16x35 15S | |
| Part s no# | 9 | 10 | 12 | 13 | |
| Weight | 0.61 kg | 0.61 kg | 0.61 kg | 0.61 kg | |
| Color | R-Red, A-Amber, G-Green | ||||
| Signal/Audible Line Current (per each layer) Specifications | ||
| Voltage | Signal Line Current | Audible Line Current |
| AC/DC12V | 0.925A | 0.016A |
| AC/DC24V | 0.514A | 0.031A |
| AC110V | 0.095A | 0.027A |
| AC220V | 0.046A | 0.030A |

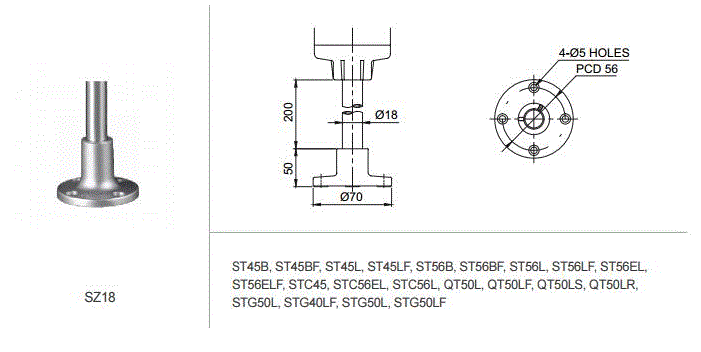

Tower Light Mounting Brackets
Round-shaped bracket for horizontal surface installation.
Material : Al
Color : Silver
