Aryung Cyclone Filter ARCF-32B

Aryung Cyclone Filter ARCF-32B

Brand: Aryung
SKU: ARCF-32B
Availability: Backorder (estimated delivery: on request)
Product type: Suction Filter
Request for Quote

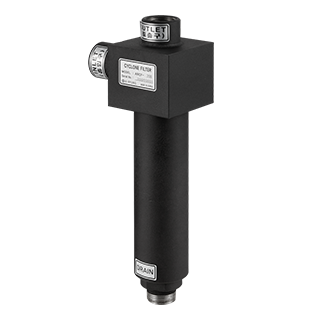

The Aryung ARCF-32B is a cyclone filter for machine tool coolant systems. The ARCF cyclone filter spins coolant at pressure so chips and sludge settle to the dirty drain and clean coolant leaves from the top outlet. It has no element to replace. Pair it with the recommended Aryung pump below.

Configured to order: made by Aryung in Korea. Lead time depends on the configuration. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Inlet / outlet Rc 1 1/4"
Drain Rc 1 1/4"
Flow rate 88 to 105 L/min
Recommended pump ACP-1100MF or ACP-1800MF
Working pressure range 1 to 3.5 bar
Drain orifice Ø7 mm

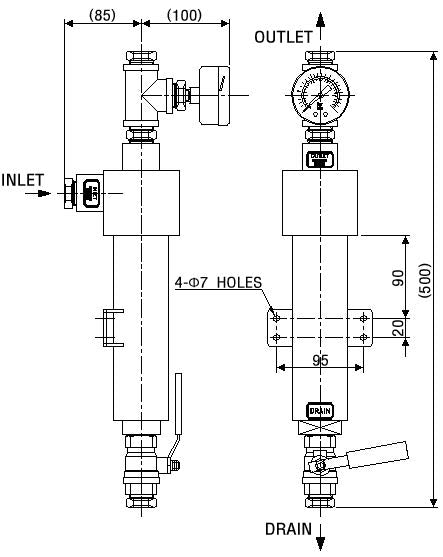

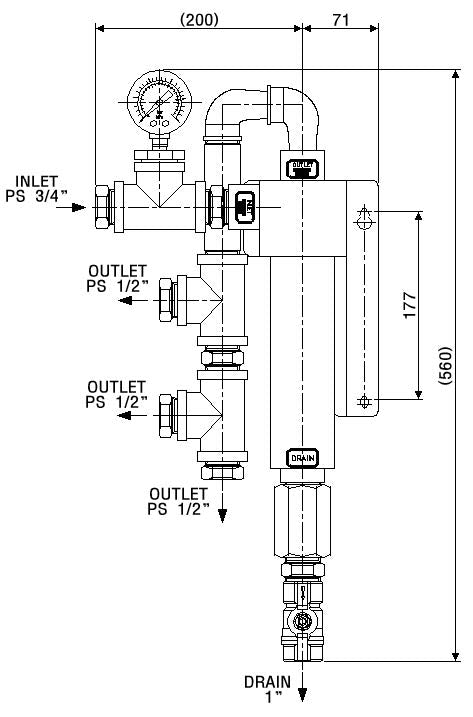

Drawings

Aryung ARCF cyclone filter drawing

Aryung ARCF cyclone filter drawing

Aryung ARCF cyclone filter drawing

Downloads

Specifications from Aryung's published data. Confirm configuration, voltage and connections with us before ordering.
