Aryung Flow Control Jet ASA-2 (20% Flow)

Aryung Flow Control Jet ASA-2 (20% Flow)

Brand: Aryung
SKU: ASA2
Availability: Backorder (estimated delivery: 30 Days)
Product type: Lubrication Fitting
Request for Quote

The Aryung ASA-2 is a flow control jet for proportional oil lubrication systems. It threads into a distributor outlet and meters that outlet's share of the oil. Code 2 gives 20% relative flow; higher codes pass more oil. AJB and ASA are two body styles with the same flow codes; see the drawings below.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Flow code 2
Relative flow rate 20%
Working pressure 0.15 to 2.0 MPa
Viscosity 20 to 500 cSt

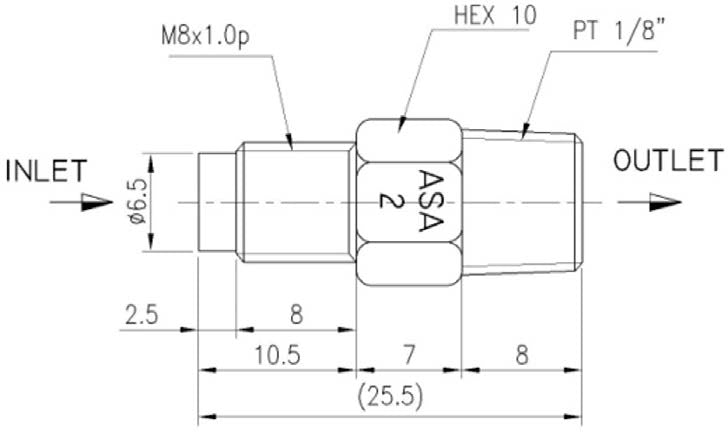

ASA-2 drawing

ASA-2 drawing

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
