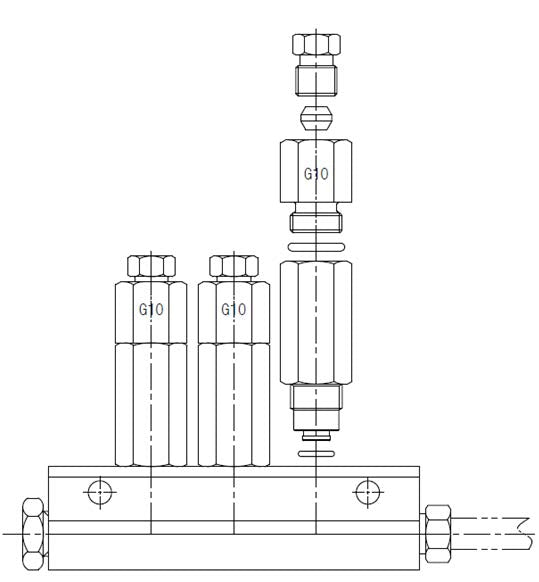

  • Aryung PVG installation example
Aryung Grease Metering Valve PVG-20 (0.2 cc per Stroke)

Aryung Grease Metering Valve PVG-20 (0.2 cc per Stroke)

Brand: Aryung
SKU: PVG20
Availability: Backorder (estimated delivery: 30 Days)
Product type: Piston Distributor
Request for Quote

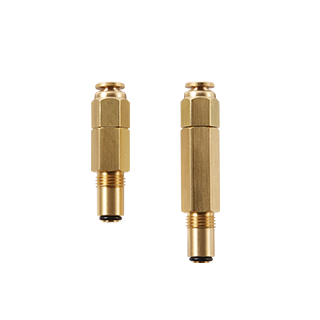

The Aryung PVG-20 is a positive-displacement metering valve for centralized grease systems. It delivers a fixed 0.2 cc to its point each cycle. Add -S to the part number for a screwed outlet instead of one-touch.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Discharge per cycle 0.2 cc
Working pressure 1.5 MPa or more
Grease NLGI #000 to #1
Length L 55 mm
Inlet thread (A) M10 x 1.0
Outlet (B) M8 x 1.0, one-touch

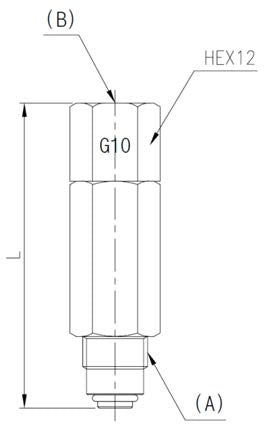

PVG-20 drawing

PVG-20 drawing

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
