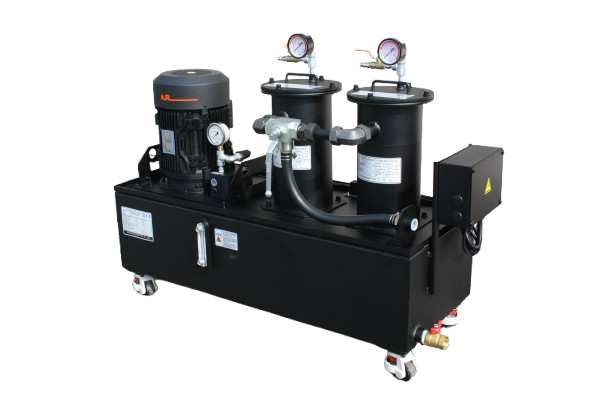

Aryung ACFC-G17-50-B25-D high-pressure coolant system
  • Aryung ACFC-G17-50-B25-D high-pressure coolant system

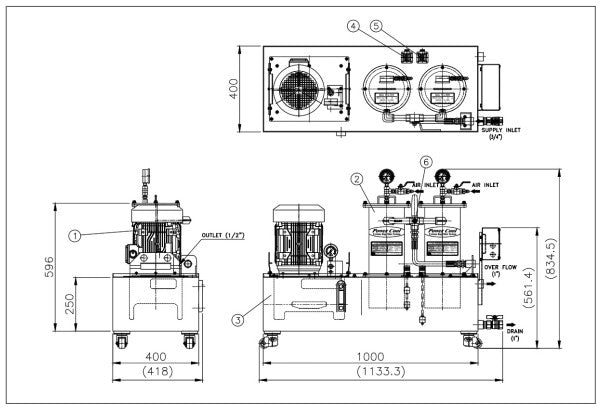

  • Aryung ACFC-G17-50-B25-D dimension drawing

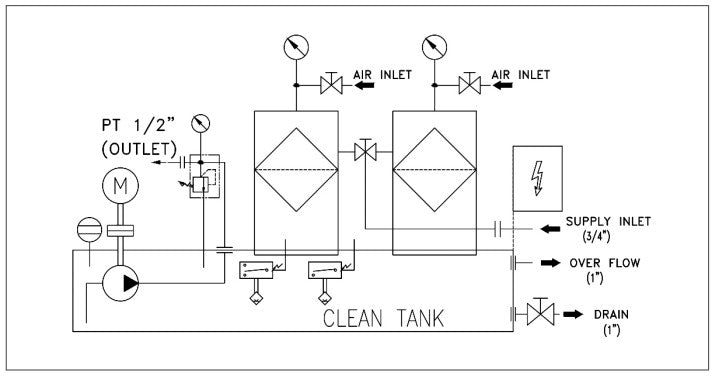

  • Aryung ACFC-G17-50-B25-D circuit diagram
Aryung High-Pressure Coolant System ACFC-G17-50-B25-D (50/60 Hz)

Aryung High-Pressure Coolant System ACFC-G17-50-B25-D (50/60 Hz)

Brand: Aryung
SKU: ACFC-G17-50-B25-D
Availability: Backorder (estimated delivery: on request)
Product type: Coolant System
Request for Quote

The Aryung ACFC-G17-50-B25-D is a high-pressure coolant system for machine tools (open detached type, bag filter, 50 bar). The ACFC-G17-50-B25-D is an open, detached 50 bar unit with a 25 µm bag filter and a 100 L clean tank. The valves sit on a separate block, which makes maintenance easy. It is rated for both water-soluble coolant and VG32 oil.

Power: runs on 50 Hz or 60 Hz, 3-phase.

Configured to order: made by Aryung in Korea. Lead time depends on the configuration. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Motor 4.0 kW, 4-pole
Voltage 3-phase, 220/380 V, 50/60 Hz
Current, 50 / 60 Hz 14.5/8.4 A / 15.2/8.8 A
Working pressure 50 bar (5.0 MPa)
Fluid Water-soluble coolant (VG2) or Velocite oil (VG32)
Standard test nozzle Ø1.5 mm (10.0 L/min on coolant, 13.6 L/min on oil)
Clean tank 100 L
Bag filter 25 µm
Supply inlet PT 3/4"
Discharge outlet PT 1/2"
Drain / overflow 1" / 1"
Control External control
Noise 80 dB(A) or less

Drawings

Aryung ACFC series drawing

Aryung ACFC series drawing

Downloads

Specifications from Aryung's published data. Confirm configuration, voltage and connections with us before ordering.
