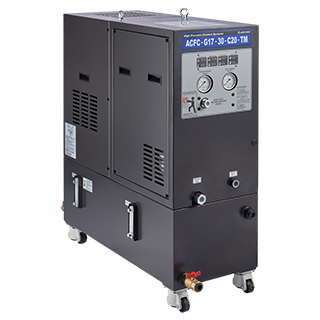

Aryung ACFC cabinet high-pressure coolant system
  • Aryung ACFC cabinet high-pressure coolant system
  • Aryung ACFC drawing
  • Aryung ACFC drawing
Aryung High-Pressure Coolant System ACFC-S20-30 (50/60 Hz)

Aryung High-Pressure Coolant System ACFC-S20-30 (50/60 Hz)

Brand: Aryung
SKU: ACFC-S20-30
Availability: Backorder (estimated delivery: on request)
Product type: Coolant System
Request for Quote

The Aryung ACFC-S20-30 is a high-pressure coolant system for machine tools (cabinet detached type, cyclone filter with dirty tank). The ACFC cabinet unit is a detached high-pressure coolant system with separate dirty and clean tanks. A dirty pump (ACP-250F) lifts coolant to a built-in cyclone filter, so the filter never needs replacing. A dual-filter version adds an element or bag filter after the cyclone to catch fine particles.

Power: runs on 50 Hz or 60 Hz, 3-phase.

Configured to order: made by Aryung in Korea. Lead time depends on the configuration. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Motor 3.0 kW, 2-pole
Max. pressure 30 bar (3.0 MPa)
Max. flow, 50 / 60 Hz 27 / 34 L/min
Relief valve range 5 to 100 bar
Standard test nozzle Ø2.0 mm (10.0 L/min)
Clean tank / dirty tank 27 L / 27 L (140 L clean tank option)
Drain or overflow Rc 1" (Rc 2 1/2" with 140 L tank)
Discharge pressure sensor Option
Noise 75 dB(A) or less
Voltage 3-phase, 220/380 V, 50/60 Hz
1st filter Cyclone filter, built in
2nd filter (dual filter version) Element or bag filter
Dirty pump ACP-250F, 250 W
Supply inlet Rc 1" or 3/4"
Discharge outlet Rc 1/2"
Dirty outlet Rc 3/4"
Control External control
Supply pressure sensor Option

Main components

  • High-pressure pump
  • Cyclone filter
  • Dirty pump
  • Dirty tank and clean tank
  • Pressure switches (supply and high pressure)
  • Float switches (dirty and clean tank)
  • Pressure gauges (supply and high pressure)
  • Air breather
  • Fluid level gauges

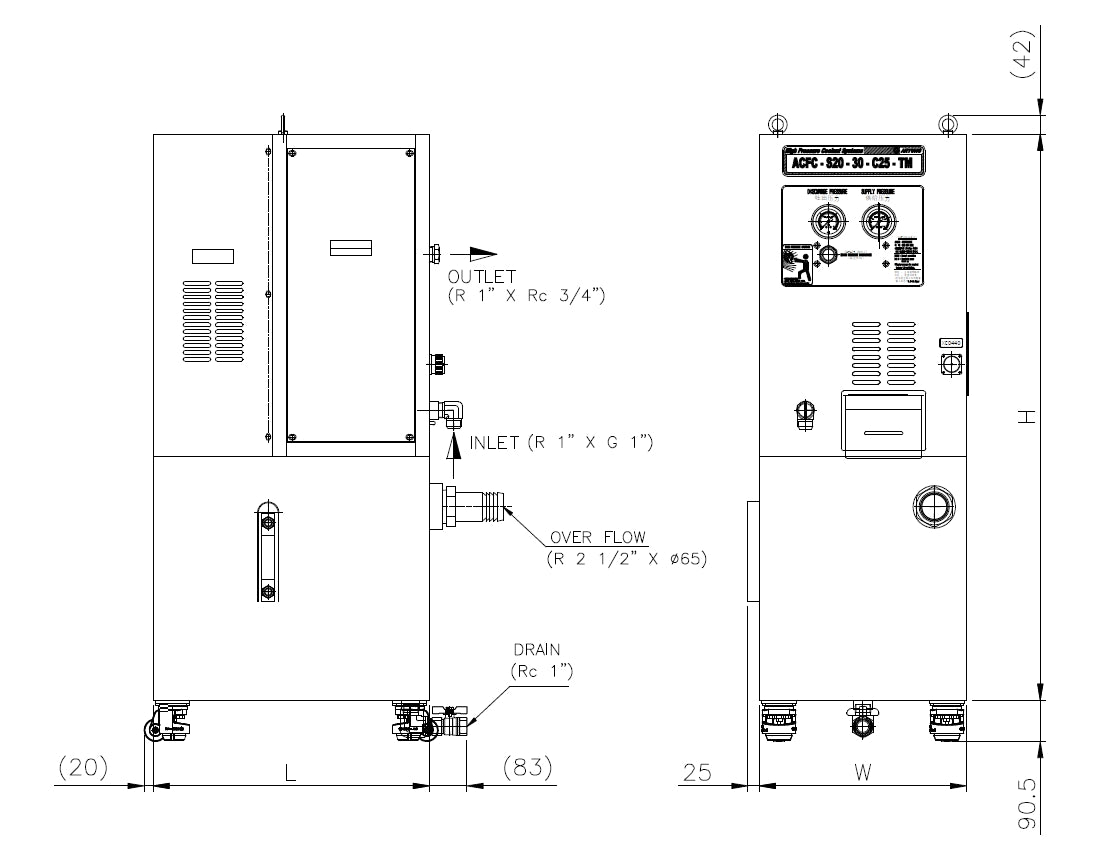

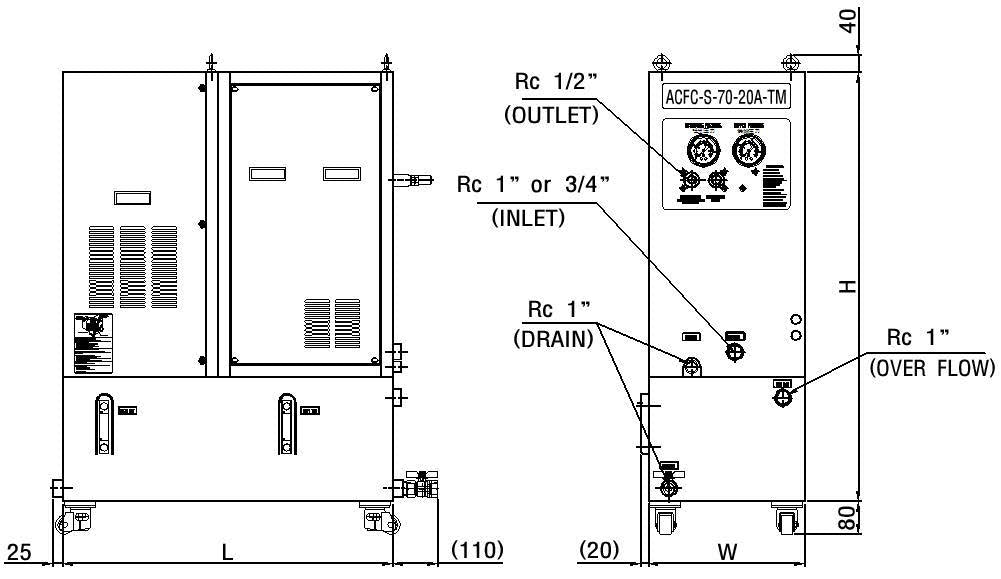

Drawings

Aryung ACFC series drawing

Aryung ACFC series drawing

Aryung ACFC series drawing

Downloads

Specifications from Aryung's published data. Confirm configuration, voltage and connections with us before ordering.
