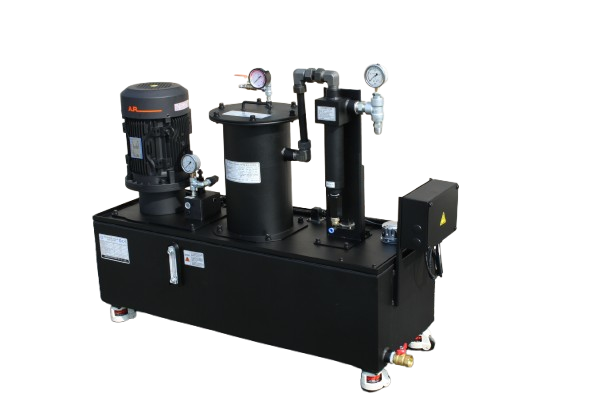

  • Aryung ACFC open type high-pressure coolant system

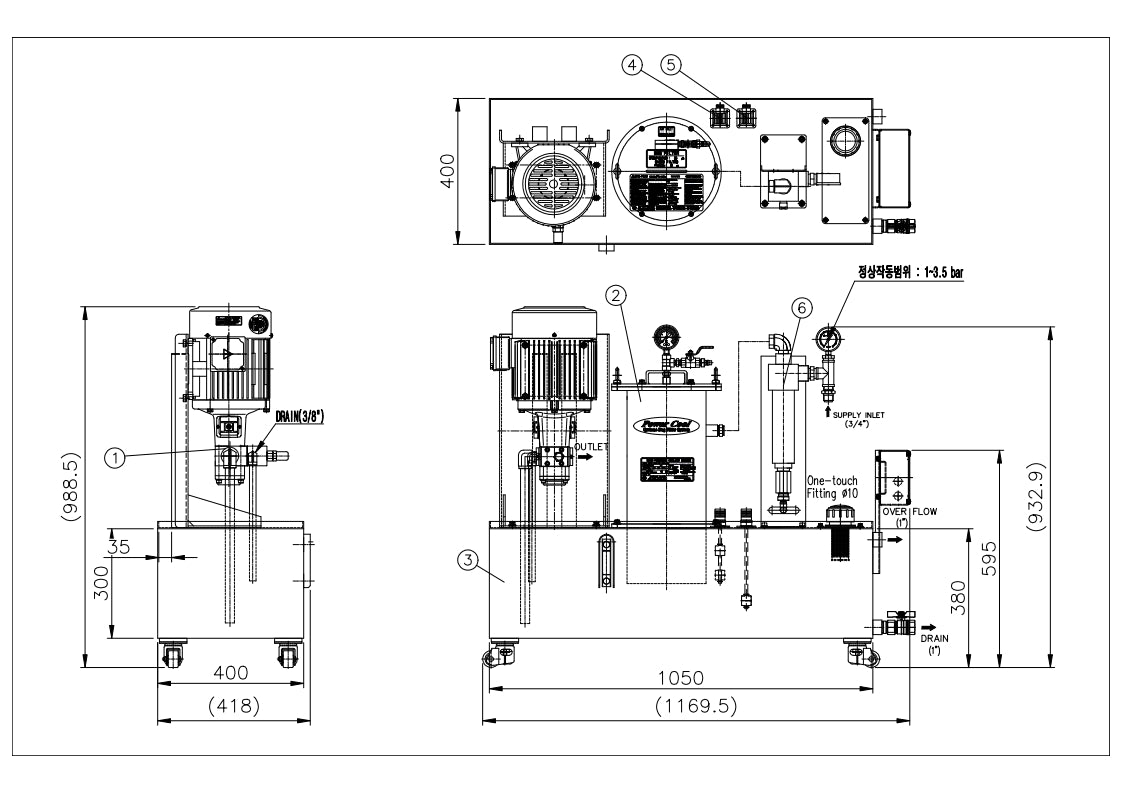

  • Aryung ACFC-T216-30-C15-B25 dimension drawing

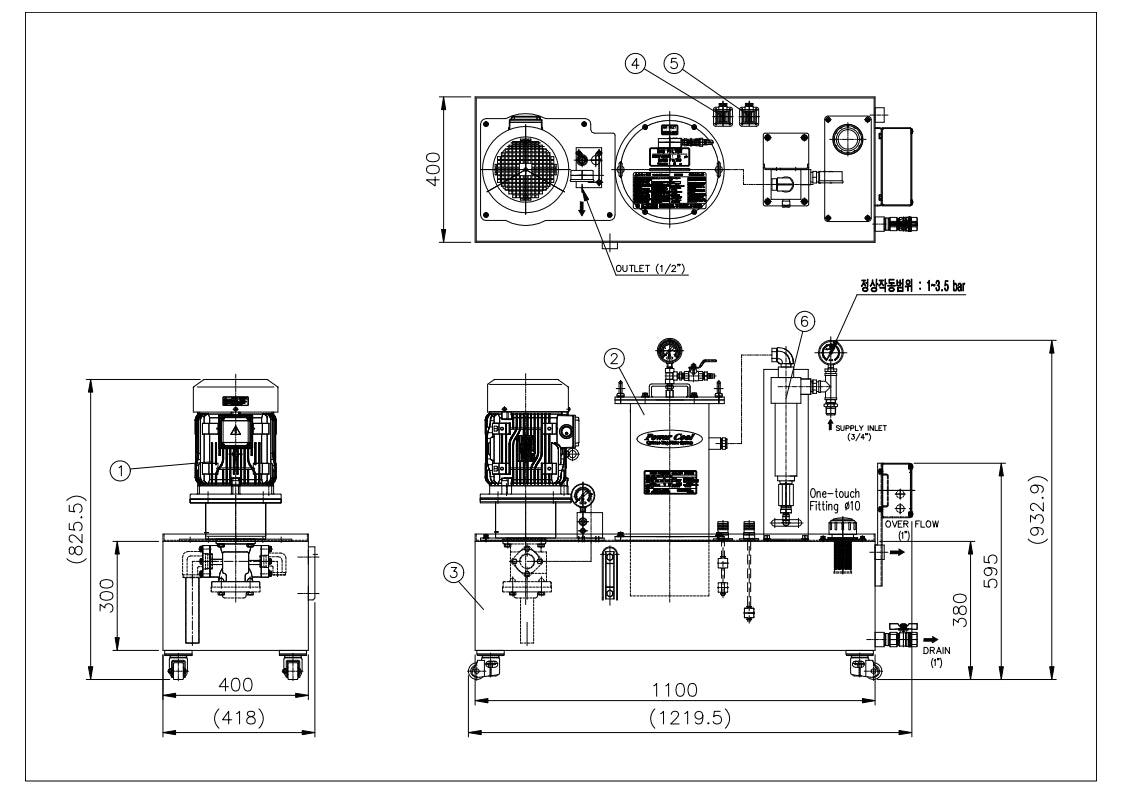

  • Aryung ACFC-T330-30-C15-B25 dimension drawing
Aryung High-Pressure Coolant System ACFC-T216-30-C15-B25 (50/60 Hz)

Aryung High-Pressure Coolant System ACFC-T216-30-C15-B25 (50/60 Hz)

Brand: Aryung
SKU: ACFC-T216-30-C15-B25
Availability: Backorder (estimated delivery: on request)
Product type: Coolant System
Request for Quote

The Aryung ACFC-T216-30-C15-B25 is a high-pressure coolant system for machine tools (open detached type, cyclone and bag filter). This ACFC open-type unit uses a cyclone filter as the first stage and a bag filter as the second stage, for more complete filtration ahead of the high-pressure pump. It sits beside the machine with its own clean tank.

Power: runs on 50 Hz or 60 Hz, 3-phase.

Configured to order: made by Aryung in Korea. Lead time depends on the configuration. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Motor 3.0 kW
Discharge volume, 50 / 60 Hz 14.0 / 18.0 L/min
Current, 50 / 60 Hz 12.5/7.2 A / 11.0/6.4 A
Standard test nozzle Ø1.5 mm
Clean tank 120 L
Voltage 3-phase, 220/380 V
Max. pressure 30 bar (3.0 MPa)
1st filter Cyclone filter, 15B (35 L/min) or 20B (40 L/min)
2nd filter Bag filter, 25 or 50 µm
Supply inlet PT 3/4"
Discharge outlet PT 1/2"
Drain / dirty drain 1" / 3/4"
Overflow 1"
Control External control
Supply and discharge pressure sensors Option
Noise 80 dB(A) or less

Drawings

Aryung ACFC series drawing

Aryung ACFC series drawing

Downloads

Specifications from Aryung's published data. Confirm configuration, voltage and connections with us before ordering.
