Aryung Lubrication Pump AMGP-01AF-T (50/60 Hz)

Aryung Lubrication Pump AMGP-01AF-T (50/60 Hz)

Brand: Aryung
SKU: AMGP-01AF-T-110V
Availability: Backorder (estimated delivery: 30 Days)
Product type: Lubrication Pump
Voltage: 100/110 V
Request for Quote

The Aryung AMGP-01AF-T is a analog-timer gear lubrication pump for quantitative (metering valve) systems for centralized oil lubrication on machine tools. It runs on 50 Hz or 60 Hz single-phase power.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Versions AMGP-01AF-T
Discharge volume 85 cc/min
Working pressure 1.7 MPa
Pressure range 0.2 to 1.7 MPa
Reservoir 1.8 L
Viscosity 30 to 220 cSt
Outlet PT 1/8" (Ø4 pipe)
Motor 15 W, single-phase
Voltage / current, 50 Hz 100 / 200 V, 1.4/0.7 A
Voltage / current, 60 Hz 110 / 220 V, 1.2/0.6 A
Weight 2.8 kg

Use

  • Fluid: lubricating oil, 30 to 220 cSt (use 32 cSt or lighter in winter)
  • Single-phase 2-pole motor
  • The pump runs on an intermittent timer: allow at least 2 minutes off for 1 to 10 s of run time, 3 minutes for 11 to 30 s, 5 minutes for 31 to 60 s, and 10 minutes for 61 to 99 s.

Dimensions

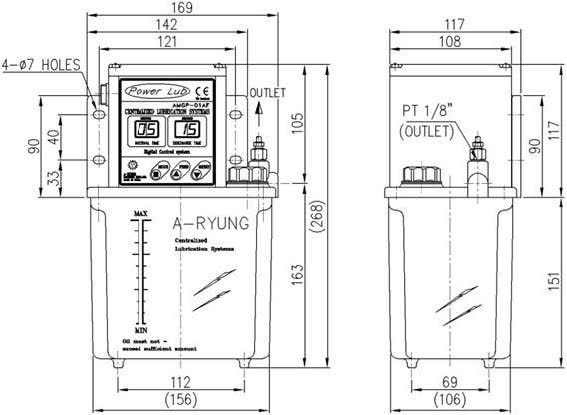

Aryung AMGP-01AF-T dimension drawing

Model number guide

F = float switch, T = quantitative type. Give your voltage when you request a quote.

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
