Aryung Lubrication Pump AMGP-01MF-T03 (50/60 Hz)
Brand: Aryung
SKU:
AMGP-01MF-T03-110V
Availability:
Backorder (estimated delivery: 30 Days)
Product type:
Lubrication Pump

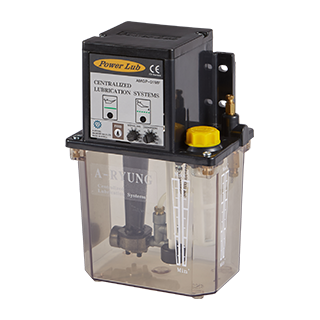

The Aryung AMGP-01MF-T03 is a timer-controlled gear lubrication pump with 3 L reservoir for centralized oil lubrication on machine tools. It runs on 50 Hz or 60 Hz single-phase power.
Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.
Specifications
| Versions | AMGP-01MF-T03 |
|---|---|
| Discharge per cycle | 5 to 150 cc |
| Stop (interval) time | 1 to 120 min |
| Pressure | 0.8 MPa |
| Reservoir | 3.0 L |
| Viscosity | 30 to 220 cSt |
| Outlet | PT 1/8" (Ø6 pipe) |
| Motor | 25 W, single-phase |
| Voltage / current, 50 Hz | 100 / 200 V, 2.0/1.0 A |
| Voltage / current, 60 Hz | 110 / 220 V, 1.8/0.9 A |
| Weight | 4.7 kg |
Use
- Fluid: lubricating oil, 30 to 220 cSt (use 32 cSt or lighter in winter)
- Single-phase 2-pole motor
- The pump runs on an intermittent timer: allow at least 2 minutes off for 1 to 10 s of run time, 3 minutes for 11 to 30 s, 5 minutes for 31 to 60 s, and 10 minutes for 61 to 99 s.

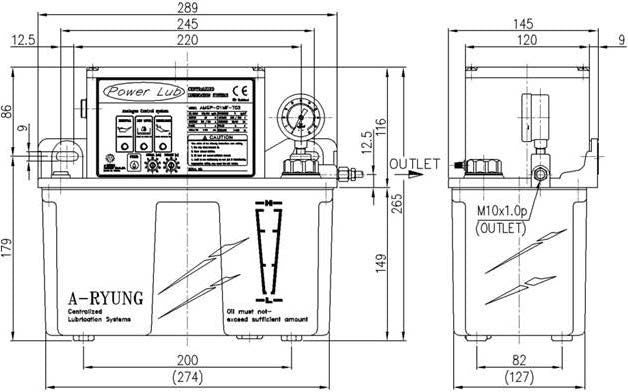

Dimensions
Model number guide
F = float switch, T03 = 3 L tank. Give your voltage when you request a quote.
Downloads
Specifications from Aryung's catalog. Confirm details with us before ordering.
