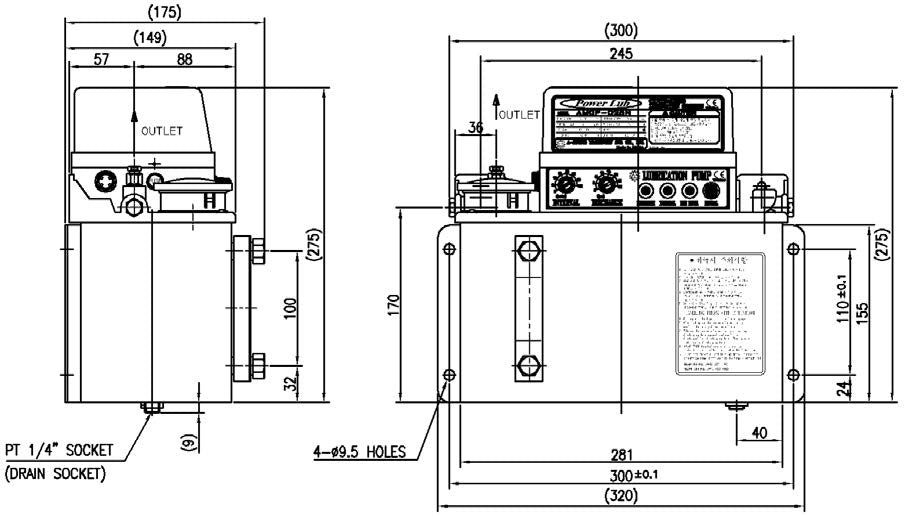

  • Aryung AMGP-025N-ST dimension drawing
Aryung Lubrication Pump AMGP-025N / AMGP-025N-ST (50/60 Hz)

Aryung Lubrication Pump AMGP-025N / AMGP-025N-ST (50/60 Hz)

Brand: Aryung
SKU: AMGP-025N-110V
Availability: Backorder (estimated delivery: 30 Days)
Product type: Lubrication Pump
Version: AMGP-025N
Voltage: 110-120V
Request for Quote

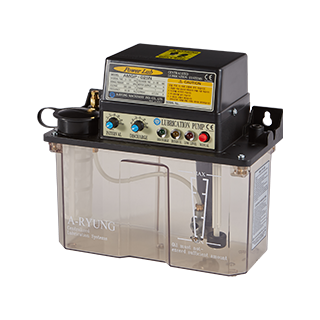

The Aryung AMGP-025N is a timer-controlled gear lubrication pump with 4 L reservoir for centralized oil lubrication on machine tools. It runs on 50 Hz or 60 Hz single-phase power.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Versions AMGP-025N, AMGP-025N-ST
Discharge volume 3 to 60 cc
Stop (interval) time 3 to 120 min
Pressure 0.8 MPa
Reservoir 4.0 L
Viscosity 30 to 220 cSt
Outlet PT 1/8" (Ø4 pipe)
Motor 15 W, single-phase
Voltage / current, 50 Hz 100 / 200 V, 1.4/0.7 A
Voltage / current, 60 Hz 110 / 220 V, 1.2/0.6 A
Weight 4.7 kg

Use

  • Fluid: lubricating oil, 30 to 220 cSt (use 32 cSt or lighter in winter)
  • Single-phase 2-pole motor
  • The pump runs on an intermittent timer: allow at least 2 minutes off for 1 to 10 s of run time, 3 minutes for 11 to 30 s, 5 minutes for 31 to 60 s, and 10 minutes for 61 to 99 s.

Dimensions

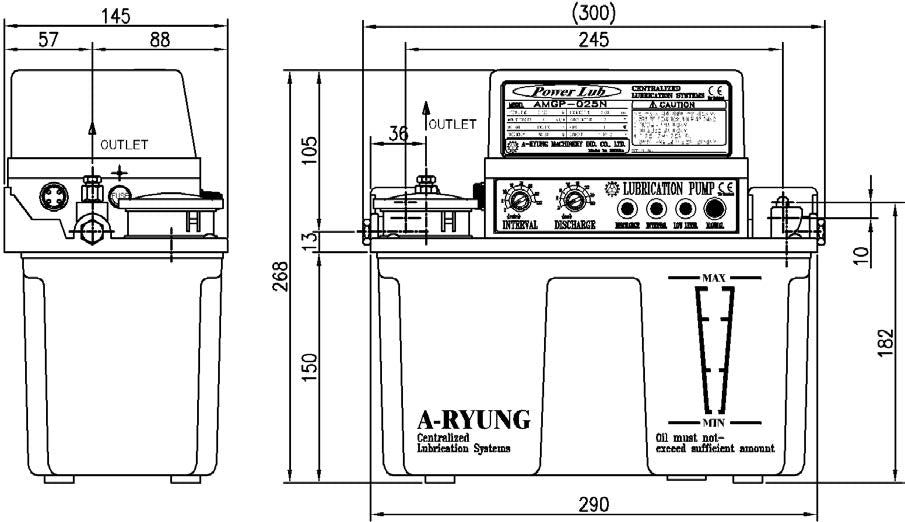

Aryung AMGP-025N dimension drawing

Aryung AMGP-025N dimension drawing

Ordering

Available as AMGP-025N and AMGP-025N-ST. Give your voltage when you request a quote.

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
