Aryung Lubrication Pump AMGP-200NS-T03 (50/60 Hz)

Aryung Lubrication Pump AMGP-200NS-T03 (50/60 Hz)

Brand: Aryung
SKU: AMGP-200NS-T03-110V
Availability: Backorder (estimated delivery: 30 Days)
Product type: Lubrication Pump
Voltage: 110-120V
Request for Quote

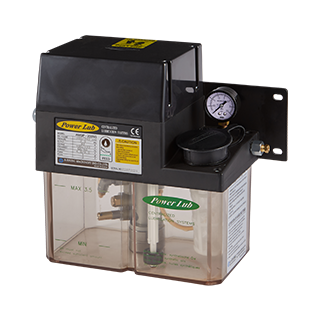

The Aryung AMGP-200NS-T03 is a high-output digital-control gear lubrication pump for centralized oil lubrication on machine tools. It runs on 50 Hz or 60 Hz single-phase power.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Versions AMGP-200NS-T03
Discharge volume 200 cc/min
Working pressure 2.0 MPa
Pressure range 0.8 to 2.5 MPa
Reservoir 3.0 L
Viscosity 30 to 220 cSt
Outlet PT 1/4" (Ø6 pipe)
Motor 42 W, single-phase
Voltage / current, 50 Hz 100 / 200 V, 4.6/2.1 A
Voltage / current, 60 Hz 110 / 220 V, 5.0/1.8 A
Weight 5.4 kg

Use

  • Fluid: lubricating oil, 30 to 220 cSt (use 32 cSt or lighter in winter)
  • Single-phase 2-pole motor
  • The pump runs on an intermittent timer: allow at least 2 minutes off for 1 to 10 s of run time, 3 minutes for 11 to 30 s, 5 minutes for 31 to 60 s, and 10 minutes for 61 to 99 s.

Dimensions

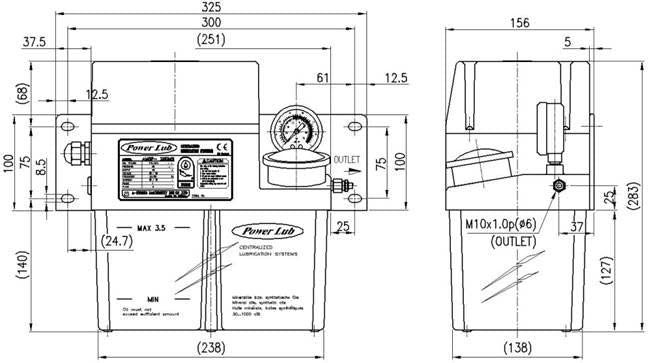

Aryung AMGP-200NS-T03 dimension drawing

Model number guide

T03 = 3 L tank. Give your voltage when you request a quote.

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
