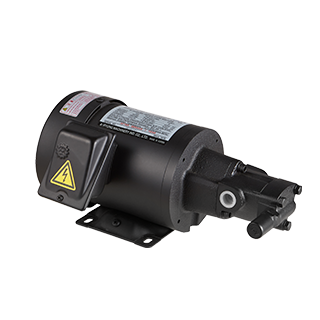

Aryung Motor T-Rotor Pump AMTP-11MS / MT (50/60 Hz)

Aryung Motor T-Rotor Pump AMTP-11MS / MT (50/60 Hz)

Brand: Aryung
SKU: AMTP100-11MS
Availability: Backorder (estimated delivery: 30 Days)
Product type: Trochoid Oil Pump
Motor: 100 W
Type: MS
Request for Quote

The Aryung AMTP-11MS / MT is a motor-driven T-rotor (trochoid) oil pump for machine tool lubrication, hydraulic and oil circulation systems. This is a compact low-pressure pump for small oil circulation and lubrication duties. MSVB and MTVB are the vertical mount versions. It runs on 50 Hz or 60 Hz; flow is higher at 60 Hz as shown below.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Discharge volume, 50 Hz (1500 rpm) 2.4 L/min
Discharge volume, 60 Hz (1800 rpm) 2.9 L/min
Max pressure 0.5 MPa
Inlet / outlet PT 1/8" / PT 1/8"
Motor options 100 W, 3-phase 4-pole (a 200 W single-phase 220 V, 60 Hz motor is also listed)

Use

  • Fluid: oils, 20 to 220 cSt at 40°C
  • Fluid temperature: 80°C or below with NBR seal
  • Pump body and cover: cast iron. Rotor: powder steel. Motor frame and shaft: steel.

Dimensions

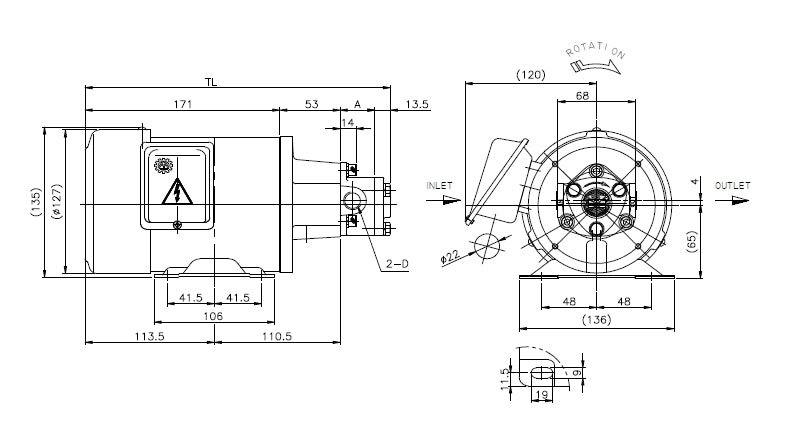

Aryung AMTP-MS/MT dimension drawing

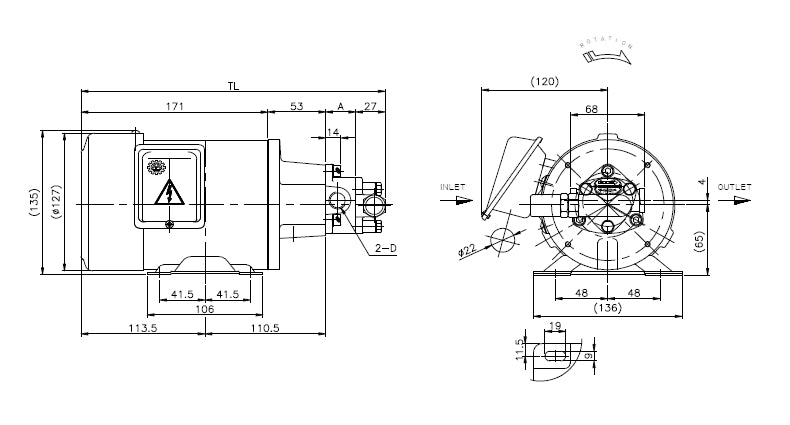

Aryung AMTP-MSVB/MTVB dimension drawing

Related models

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
