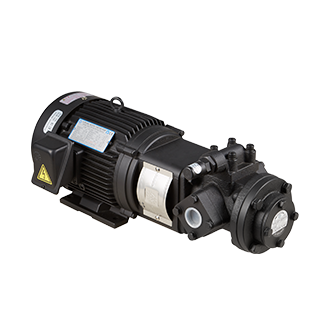

Aryung Motor T-Rotor Pump AMTP-340HFVB (50/60 Hz)

Aryung Motor T-Rotor Pump AMTP-340HFVB (50/60 Hz)

Brand: Aryung
SKU: AMTP1500-340HFVB
Availability: Backorder (estimated delivery: 30 Days)
Product type: Trochoid Oil Pump
Motor: 1500 W
Request for Quote

The Aryung AMTP-340HFVB is a motor-driven T-rotor (trochoid) oil pump for machine tool lubrication, hydraulic and oil circulation systems. The HFVB series is a high-flow pump built for large oil circulation and lubrication systems. It runs on 50 Hz or 60 Hz; flow is higher at 60 Hz as shown below.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Discharge volume, 50 Hz (1500 rpm) 78 L/min
Discharge volume, 60 Hz (1800 rpm) 93.6 L/min
Max pressure with 1.5 kW motor 0.3 MPa at 50 Hz, 0.3 MPa at 60 Hz
Max pressure with 2.2 kW motor 0.4 MPa at 50 Hz, 0.4 MPa at 60 Hz
Inlet / outlet PT 1 1/4" / PT 1"
Motor options 1.5 kW or 2.2 kW, 3-phase 4-pole
Pump weight 15.5 kg (motor not included)

Use

  • Fluid: oils, 20 to 220 cSt at 40°C
  • Fluid temperature: 80°C or below with NBR seal, 180°C or below with FKM seal (option)
  • Pump body, port housing and cover: cast iron. Rotor: powder steel. Shaft: steel. Motor frame: aluminum.

Dimensions

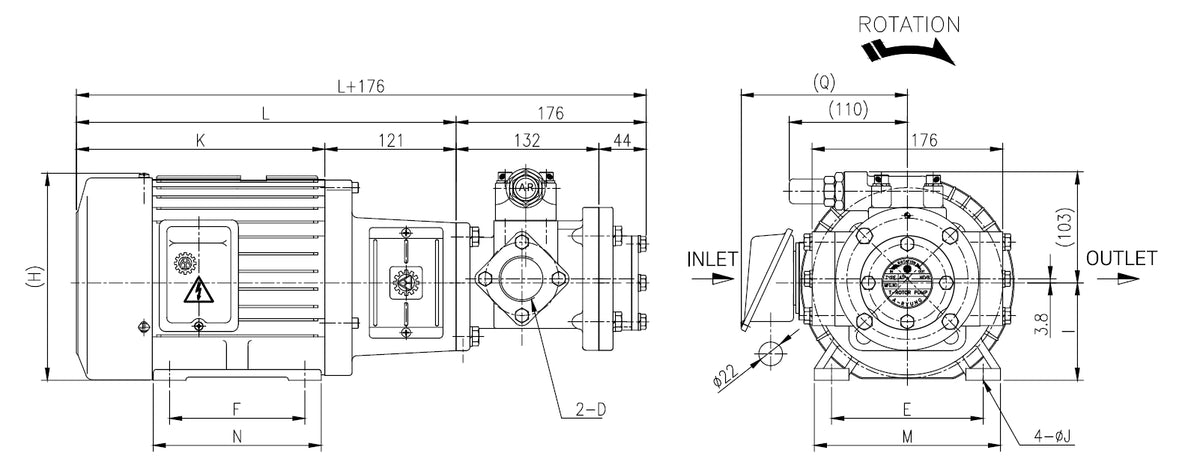

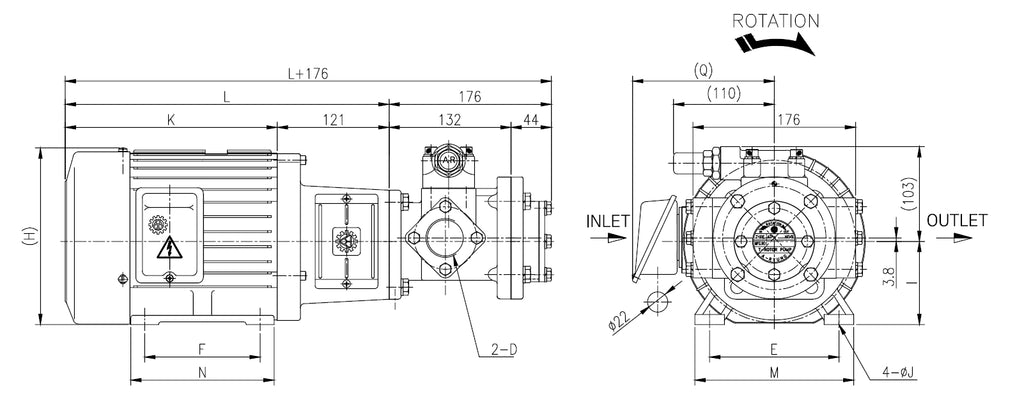

Aryung AMTP-HFVB dimension drawing

Related models

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
