Aryung ARU-R progressive grease distributor

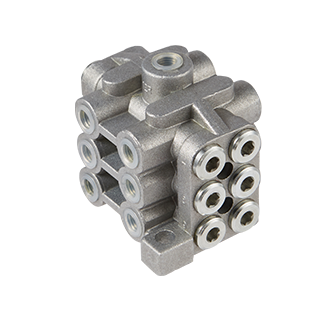

  • Aryung ARU-R progressive grease distributor

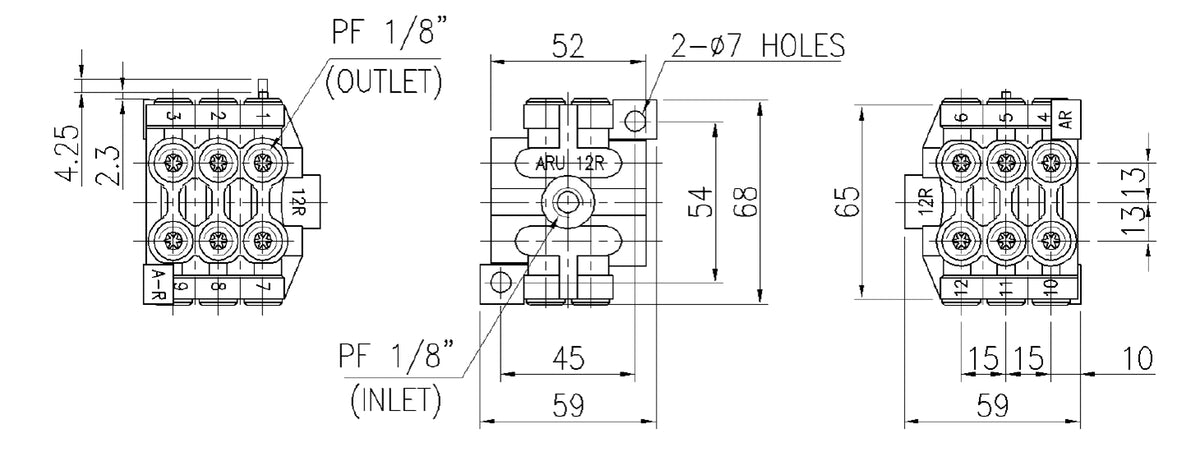

  • Aryung ARU-R dimension drawing
  • Aryung ARU-R dimension drawing
Aryung Progressive Grease Distributor ARU-4R (4 Outlets)

Aryung Progressive Grease Distributor ARU-4R (4 Outlets)

Brand: Aryung
SKU: ARU4R
Availability: Backorder (estimated delivery: 30 Days)
Product type: Piston Distributor
Request for Quote

The Aryung ARU-4R is a single-line progressive distributor for grease. It feeds 4 points in sequence, 0.3 cc each per cycle, and a blocked outlet stops the whole block so faults are easy to spot. A limit switch version (ARU-R-M) is available.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Outlets 4
Discharge 0.3 cc per stroke
Pressure min 1.5 MPa, max 15 MPa
Main pipe PF 1/4"
Branch pipe PF 1/8"
Grease NLGI #000-#1
Weight 0.64 kg

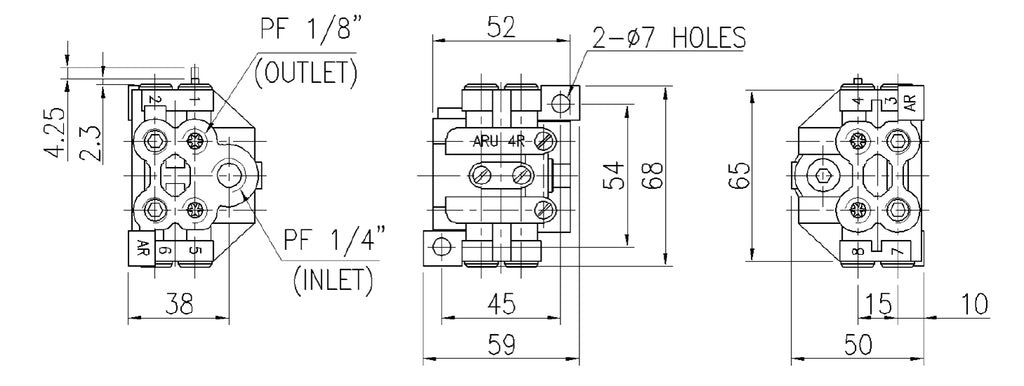

ARU-4R drawing

ARU-4R drawing

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
