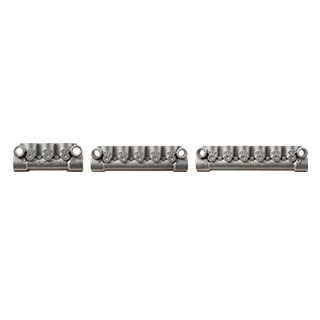

  • Aryung DB proportional distributor
  • Aryung DB distributor dimension drawing

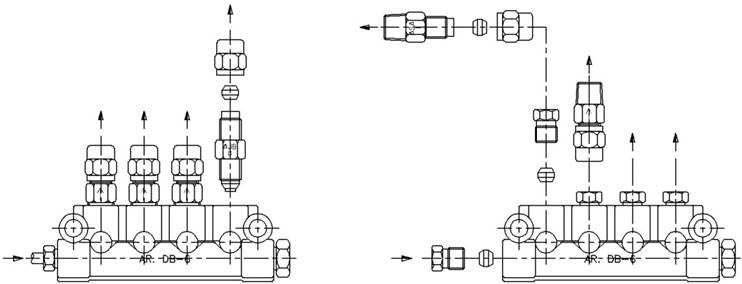

  • Aryung DB distributor installation example
Aryung Proportional Distributor DB-3M (3 Outlets, M8 x 1.0)

Aryung Proportional Distributor DB-3M (3 Outlets, M8 x 1.0)

Brand: Aryung
SKU: DB3M
Availability: Backorder (estimated delivery: 30 Days)
Product type: Piston Distributor
Request for Quote

The Aryung DB-3M is a proportional (resistance-type) oil distributor block with 3 outlets. It splits oil from a lubrication pump to each point, with AJB or ASA flow jets setting the share each outlet gets.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

Specifications

Outlets 3
Central and branch ports M8 x 1.0
Working pressure 0.8 MPa
Dimensions A / B / C (mm) - / - / 30
Weight 31 g

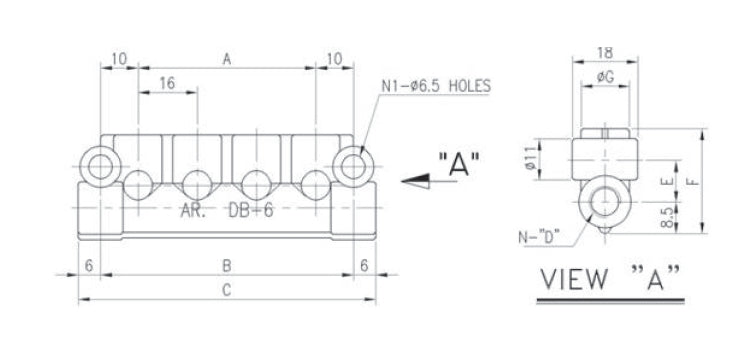

DB-3M drawing

DB-3M drawing

Related models

Downloads

Specifications from Aryung's catalog. Confirm details with us before ordering.
