Aryung Suction Filter ASF-22L100 for ACP-2500HMFS 85/100

Aryung Suction Filter ASF-22L100 for ACP-2500HMFS 85/100

Brand: Aryung
SKU: ASF22L100
Availability: Backorder (estimated delivery: 30 Days)
Product type: Suction Filter
Request for Quote

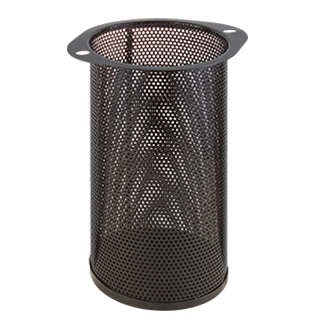

The Aryung ASF-22L100 is a suction filter that mounts on the intake of an Aryung submerged coolant pump. It keeps chips and sludge out of the pump, which extends pump life and helps hold machining accuracy. It installs and comes off easily for cleaning or replacement.

Fits: ACP-2500HMFS 85/100, 1800BMF.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

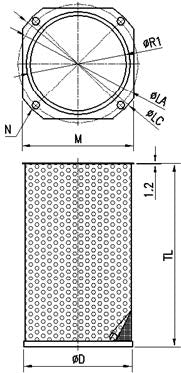

Dimensions (figure 4)

Aryung ASF suction filter, figure 4 dimensions

Type ØD ØR1 ØTL ØLA ØLB ØLC M N
ASF-22L100 194 186 248 215 - 236 200 4-Ø14

Dimensions in mm.

Downloads

Dimensions from Aryung's 2026 coolant pump catalog. Confirm the fit for your pump with us before ordering.
