Aryung Suction Filter ASF-400HL28 for ACP-400HF28

Aryung Suction Filter ASF-400HL28 for ACP-400HF28

Brand: Aryung
SKU: ASF400HL28
Availability: Backorder (estimated delivery: 30 Days)
Product type: Suction Filter
Request for Quote

The Aryung ASF-400HL28 is a suction filter that mounts on the intake of an Aryung submerged coolant pump. It keeps chips and sludge out of the pump, which extends pump life and helps hold machining accuracy. It installs and comes off easily for cleaning or replacement.

Fits: ACP-400HF28, 600HF28.

Built to order: made by Aryung in Korea and ships in about 30 days. Request a quote for price and lead time, or call 847-466-5459.

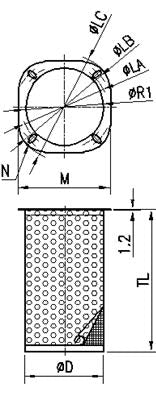

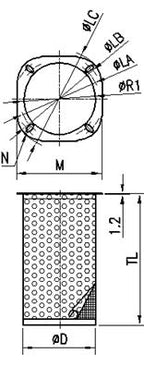

Dimensions (figure 1)

Aryung ASF suction filter, figure 1 dimensions

Type ØD ØR1 ØTL ØLA ØLB ØLC M N
ASF-400HL28 156 154 286 180 186 210 177 4-Ø12

Dimensions in mm.

Downloads

Dimensions from Aryung's 2026 coolant pump catalog. Confirm the fit for your pump with us before ordering.
