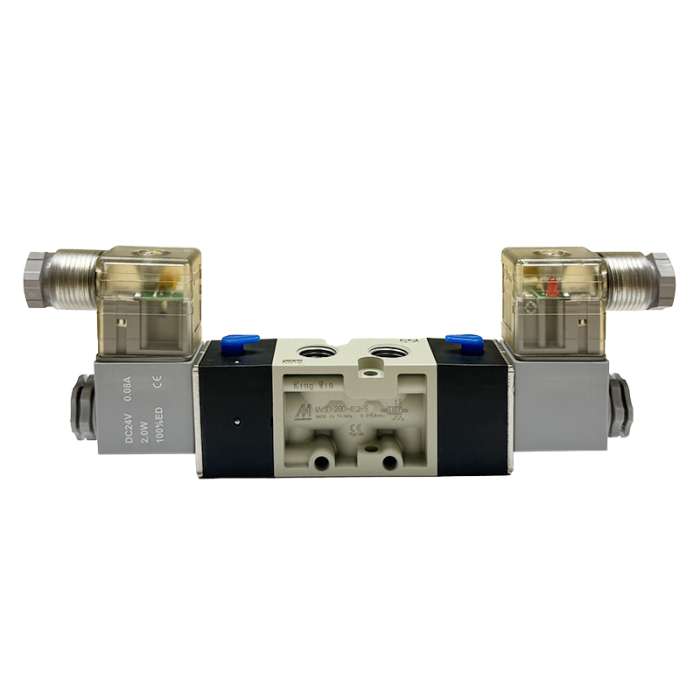

Part : Solenoid Operated Directional Valve
Part Number : MVSD-260-4E2-DC24-L-S
Type : ATC Up-Down
Specifications : DC24V, 0.08A, 2.0W, DC24V
Applicable machine tools model: FFGDMC, DMC DT 32CD, DM 40V, DM 50V, DM 52V
Manufacturer : Mindman
Product Description
Discover the Mindman MVSC‑260 series compact pneumatic solenoid valves: 5‑port, 4‑way directional control, 8 mm bore, 1/4″ ports. Operating at 0.2‑0.8 MPa (up to 1 MPa proof pressure), with fast 40 ms response, multiple voltage options (AC/DC), external pilot capability, energy‑saving coils, and manifold mounting compatibility. Ideal for efficient industrial air control.
Stable Operation
Due to the powerful magnetic and spring force of the solenoids, these valves exhibit a high tolerance to contaminants and especially stable operation.
IP65-equivalent High Dust- & Water-proof
These valves demonstrate excellent dust- and water-proof characteristics, in compliance with I. E. C. Pub. 529. IP65 and JIS C0920 IP65 (dust- and jet-proof type).
Usable In Products Of Various Standards
These standard valves are CE certified for installation in equipment overseas. UL/CSA certified products are also available.
Product Specifications
| Specifications | |
| Valve Type | Solenoid |
| Model Number | MVSD-260-4E2-DC24-L-S |
| Port size | 1/4 |
| No. of position | 2 |
| Operating pressure range | 0.2~0.8 Mpa |
| Proof pressure | 1 MPa |
| Approx. Weight | 3.2 kg |
