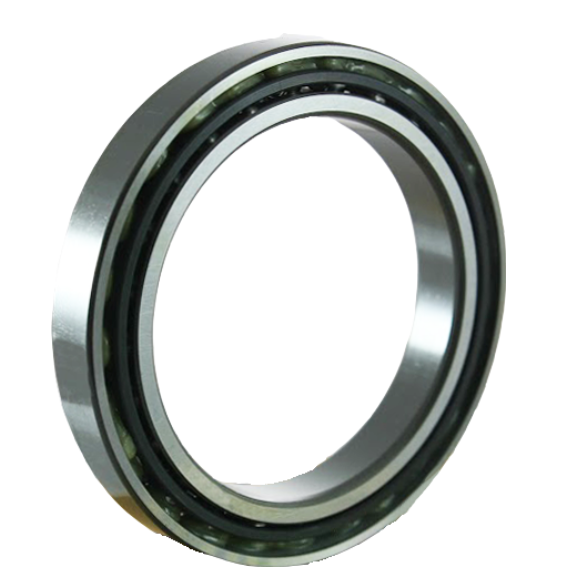

Parts : Angular Contact Bearing
Part Number : 2MM9124WICRSUL (5917024AT01NS)
Dimensions : 120 mm x 180 mm x 28 mm
Manufacturer : Timken
Categories:
Product Description
Timken angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction.
Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance.

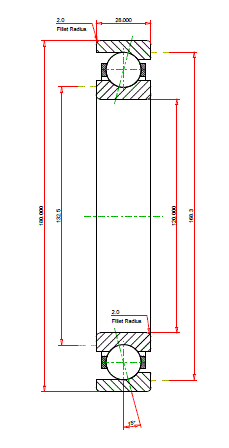

Product Specifications
| Specifications | ||
| Dimensions | d | 120 mm |
| D | 180 mm | |
| B | 28 mm | |
| Contact | 15 ° | |
| do | 17.46 mm | |
| Basic Load Ratings | Limiting Speed (Grease) | 6900 rpm |
| Limiting Speed (Oil) | 13800 rpm | |
| Specifications | R Inner Ring | 2.0 mm |
| r Outer Ring | 2.0 mm | |
| da Inner Ring | 132.5 mm | |
| Da Outer Ring | 168.3 mm | |
| Product Name | Timken Angular Contact Bearing 2MM9124WICRSUL |
|---|---|
