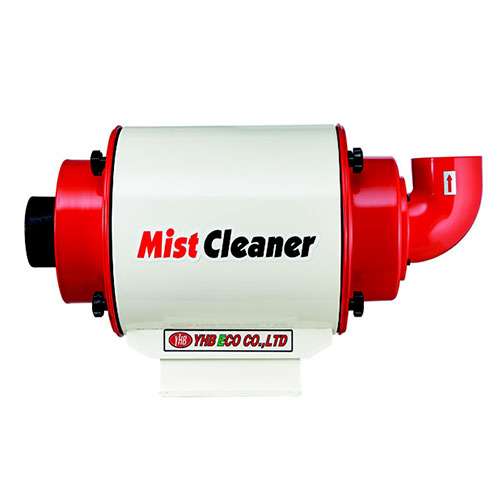

YHB Mist Cleaner YMC-400
Part : YHB Mist Cleaner
Manufacturer Part Number : YMC-400
Manufacturer : YHB ECO
Categories:
Product Description
IndustryNest is the official U.S. branch of YHB Eco Co., Ltd., a leading manufacturer of oil mist collectors. Most of YHB Eco oil mist collector models and replacement filters are available in stock at our Northbrook, IL warehouse for fast and reliable delivery across the United States.
YHB ECO’s oil mist cleaner holds the number one market share in South Korea and is widely used by leading machine tool manufacturers in Japan and South Korea.
These mist cleaners are designed for easy installation on existing machine tools, utilizing advanced centrifugal force and filter technology to achieve 99.8% dust collection efficiency.
YMC Type: Water-Soluble Cutting Oil
• Optimized for water-soluble cutting oil
• Standard model
• Easy to install and ideal for on-site machine tools
Product Specifications
| MODEL | YMC-400 |
| POWER | 3Phase 220V / 380V / 440V (50/60Hz) |
| Motor(Kw) | 1.5 |
| Ampere(A) | 6.5/3.7/3.3 |
| RPM | 3450 |
| Wind Flow Rate(㎥/min) | 25 |
| Static Pressure(mmAq) | 170 |
| Noise(dB) | 70±2 |
| Collection Rate(%) | 99.80% |
| inlet, Outlet(Ø) | 150 |
| Weight(kg) | 55 |
| Filter Material | POLYESTER |
* Installation of filter decreases the air flow by about 8%.
* The above specification is based on 60Hz. When 50Hz is applied, the air flow volume decreases by about 20%.
External Dimensions
| MODEL | A | B | C | D | E | F | G | H | I | J |
| YMC-400 | 452 | 595 | 280 | 320 | 360 | 400 | Ø150 | 480 | 973 | 235 |
