How to change your mist cleaner filters

Step-by-Step Instructions to Replace Your YHB Eco Oil Mist Collector Filters.


Follow these easy step-by step instructions for a smooth filter exchange. All YHB Eco filter types are in stock at our Northbrook, IL, warehouse. If you have any questions during the process, please contact an IndustryNest technician for expert assistance.

How to exchange YHB YMC mistcleaner 1

    1. Datach YMC Oil mist cleaner from your machine tools. Loosen the knob nut.

How to exchange YHB YMC mistcleaner 2

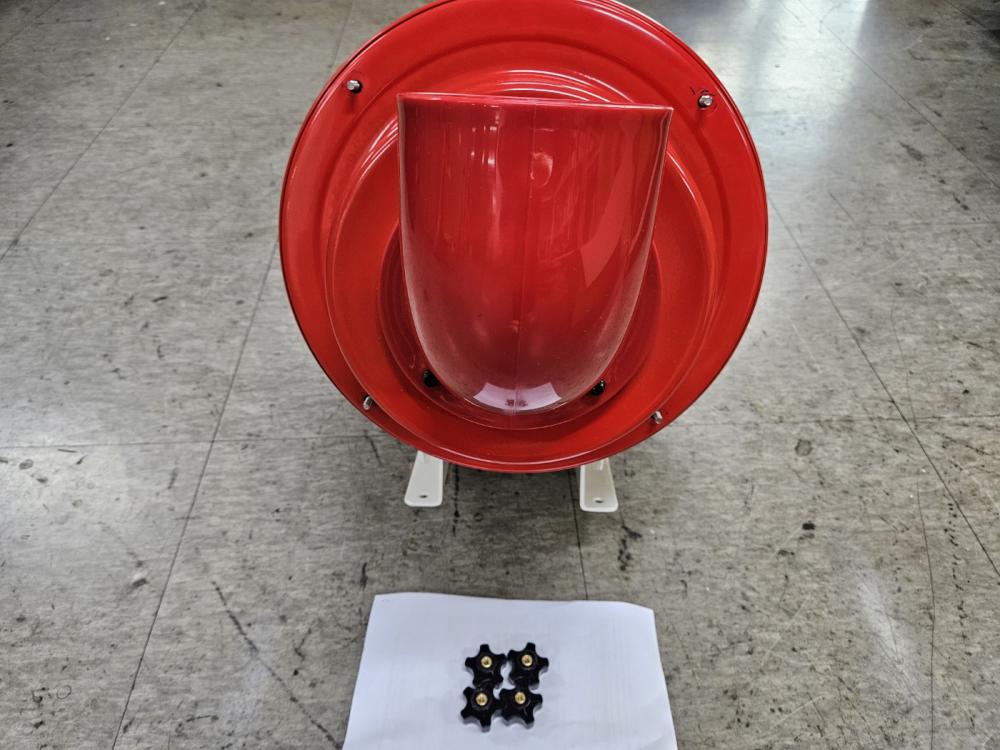

   2. Remove the knob nut.

How to exchange YHB YMC mistcleaner Step 3

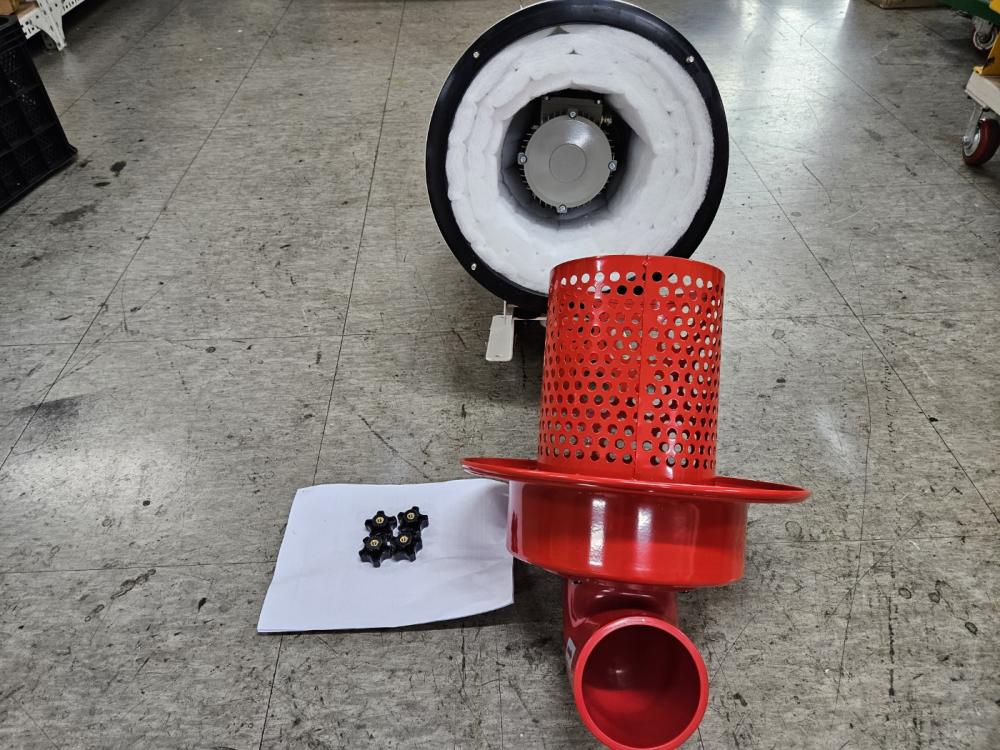

  3. Remove the filter holder.

How to exchange YHB YMC mistcleaner Step 4

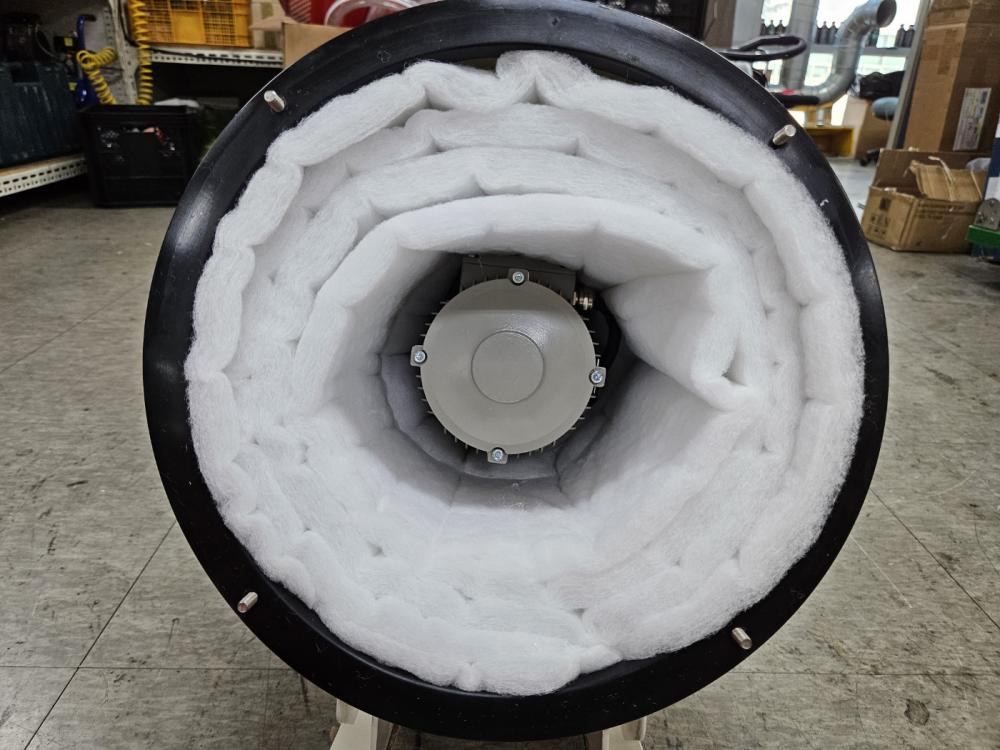

  4. Remove the triple filter.

How to exchange YHB YMC mistcleaner Step 5

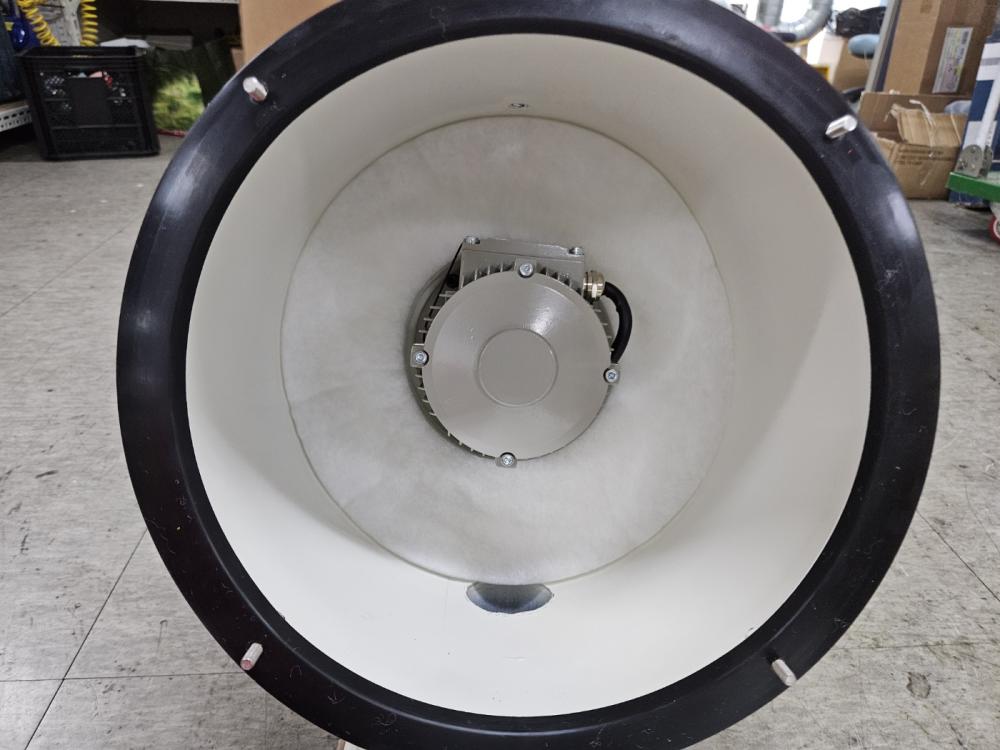

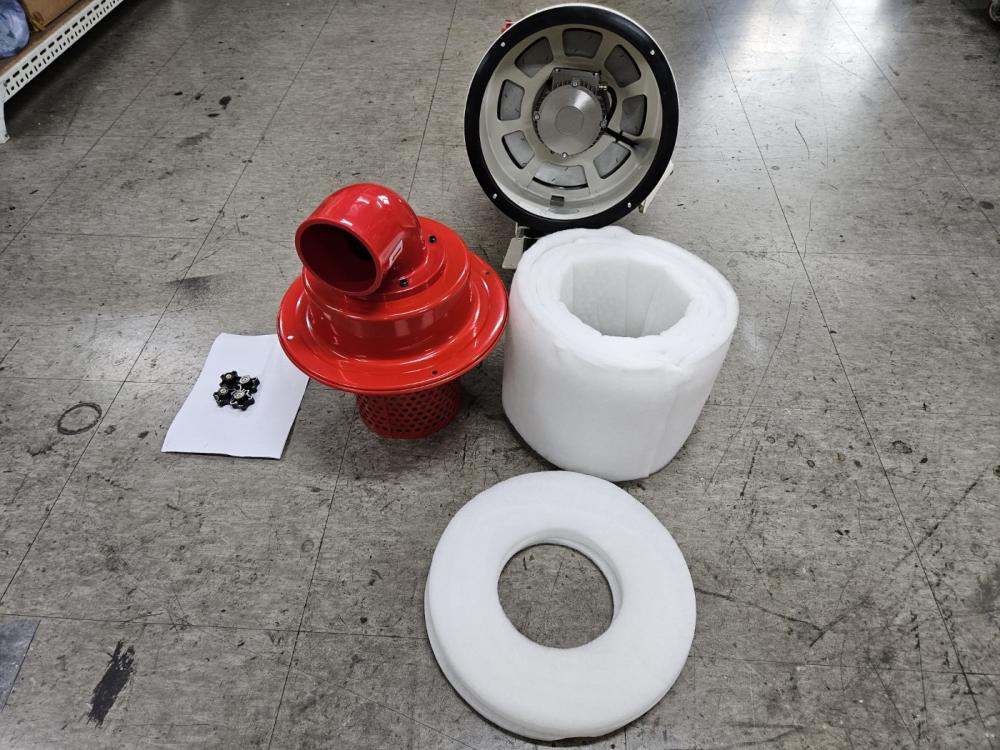

  5. Remove the sealing (donut-shaped) filter.

How to exchange YHB YMC mistcleaner Step 6

  6. Insert the donut-shaped filter in reverse order.

How to exchange YHB YMC mistcleaner Step 7

  7. Insert the triple filter in reverse order.

How to exchange YHB YMC mistcleaner Step 8

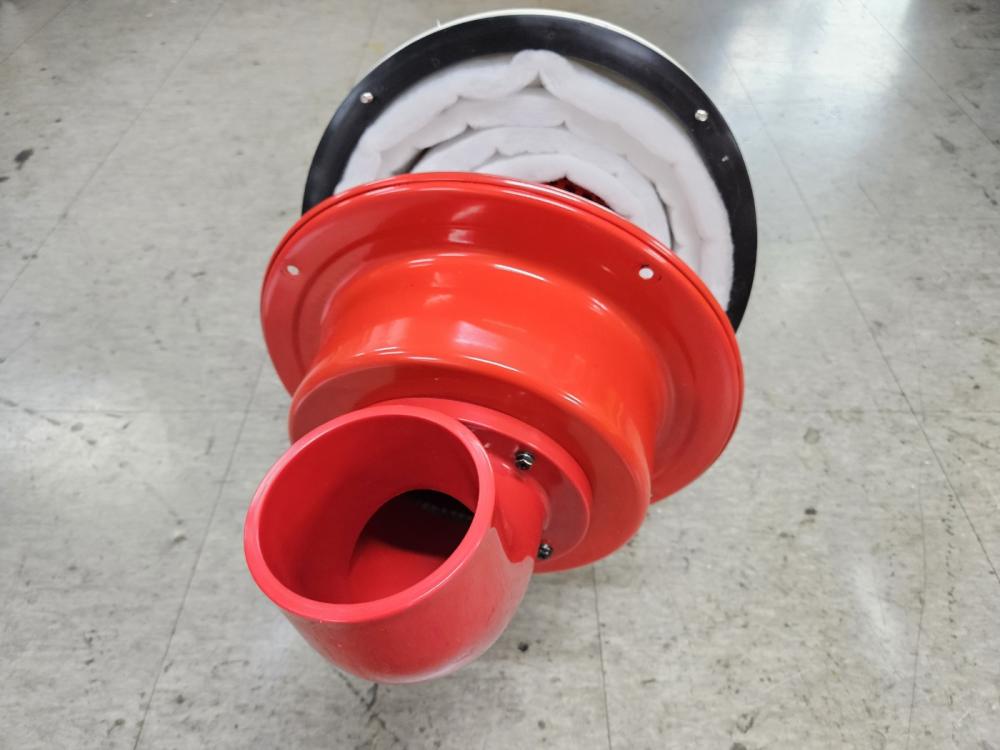

   8. Insert the filter holder in reverse order.

How to exchange YHB YMC mistcleaner Step 9

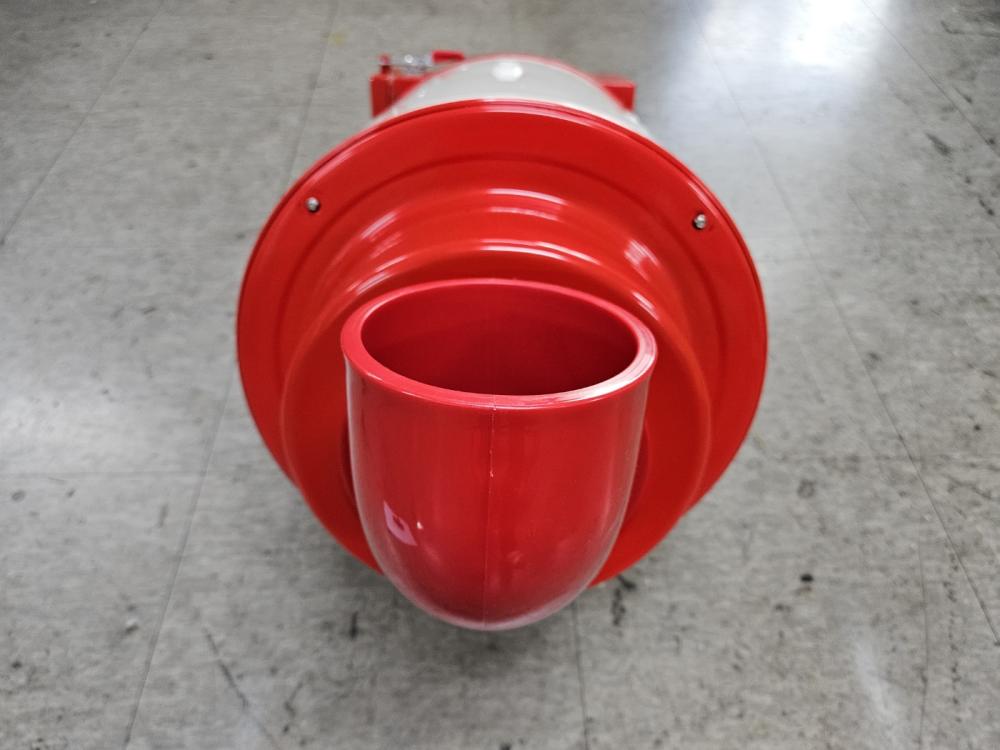

  9. Secure the knob nut in reverse order.

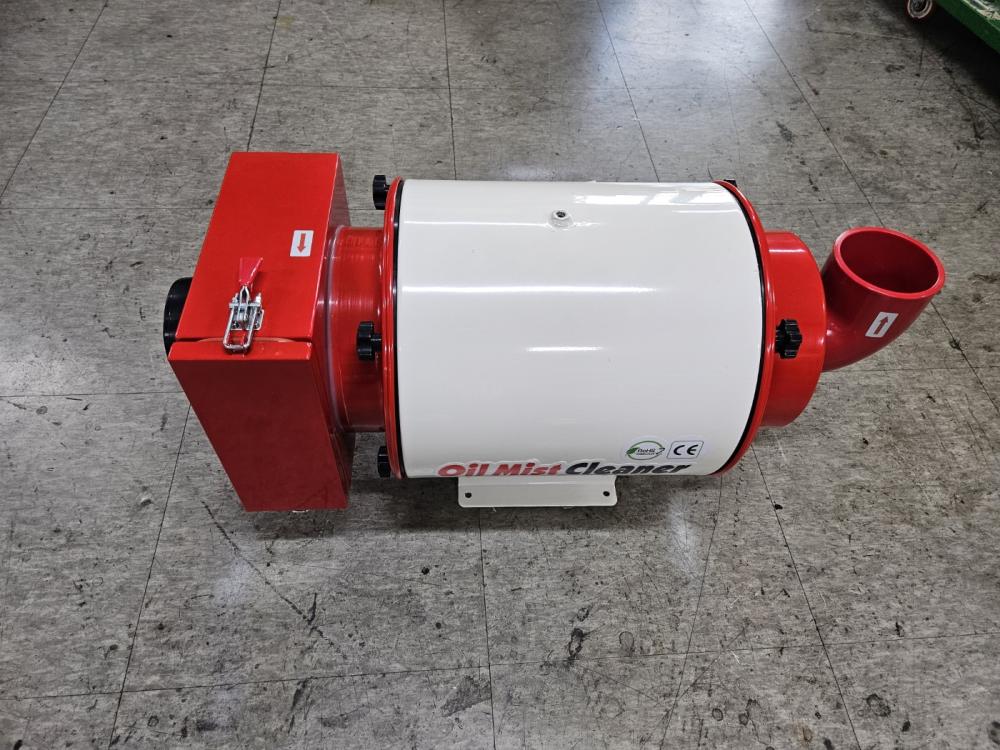

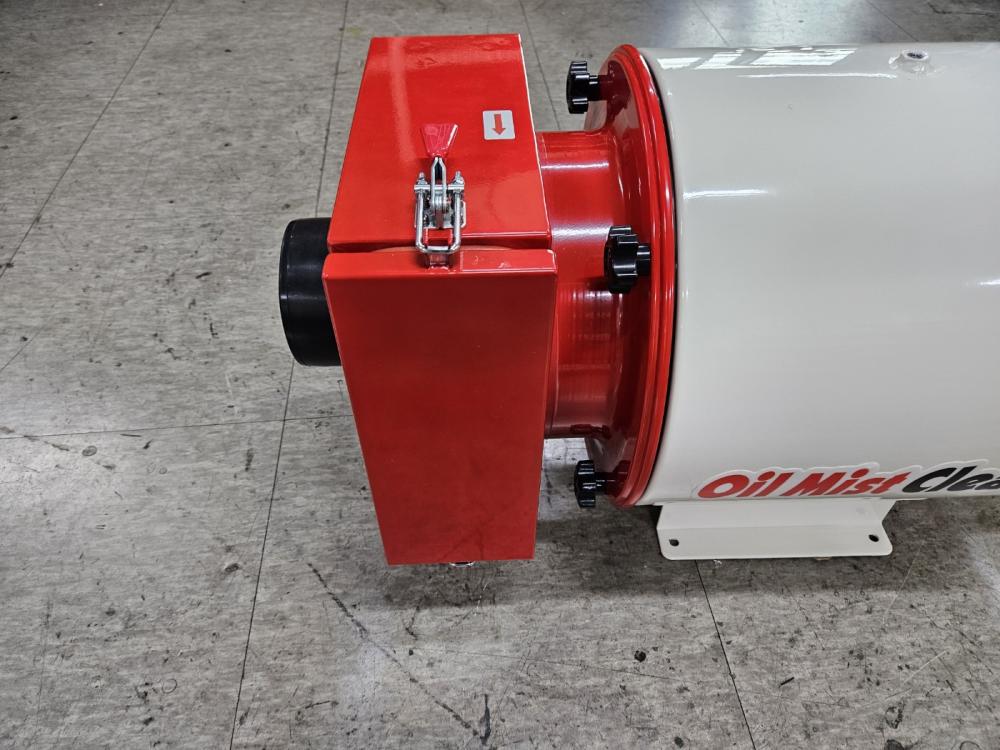

Additional Instructions for YOC Type (Chip Separator): Chip Separator (YOC Type)

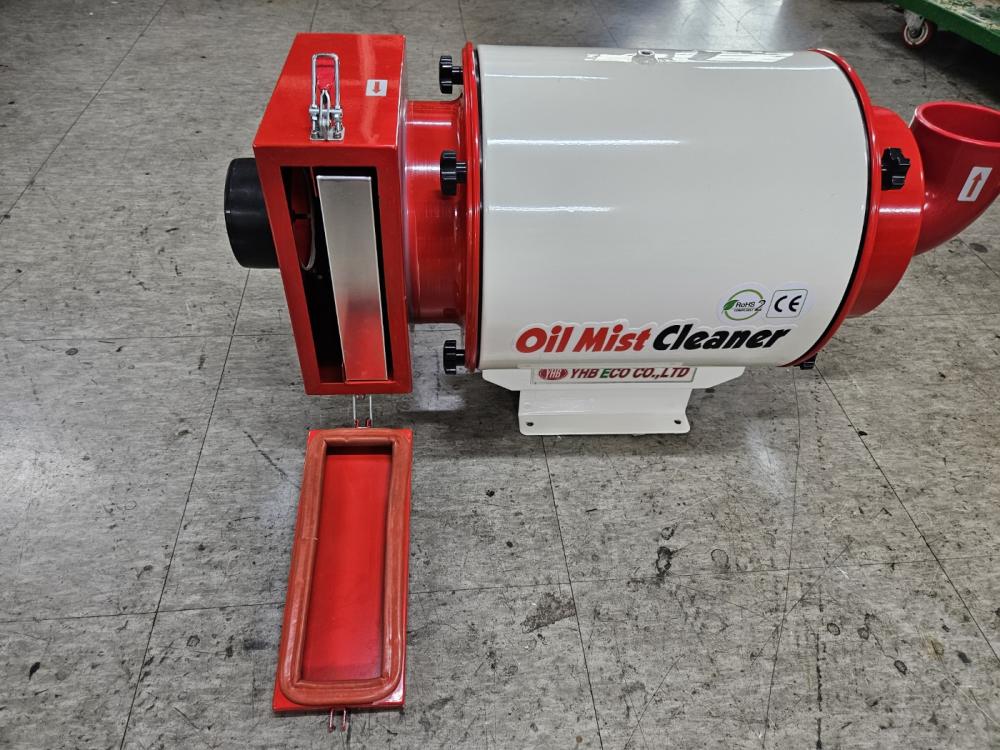

   1. Remove the chip separator cover.

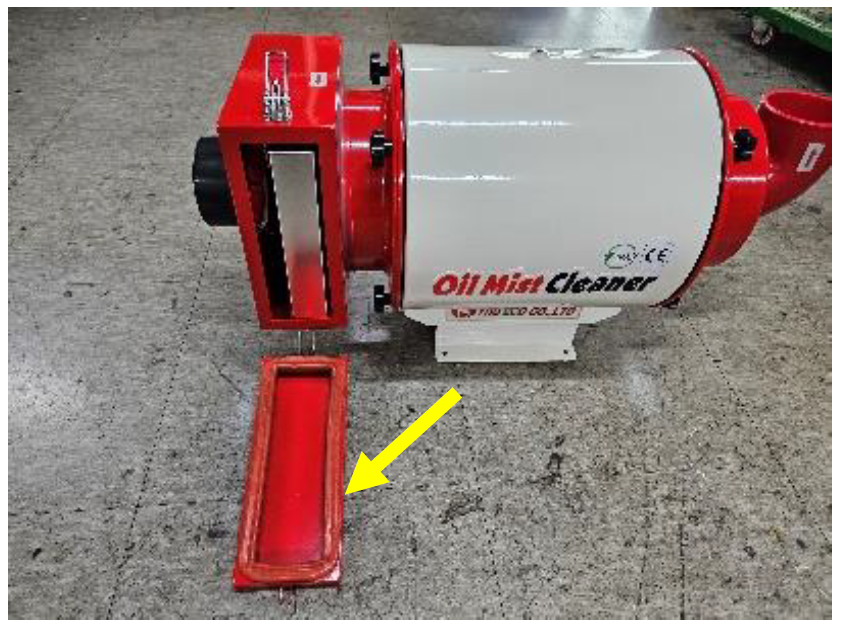

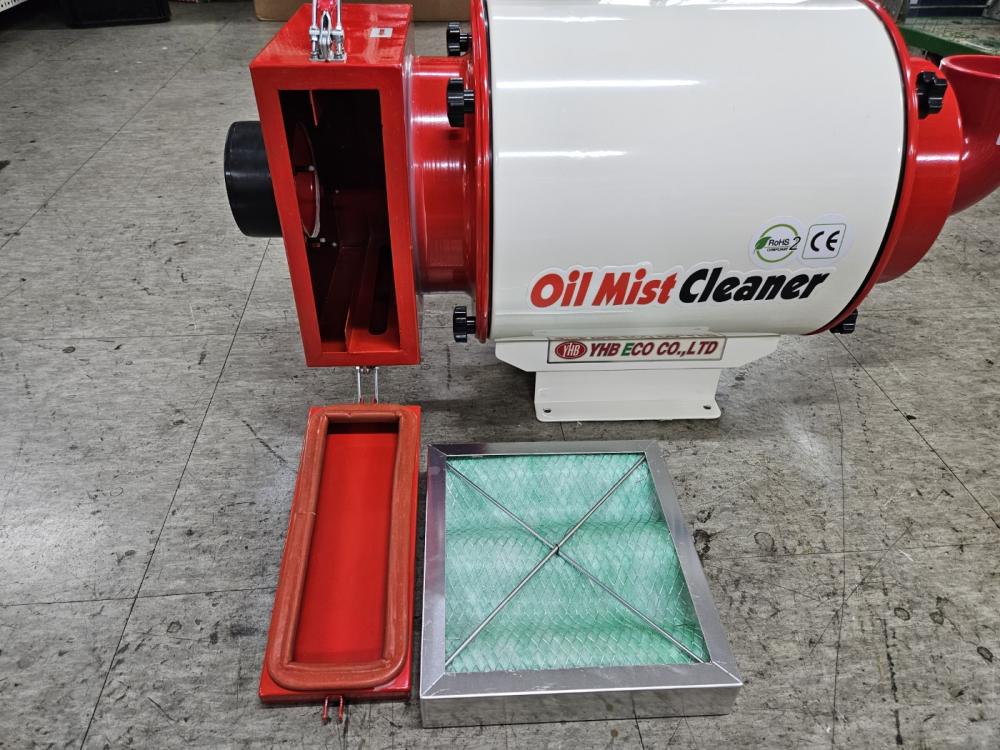

   2. Take out the glass filter.
   3. Insert it in a perforated area facing downward.
   4. Close the cover.
