Availability: Shipping directly from South korea. Import duties are included.
Estimated Delivery: 21 Days
SKU
4065321809DW02
$1,621.82
Part : Axial Driven Tool Holder
Specifications : ER32 (Ø3~Ø30)
Max Torque : 50Nm
Max RPM : 5,000 RPM
Manufacturer : EWS Korea
Machine Type : DMC DL25M, DMC DL35M, FFGDMC DL25M, FFGDMC DL35M
Categories:
Product Description
The tool holder is fixed to the turret and tooling is completed by simply changing the adapter. All of the tool changes are solved with one click. It has a high cutting torque transfer capability and the adapter can be fixed only by thrust. There is no risk of losing the fasteners when changing the tool.
Product Specifications
| Specifications | MAX Torque | Max RPM |
| ER32 (Ø3~Ø30) | 50Nm | 5,000 RPM |

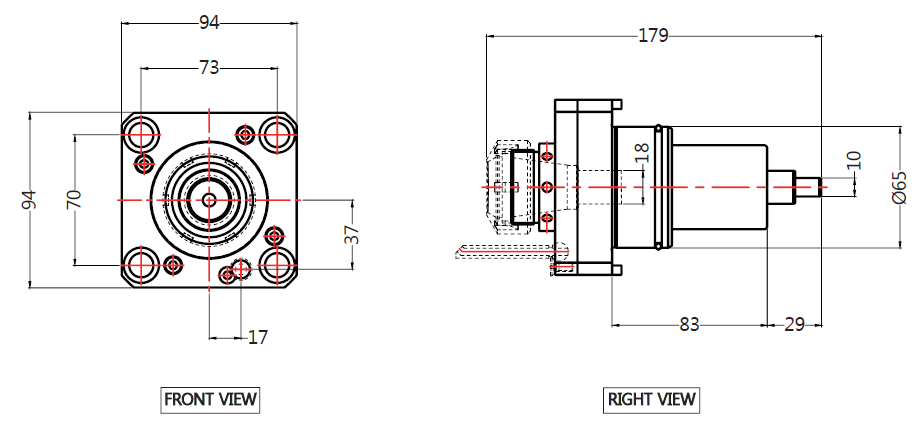

Product Drawing
| Availability | Shipping directly from South korea. Import duties are included. |
|---|---|
| Estimated Delivery | 21 Days |
| Shipping For Product | 200.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | ASM enterprise |
| Enable Request a Quote | No |
